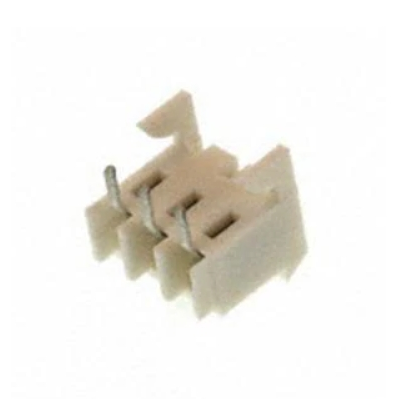

09-48-3035PCB Headers and ReceptaclesKK 396 PC Board Connector MOLEX
Short Description:
KK 396 PC Board Connector
Right Angle
Polyester Connector
Gold (Au) Selective
3 Circuits
Product Detail
Product Tags
The Molex 09-48-3035 is a high-performance PCB receptacle from the KK 396 series, engineered for secure electrical connections in space-limited applications.
Key Specifications
Contact System: Brass female sockets with 0.38μm gold plating for superior conductivity and corrosion resistance in harsh environments.
Termination: Through-hole soldering ensures robust PCB attachment.
Locking Mechanism: Integrated friction lock prevents accidental disconnections during vibration.
Housing: Durable polyester material (white/natural color) with UL 94V-0 flammability resistance.
Orientation: Right-angle PCB mount maximizes space savings in compact designs.
Data Overview
| Circuits (Loaded) | 3 |
| Color - Resin | Natural |
| Material - Metal | Brass |
| Flammability | 94V-0 |
| Material - Plating Termination | Tin |
Contact Features
| Circuits (maximum) | 3 |
| Material - Plating Mating | Gold |
| Material - Resin | Polyester |
| Orientation | Right Angle |
| Packaging Type | Tray |
