1-967657-1 MQS series wire-to-board PCB Mount Header
Short Description:
Model number：1-967657-1
Brand：TE
Mounting Type：Through Hole
Connection type：Wire to Board
Type:electron component
Application:automotive
Unit price：Contact us for latest quotation
Product Detail
Product Tags
Manufacturer:TE Connectivity
Product Model：1-967657-1
PCB Mount Orientation : Horizontal
Termination Method to PCB : Through Hole - Solder
Connector Shape :Rectangular
onnector Product Type :Connector Assembly
Connector & Contact Terminates To :Printed Circuit Board
Connector Type：Wire-to-Board Header
Positions：4 (2 rows)
Pitch：2.00mm
Mounting Style：Through-Hole (THT)
Contact Plating：Tin (Sn)
Current Rating ：3A per contact
Voltage Rating ：2V-8V
Operating Temperature：-40°C to +105°C
Housing Color：Black
Compliance：EuroHS/ELV compliant
Data Overview
| PCB Mount Orientation | Horizontal |
| Termination Method to PCB | Through Hole - Solder |
| Sealable | No |
| Centerline (Pitch) | 3.1 mm [ .122 in ] |
| Connector System | Wire-to-Board |
Contact Features
| Connector Shape | Rectangular |
| Header Type | Fully Shrouded |
| Mixed & Hybrid Header | No |
| Connector Product Type | Connector Assembly |
| Connector & Contact Terminates To | Printed Circuit Board |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

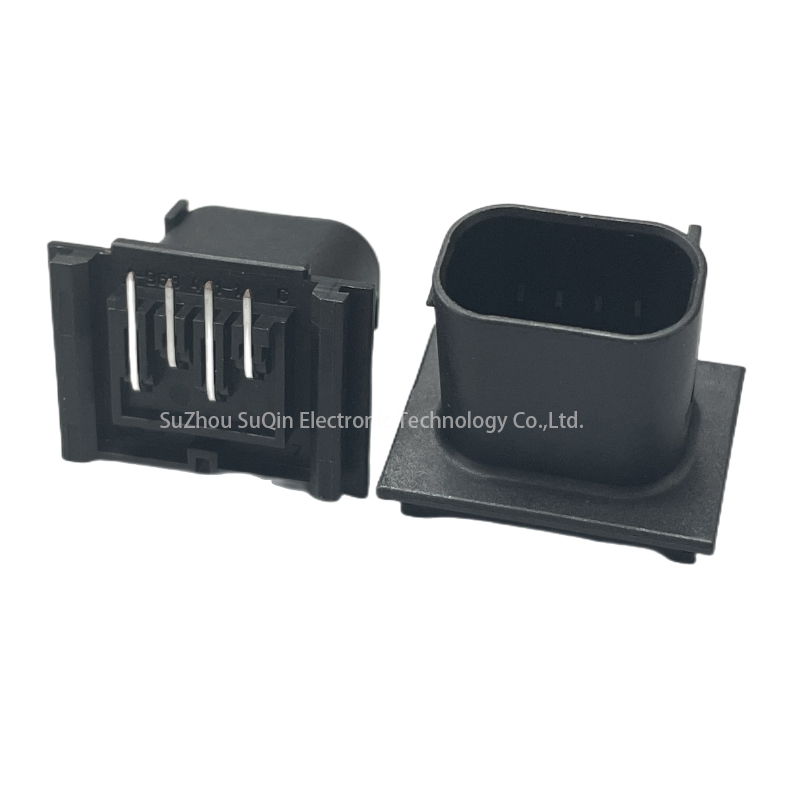

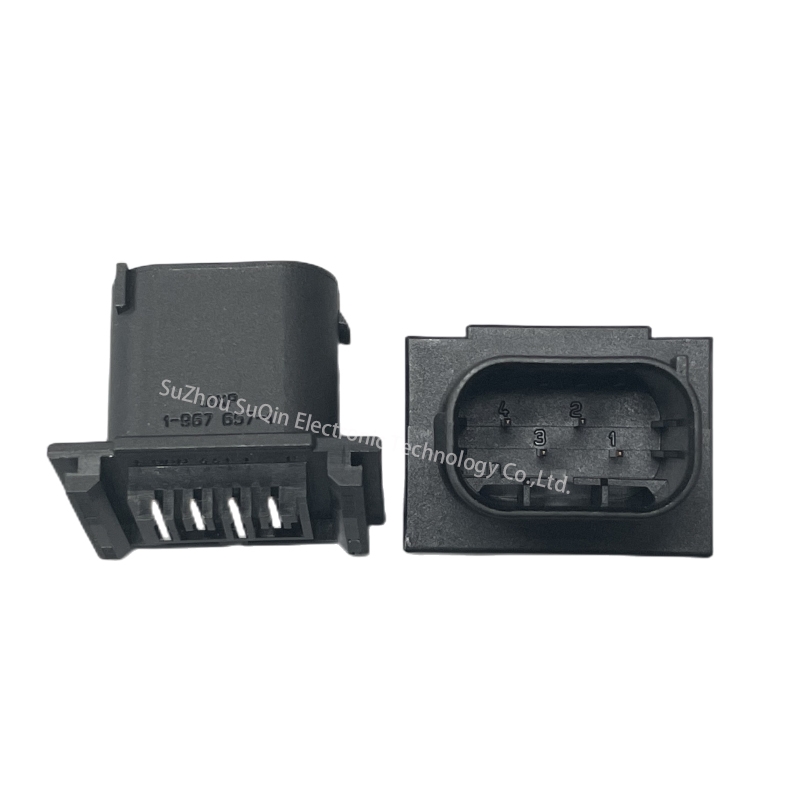

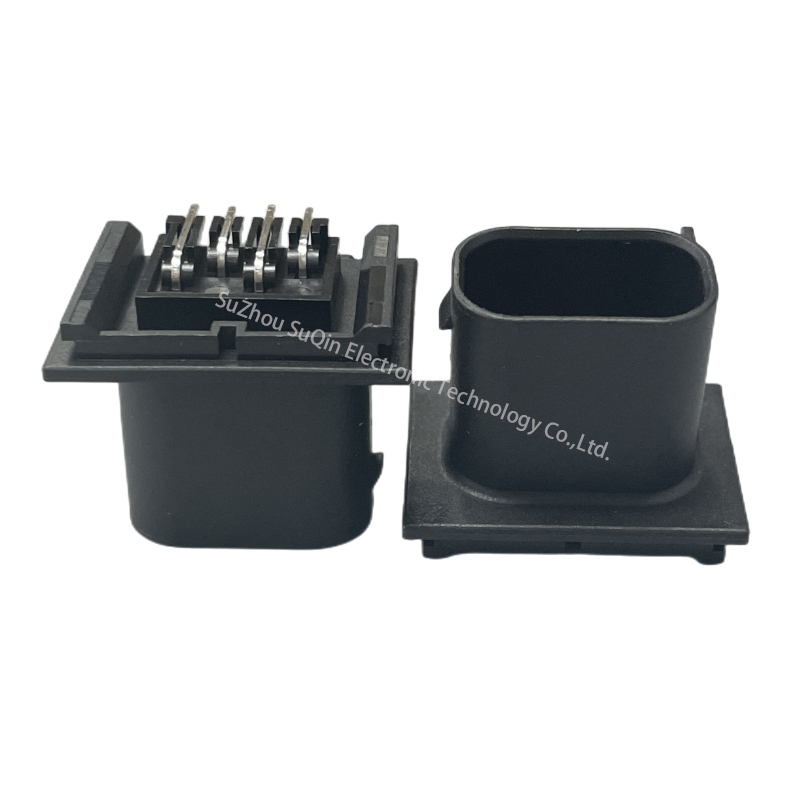

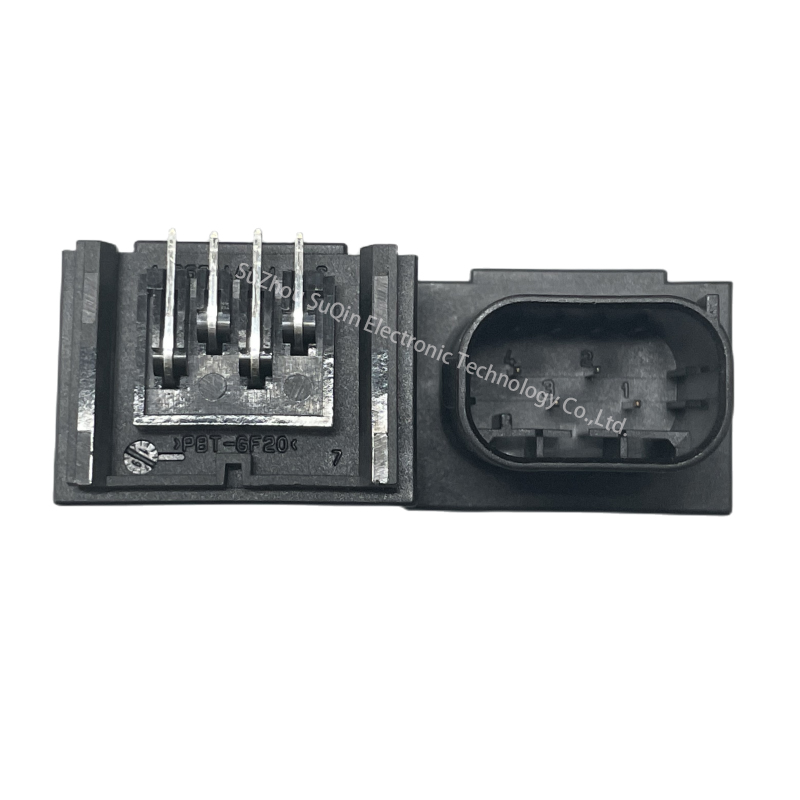

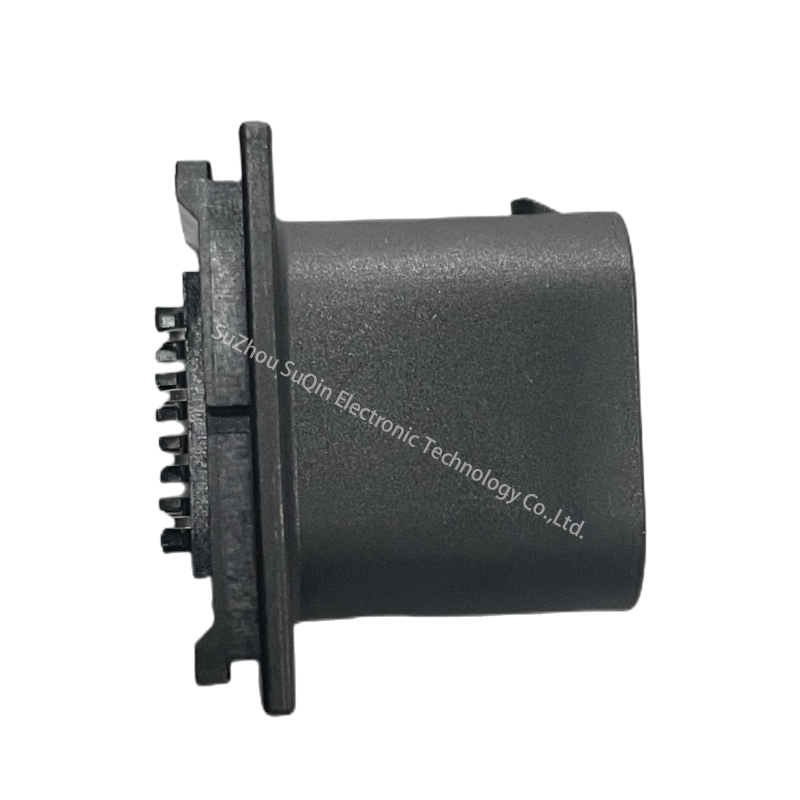

Product Display
