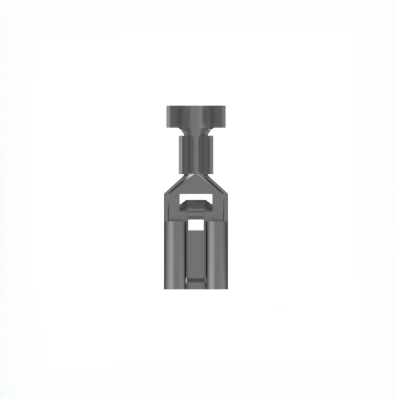

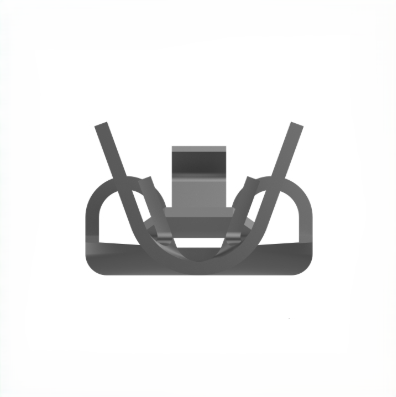

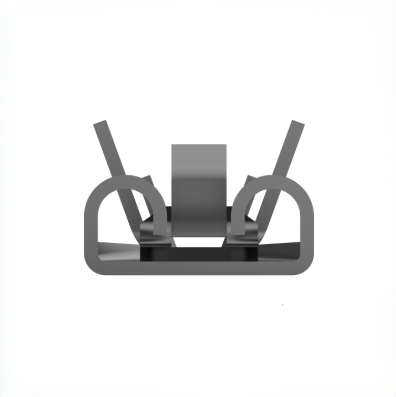

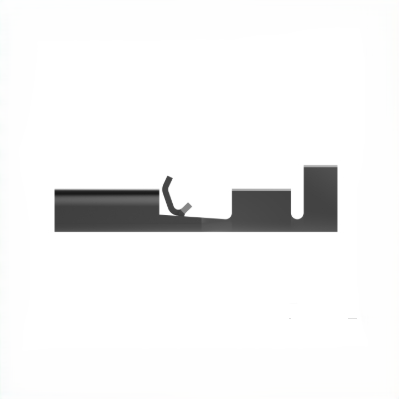

1217113-2 TE Connectivity AMP Quick Disconnect Receptacle, Uninsulated, 22 – 18 AWG,F-Crimp, Brass
Short Description:
Quick Disconnect Terminal Type : Receptacle
Wire Size (AWG): 22 – 18
Wire Size (mm²): .32 – .82
Terminal Orientation :Straight
Contact Base Material :Brass
Terminal Plating Material :Tin
Crimp Type :F-Crimp
Product Detail
Product Tags
TE Connectivity 1217113-2 Quick Disconnect Receptacle
Connector Type:Uninsulated Quick Disconnect Receptacle
Contact Gender:Female (F-Crimp)
Wire Compatibility:22-18 AWG (0.32-0.82 mm²)
Tab Dimensions:0.187"×0.020"×0.255" (4.75×0.51×6.48mm)
Material:Brass with Tin Plating
Current Rating :19A at 20°C (derated per UL310)
Operating Temp:-40°C to +110°C
Data Overview
| Quick Disconnect Terminal Type | Receptacle |
| Wire Size (AWG) | 22 – 18 |
| Wire Size (mm²) | .32 – .82 |
| Mating Tab Width | 4.75 mm [ .187 in ] |
| Mating Tab Thickness | .51 mm [ .02 in ] |
Contact Features
| Terminal Features | Wire Stop |
| Insertion Force | Normal |
| Connection Capacity | Single |
| Compatible With Wire & Cable Type | Discrete Wire |
| Crimp Type | F-Crimp |
