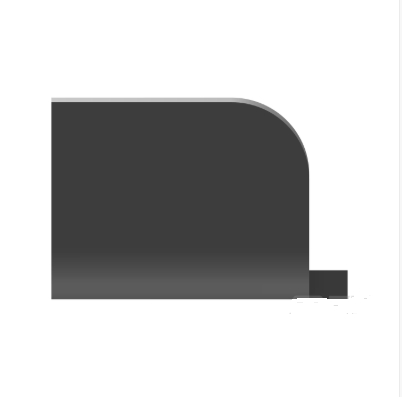

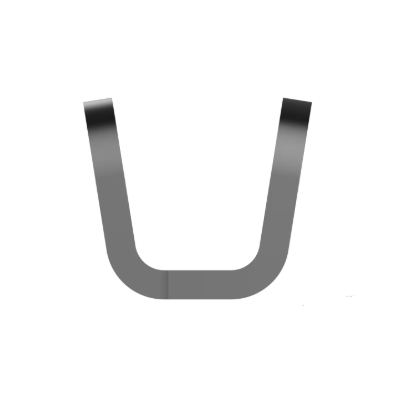

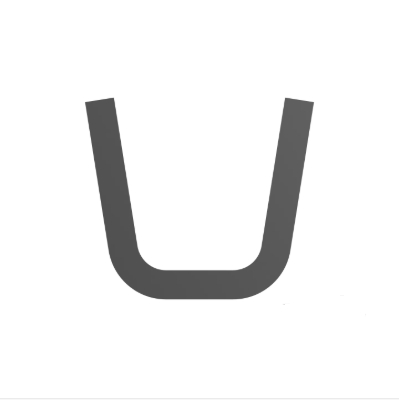

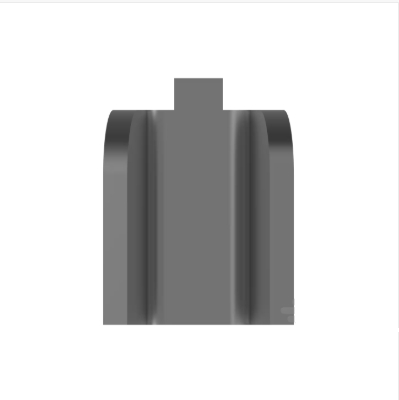

62309-2 Electrical Wire Pigtail Splice TE
Short Description:
Pigtail Splice
13.5 – 10 AWG
2.6 – 4.9 mm² Wire
5000 – 10000 CMA
Uninsulated
3 Splice Capacity
Serrated
Brass
9 Serration
AMPLIVAR
Product Detail
Product Tags
TE Connectivity 62309-2 AMPLIVAR™ Pigtail Splice.Key Features,High-Capacity Termination: Accommodates 3-wire splices within industrial cable bundles.Serrated Brass Barrel: Ensures vibration-resistant gas-tight compression for stranded copper conductors.Optimized Wire Range: Supports 13.5-10 AWG (2.6-4.9 mm²) cables common in industrial power distribution.AMPLIVAR™ Series Compatibility: Designed for seamless integration with TE’s connector systems.
Data Overview
| Splice Type | Pigtail Splice |
| Wire Size (AWG) | 13.5 – 10 |
| Wire Size (mm²) | 2.6 – 4.9 |
| Sealable | No |
| Splice Capacity | 3 |
Contact Features
| Compatible With Discrete Wire Type | Magnet Wire | Solid |
| Strip Orientation | End Feed |
| Splice Features | Splice Features |
| Terminal Plating Material | Tin |
| Operating Temperature Range | -65 – 150 °C [ -85 – 302 °F ] |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
