1393366-1 Receptacle Terminal Get .64 Connector System TE
Short Description:
TE Internal : 1393366-1
All GET .64 CONNECTOR SYSTEM, RECEPT AND TAB (24)
Terminal Type : Receptacle
Wire Size (AWG): 20 – 18
Wire Size (mm²): .5 – .75
Mating Tab Width : 1 mm [ .039 in ]
Interface Plating : Tin (Sn)
Product Detail
Product Tags
Receptacle Terminal, 20 – 18 AWG, .5 – .75 mm² Wire, 1 mm [.039 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness
Introduce
TE Connectivity 1393366-1 Receptacle Terminal (GET .64 System): Tin-plated brass terminal for 0.64–2.5mm² wires, USCAR-2/IP6K9K-certified (-40°C to +150°C), designed for vibration-resistant automotive and industrial connections, featuring a low 30μΩ contact resistance and tool-less secondary lock for secure 48V battery/ADAS harness assembly.
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | .64mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 11 |
| Terminal Type | Receptacle |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

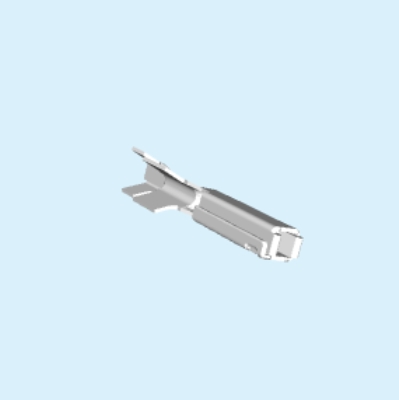

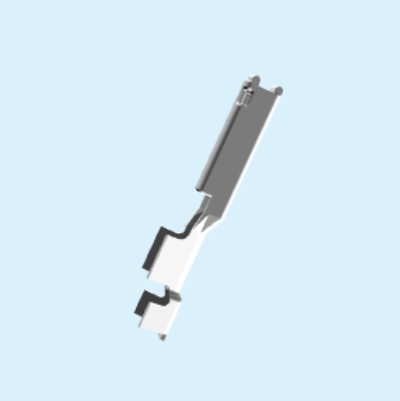

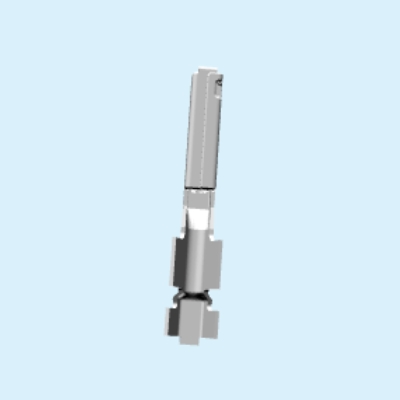

Product Display
