1564980-1 Crimp type non-insulated terminal connectors
Short Description:
Model number：1564980-1
Brand：TE
Application:automotive
Terminal type：Crimp
Mounting Type：Free Hanging (In-Line)
Unit price：Contact us for latest quotation
Product Detail
Product Tags
Manufacturer：TE Connectivity
Model Number：1564980-1
Product Type：Non-Insulated Crimp Terminal (Female Socket)
Application Field：Automotive electrical systems (e.g., wiring harnesses, ECUs, sensors)
Key Features：High-temperature resistance, crimp connection, compact design
Terminal Type ：Socket (Female)
Wire Gauge：24–22 AWG
Current Rating ：8 A
Voltage Range：Up to 9.5V
Operating Temp.：-40°C to +130°C
Contact Plating：Tin (Sn)
Termination Method：Crimp (F-type)
Packaging：Reel (Factory pack: 10,000 units)
Data Overview
| Terminal Type | Receptacle |
| Wire Size (mm²) | .22 – .35 |
| Mating Tab Width | 1.6 mm [ .063 in ] |
| Interface Plating | Tin (Sn) |
| Primary Locking Feature | Locking Lance |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.5mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 8 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

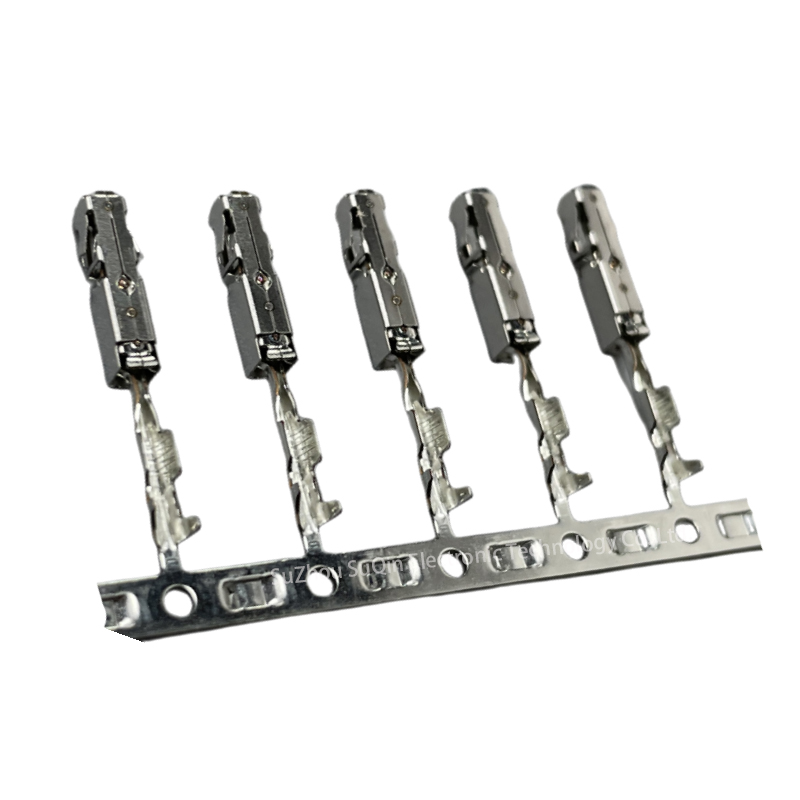

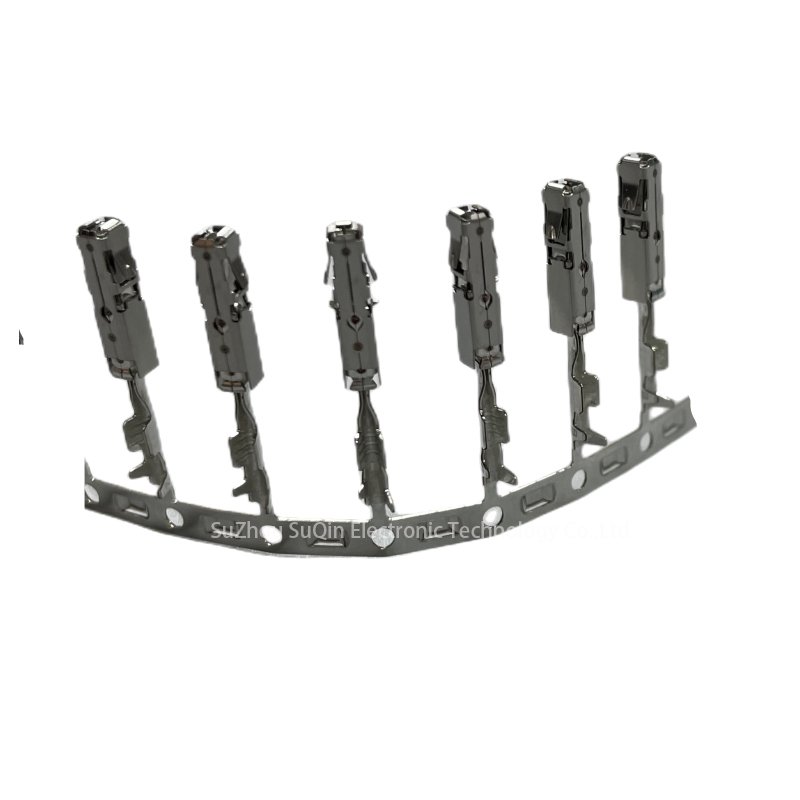

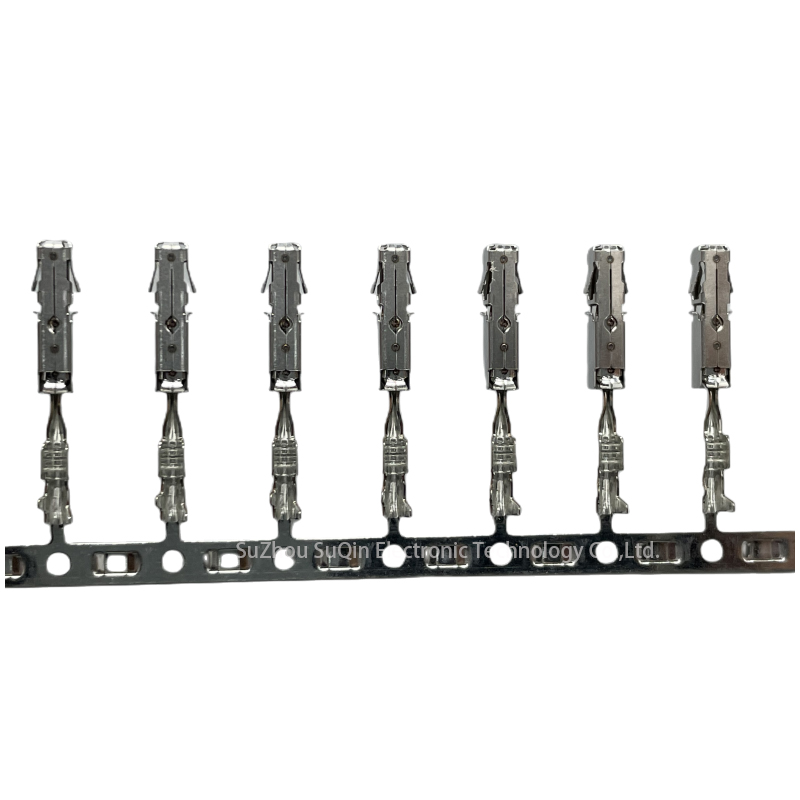

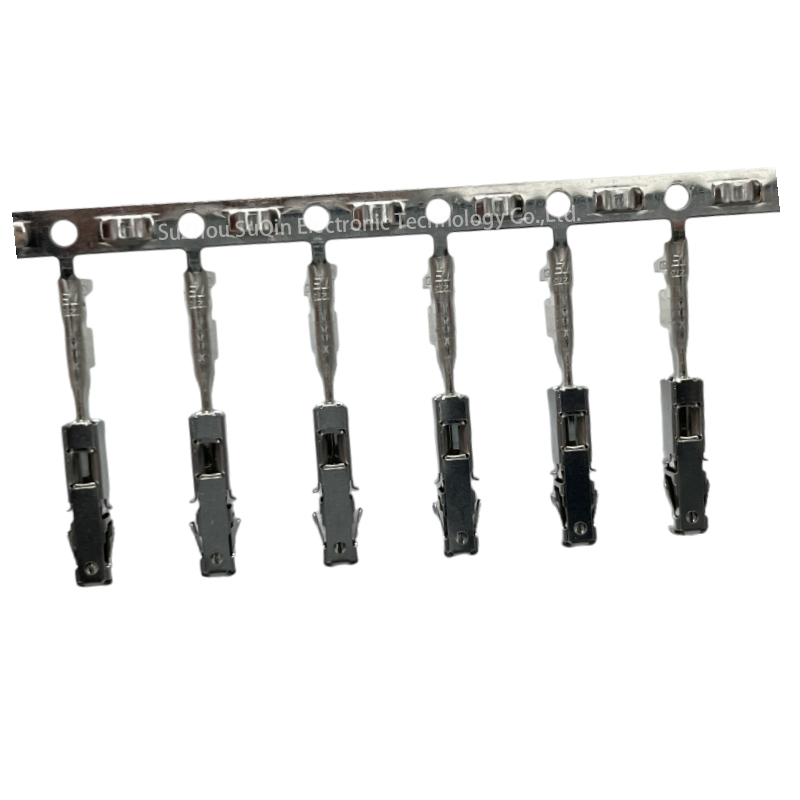

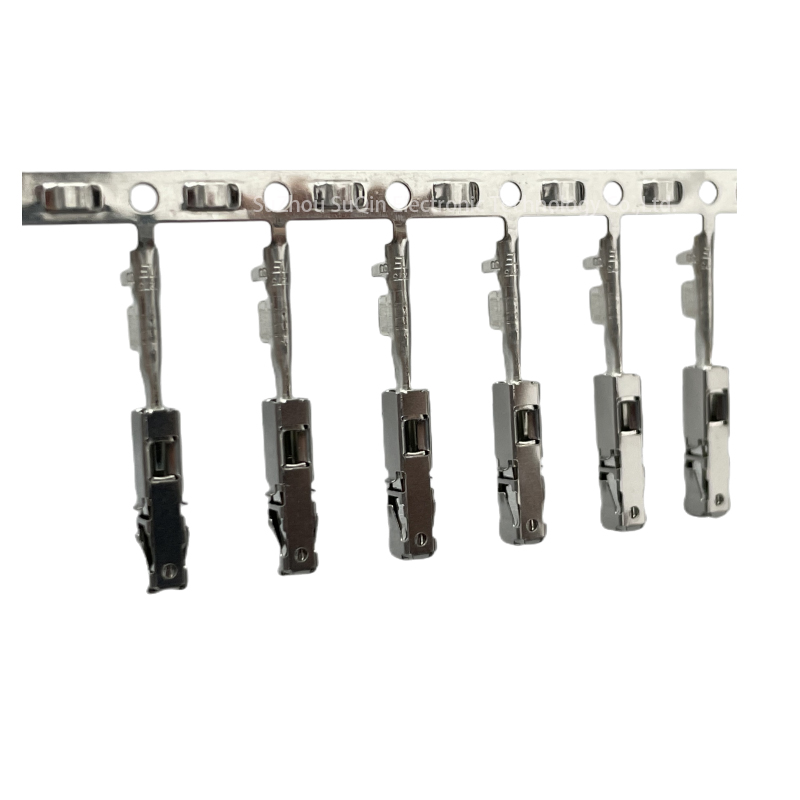

Product Display
