1601046-1Magnet Wire Terminals/Wire-to-Wire Magnet Wire Terminal TE
Short Description:
Wire-to-Wire Magnet Wire Terminal
34 – 18 AWG
.16 – 1.02 mm, Insulation Displacement (IDC)
22 – 18 AWG Lead Wire
.3 – .8 mm² Lead Wire
SIAMEZE
Product Detail
Product Tags

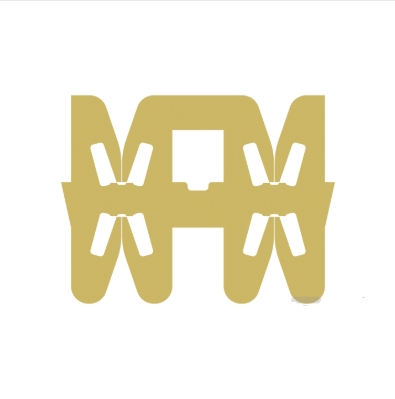

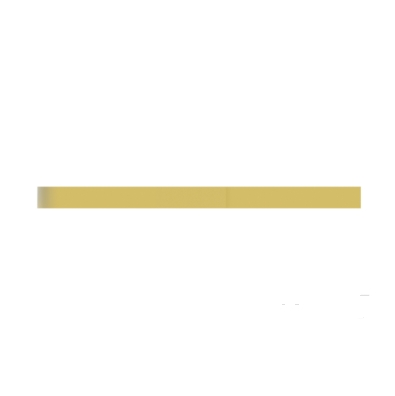

TE Connectivity 1601046-1 Magnet Wire Terminal
Uninsulated magnet wire terminal (wire-to-wire)
Compatible with 22–18 AWG magnet wire (0.3–0.8 mm²)
Brass body (unplated) for high conductivity and corrosion resistance
Crimp-style mounting for secure, vibration-resistant connections
RoHS & REACH compliant (lead-free, halogen-free <900 ppm)
Operating temperature: -40°C to +175°C (-40°F to +347°F)
Terminal height: 3.17 mm (0.125 in)
Max wire insulation diameter: 2.9 mm (0.115 in)
Data Overview
| Magnet Wire Terminal Type | Wire-to-Wire |
| Compatible Insulation Diameter (Max) | 2.9 mm [ .115 in ] |
| Compatible Insulation Diameter Range | 2.9 mm [ .115 in ] |
| Lead Wire Size (AWG) | 22 – 18 |
| Lead Wire Size (mm²) | .3 – .8 |
Contact Features
| Compatible With Discrete Wire Type | Magnet Wire & Lead Wire |
| Terminal Plating Material | Unplated |
| Terminal Orientation | Straight |
| Termination Method to Wire & Cable | Insulation Displacement (IDC) |
| Compatible With Wire Base Material | Copper |
