171662-1 Receptacle Terminal TE
Short Description:
TE Internal : 171662-1
TE Internal Description: E-J MK-2 070 REC CONT
Alias : 440-483784
Terminal Type : Receptacle
Wire Size (AWG): 20 – 16
Wire Size (mm²): .5 – 1.29
Mating Tab Width : 1.8 mm [ .071 in ]
Interface Plating : Tin (Sn)
Product Detail
Product Tags
TE Connectivity 171662-1 Receptacle Terminal: Vibration-resistant tin-plated brass terminal for 0.64–2.5mm² wires, USCAR-2/IP6K9K-certified (-40°C to +150°C), with dual-beam contact, 30A current rating, and tool-less secondary lock for automotive ADAS/ECU and industrial high-shock applications.
Data Overview
| Interface Plating | Tin (Sn) |
| Wire Size (AWG) | 20 – 16 |
| Wire Size (mm²) | .5 – 1.29 |
| Mating Tab Width | 1.8 mm [ .071 in ] |
| Mating Tab Thickness | .64 mm [ .025 in ] |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 10 |
| Terminal Type | Receptacle |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

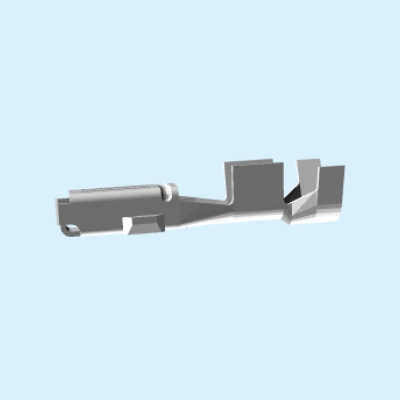

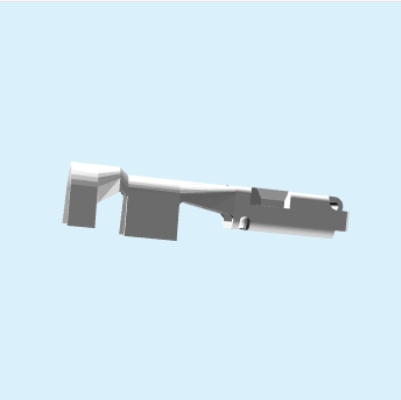

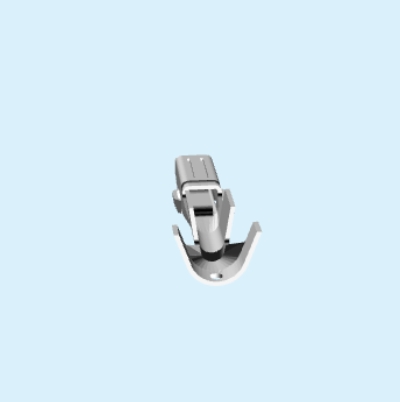

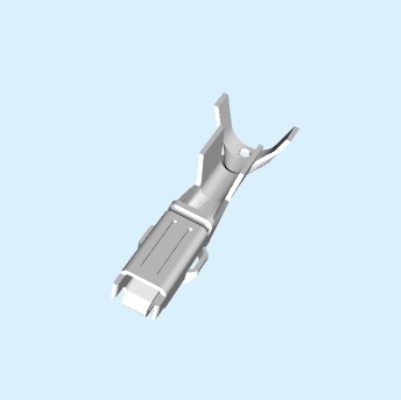

Product Display
