177916-1 Power Double Lock Tab TE
Short Description:
Tab Contact, Tin (Sn), 300 VAC / 50 VAC, Locking Lance Contact Retention, 26 – 20 AWG, .14 – .51 mm² Wire, Crimp, Copper Alloy, Power Double Lock
Product Detail
Product Tags
High-current brass terminal with dual-crimp and double-lock retention for 16–12 AWG wire, rated 40A/60V (-40°C to +125°C), designed for automotive battery, motor, or industrial power connections requiring vibration-proof security and compliance with USCAR-2, ISO 8092, and RoHS/REACH.
Data Overview
| Contact Type |
Tab |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Wire Contact Termination Area Plating Material |
Pre-Tin |
| Operating Voltage (VAC) | 50, 300 |
| Contact Retention Within Housing | With |
Contact Features
| Wire Contact Termination Area Plating Thickness | .8 µm [ 31.49 µin ] |
| Mating Tab Thickness |
.5 mm [ .02 in ] |
| Mating Tab Width |
1.5 mm [ .06 in ] |
| Wire Contact Termination Area Plating Material Finish | Matte |
| Contact Mating Area Plating Material Thickness | .8 µm [ 31.49 µin ] |
| Contact Orientation |
Straight |
| Contact Current Rating (Max) (A) |
14 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

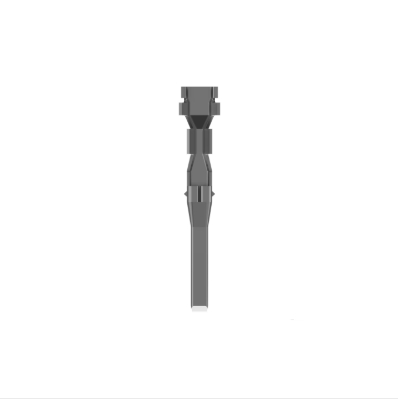

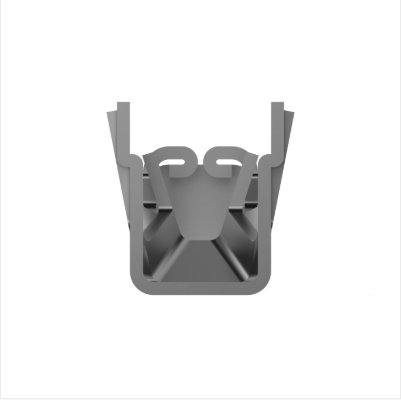

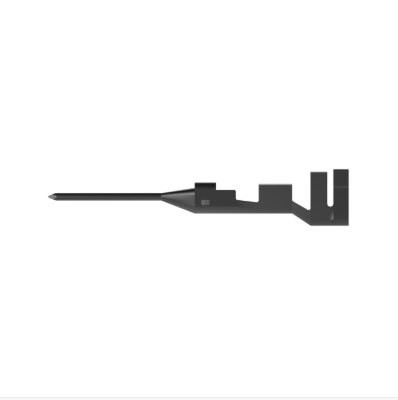

Product Display
