19003-0001Quick Disconnects/InsulKrimp Quick Disconnect Female MOLEX
Short Description:
InsulKrimp Quick Disconnect
Female
for 18-22 (0.80-0.35mm²)
Bag
Tab 6.35 x 0.81mm
Salmon
Product Detail
Product Tags
Molex 19003-0001 InsulKrimp Quick Disconnect Female Terminal,High-reliability crimp terminal for fast wiring connections in automotive and industrial applications, featuring insulated quick-disconnect functionality.
Terminal Type: Female quick-disconnect with insulated crimp barrel
Contact Material:Tin-plated brass for corrosion resistance
Wire Compatibility:22-16 AWG (0.5-1.5mm²), fits 3.2mm insulation diameter
Voltage/Current:300V AC/DC, 19A max current rating
Temperature Range:-40°C to +105°C operational range
Blade Size:0.250" (6.35mm) width for standard mating
Data Overview
| Barrel Type | Closed |
| Color - Resin | Salmon |
| Flammability | 94V-2 |
| Gender | Female |
| FullyInsulation | Nylon (PA) |
Contact Features
| Material - Plating Mating | Tin |
| Wire Size (AWG) | 18, 20, 22 |
| Wire Insulation Diameter | 3.43mm max. |
| Plating min - Termination | 2.540µm |
| Temperature Range - Operating | -65° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

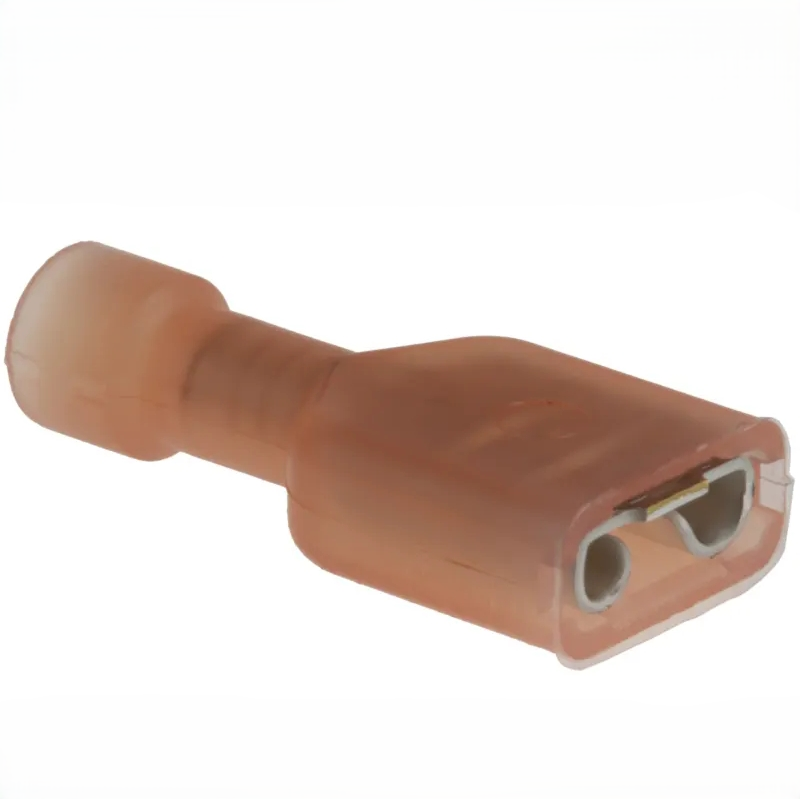

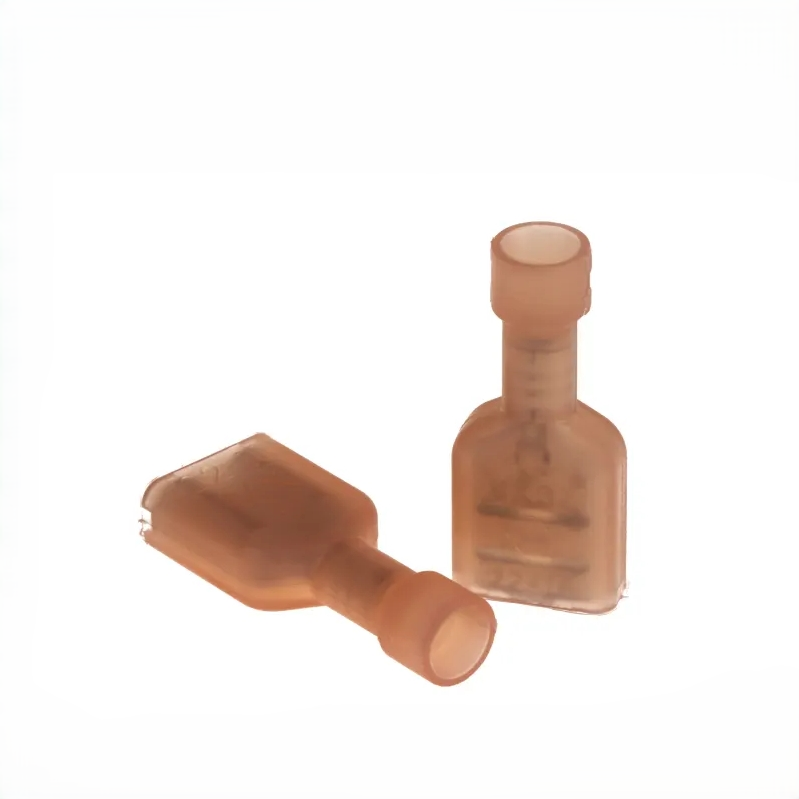

Product Display
