2 way HVSL800082A150 Connectors for electric vehicles
Short Description:
Description:female cable connector; 2 pole; angled; A-coded; 50,00mm²; with HVIL
Number of positions (w/o PE):2
Rated voltage:1000 (V)
Rated current (40 °C):180 (A)
IP-class mated:IP69k
Availability: 4800 in Stock
Min. Order Qty: 1
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Amphenol HVSL800082A150: 2-Way High-Voltage Connector for Electric Vehicles
Circuit Type:2-position connector
Current Rating :180A continuous per contact
Wire Gauge:50 mm² shielded cable (optimized)
Voltage Rating ：800V+ systems (next-gen EV compatible)
Contact Type：Male pin (inclusive receptacle)
Termination：Crimp termination
Key Alignment ：Type A orientation
Operating Temp：-40°C to +125°C
Dimensions：80.9mm (W) × 59.7mm (D) × 94.6mm (H)
Compliance：EN 60664-1 insulation standard
Data Overview
| rated current (40 °C) | 180 A |
| number of positions (w/o PE) | 2 |
| rated voltage | 1,000 V |
| termination | crimp |
| IP-class mated | IP69k |
Contact Features
| part category | female cable connector |
| gender | female |
| coding position | A-coding |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

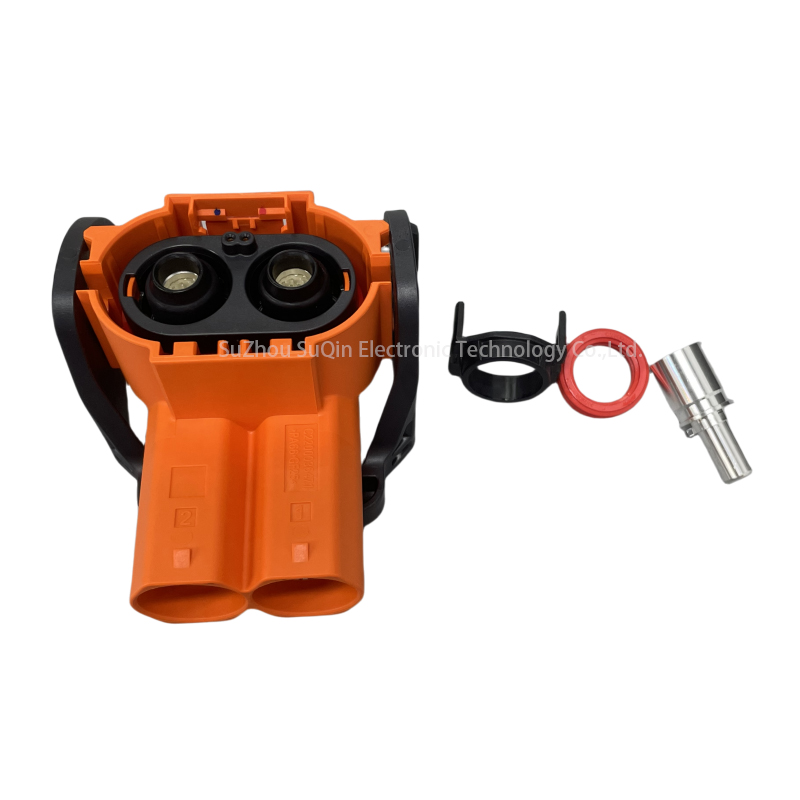

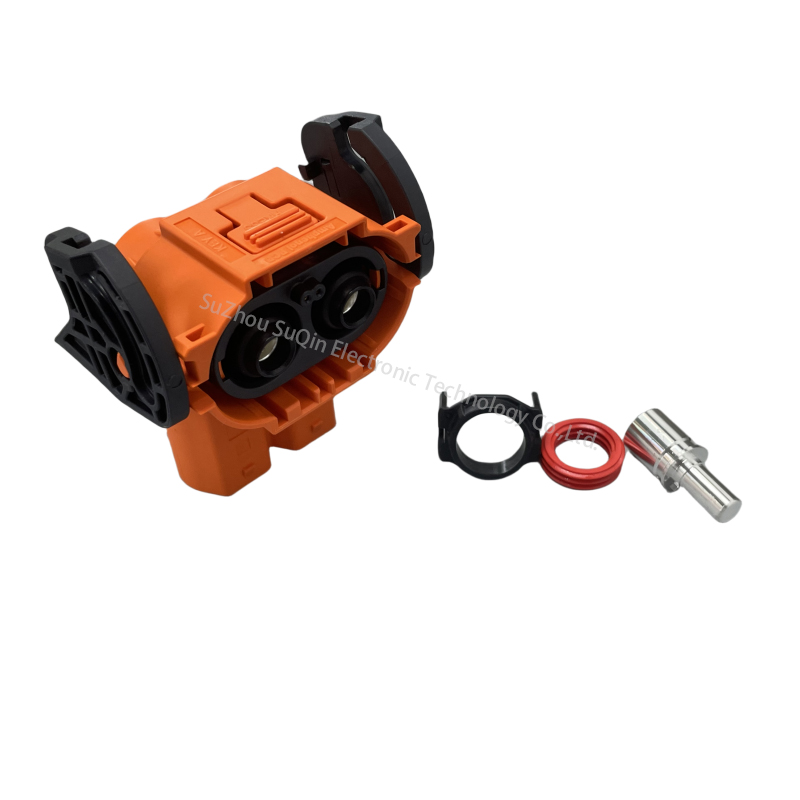

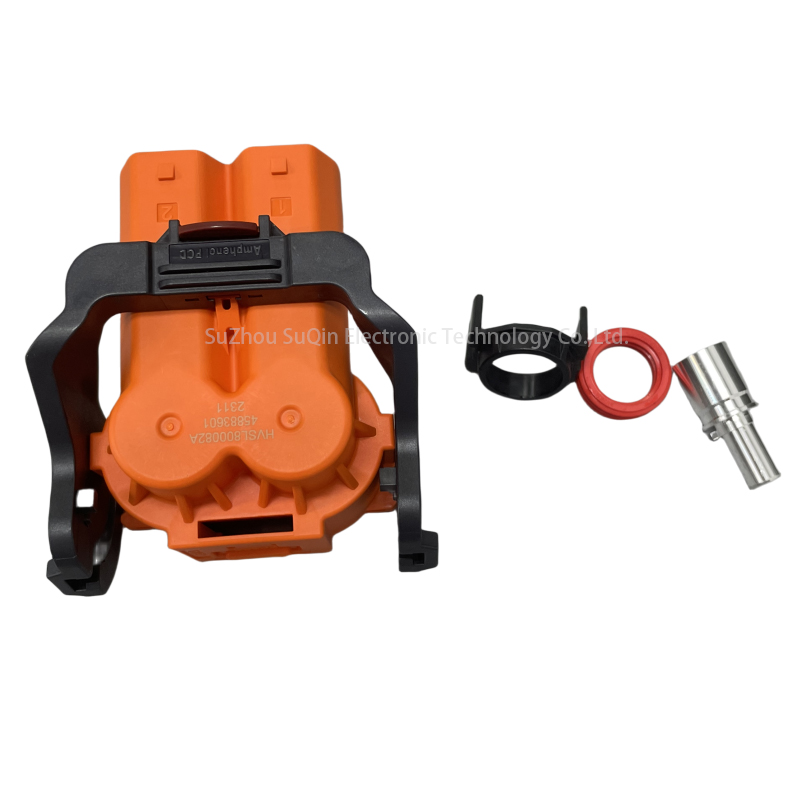

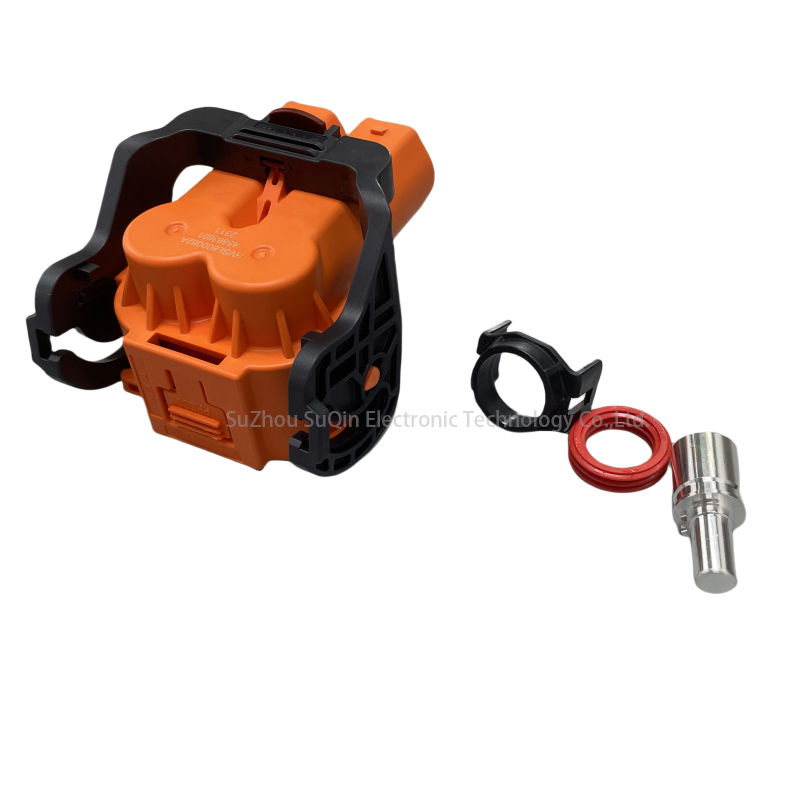

Product Display
