MX34024SF1 24 pin Connector Fit Terminals joint Parts Accessories cars Wire harness Connector
Short Description:
Model Number:MX34024SF1
Brand:JAE
Type：Connector
Application：Automotive Electronic
Gender：male and female
Pins：24P
Insulation color: Gray
Insulating material:PPE + PA66 (Alloy)
Compact/ high-density non-waterproof automotive connectors, 24 pos., Socket housing
Product Detail
VIDEO
Product Tags
With its 24-pin configuration, the MX34024SF1 maximizes space utilization in compact wire harness setups. It allows for multiple simultaneous connections, ensuring that even the most sophisticated automotive electrical systems can operate without a hitch. The symmetrical pin layout simplifies the mating process, significantly reducing the chances of misalignment and installation errors.
Data Overview
| Product | Housings |
| Number of Positions | 24 Position |
| Pitch | 2.2 mm (0.087 in) |
| Gender | Receptacle (Female) |
| Mounting Style | Cable Mount / Free Hanging |
Contact Features
| Packaging | Bulk |
| Contact Materia | Copper Alloy |
| Current Rating | 3 A |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

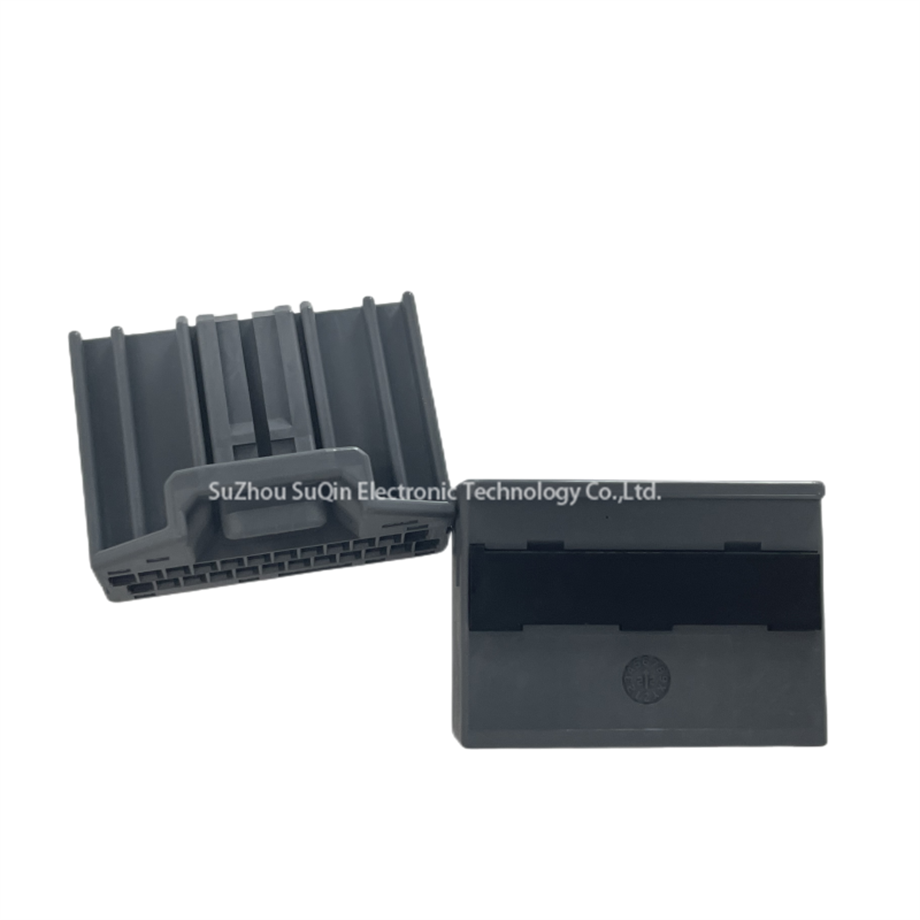

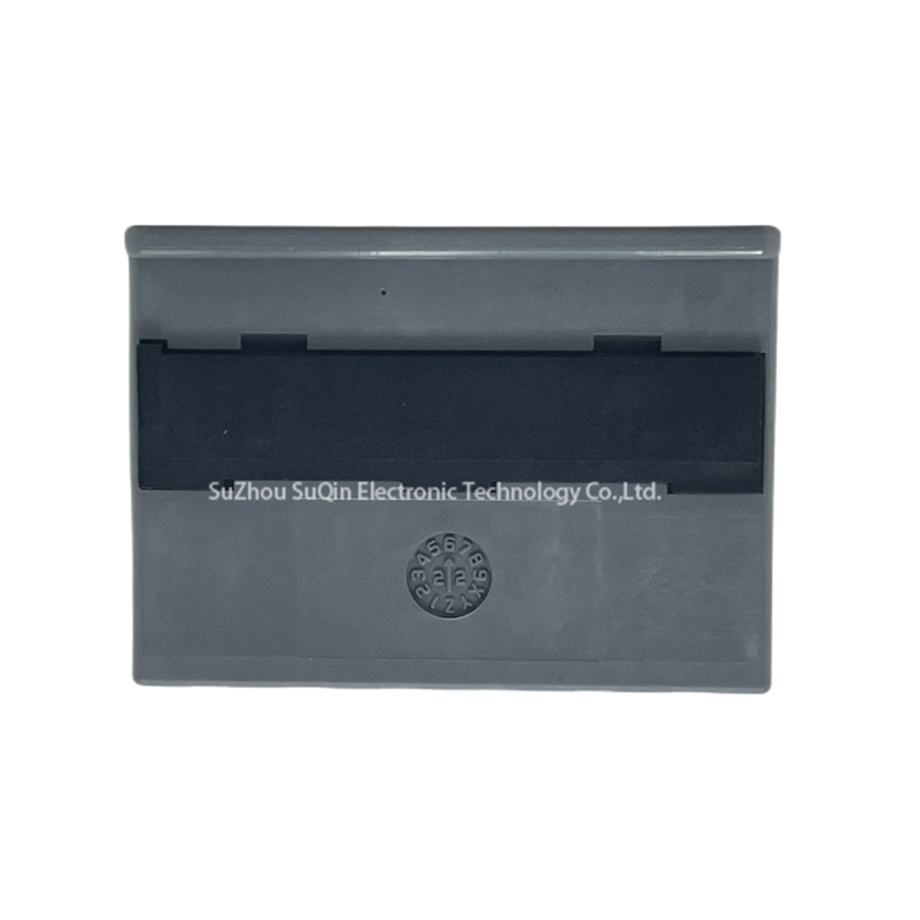

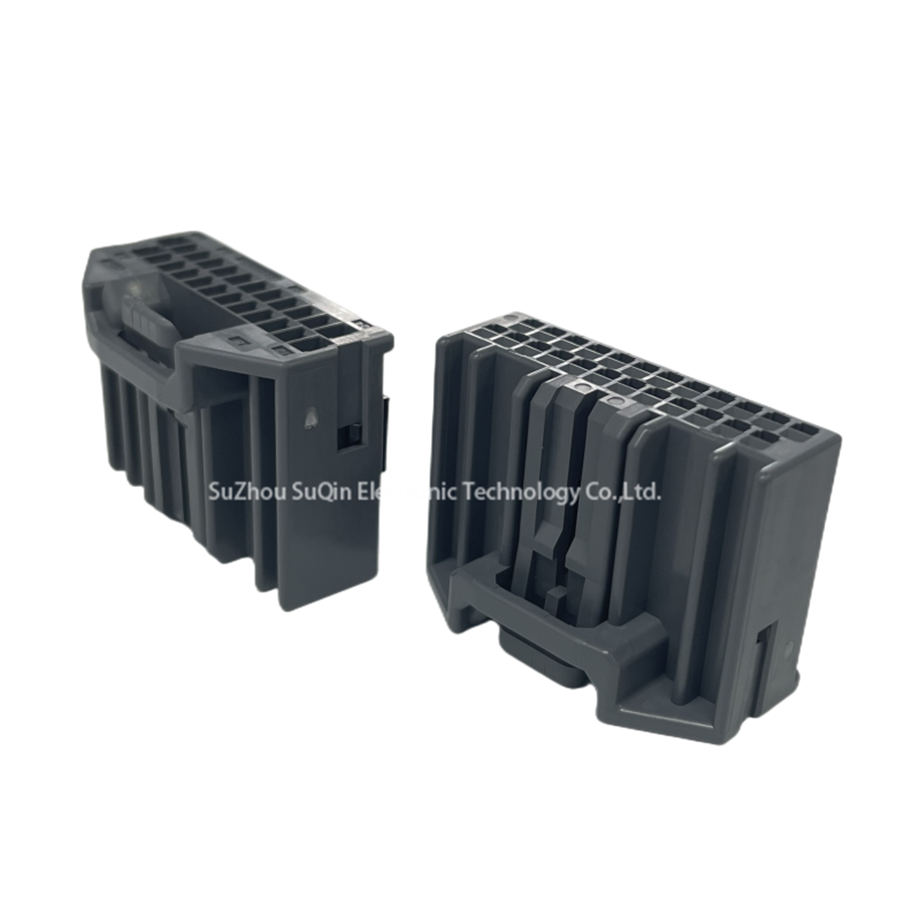

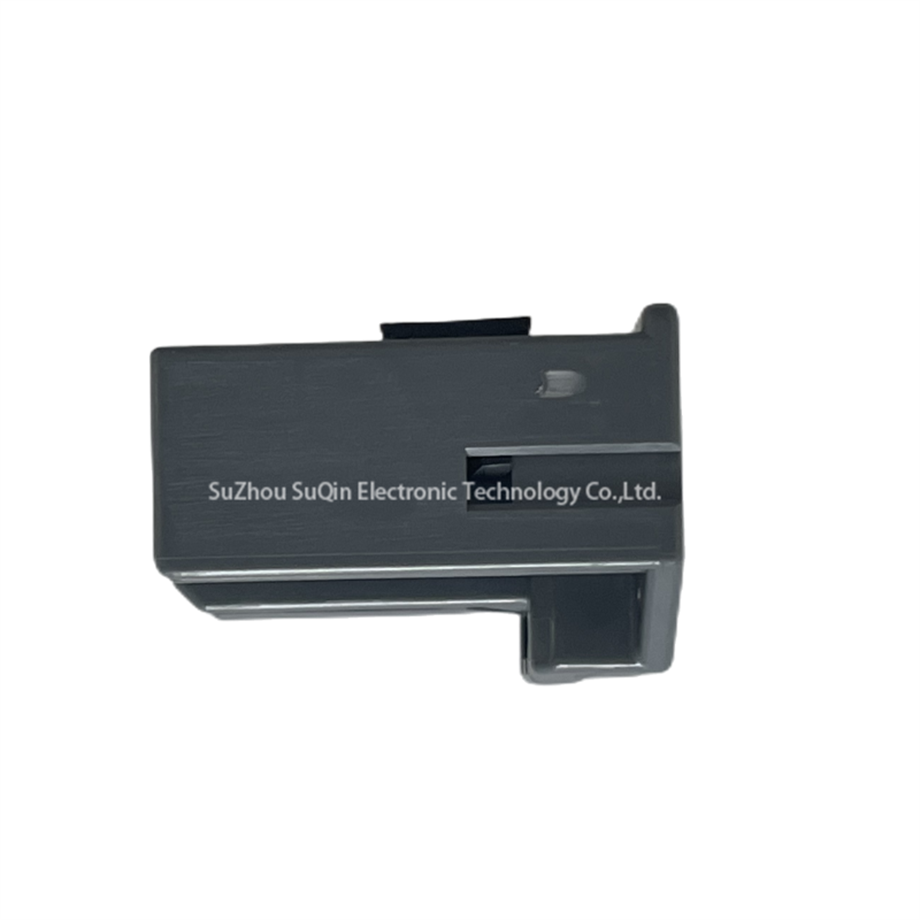

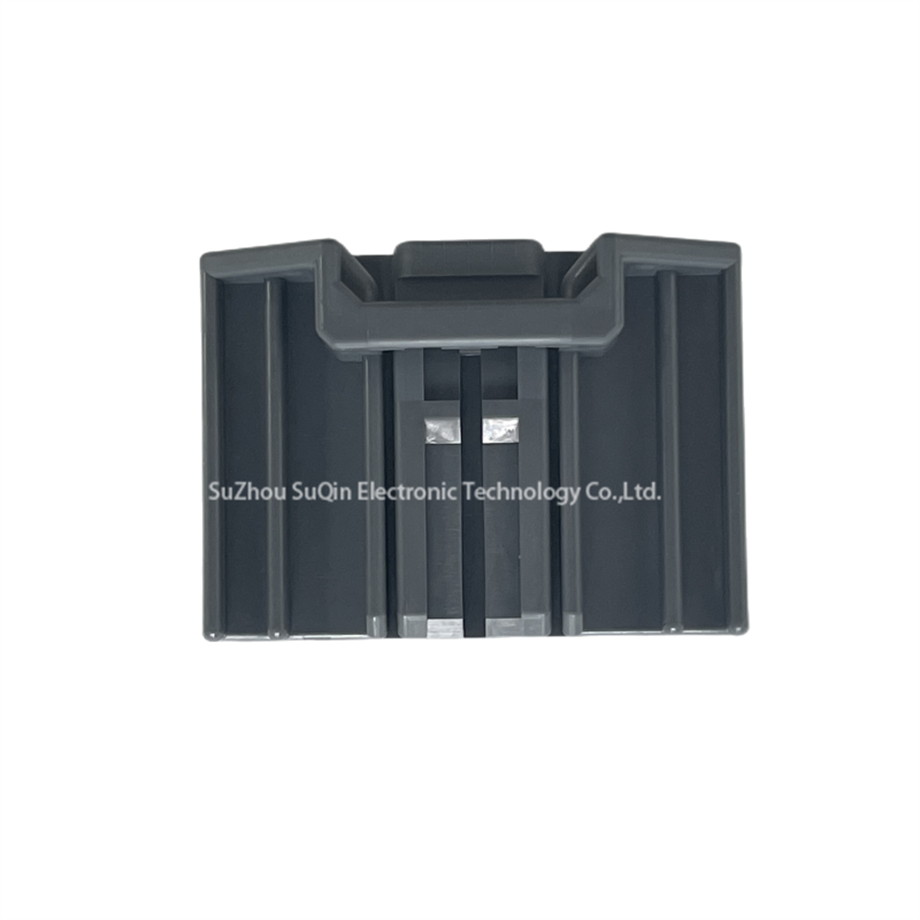

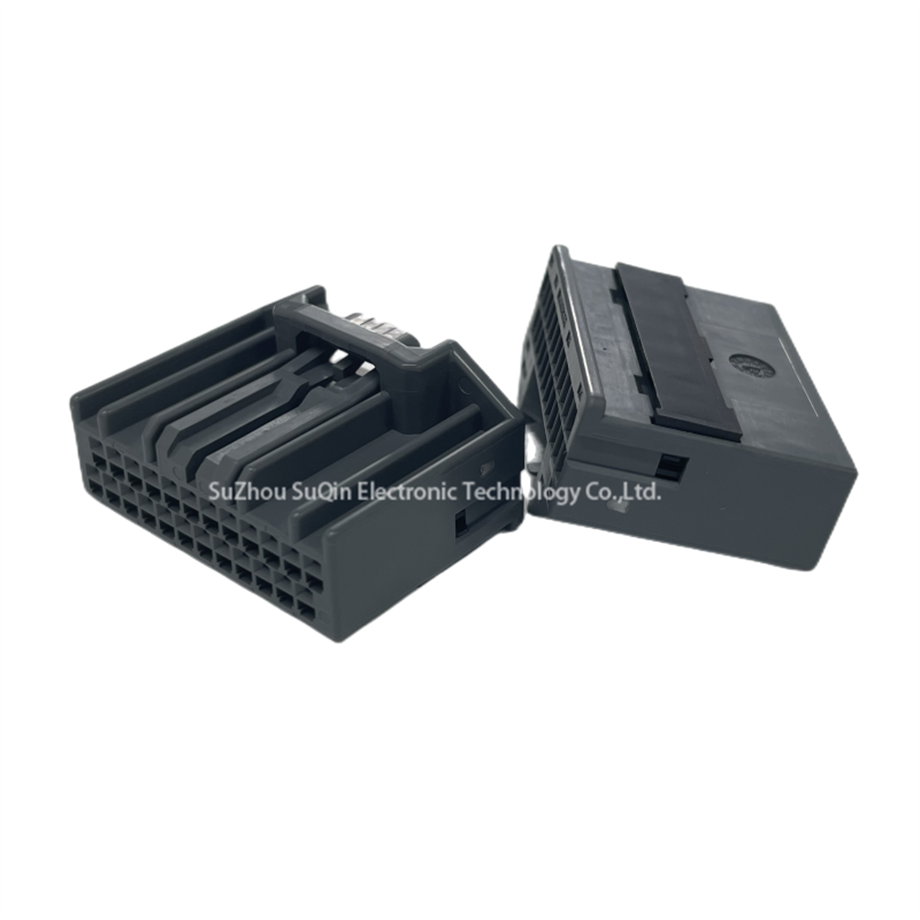

Product Display
