30 pin female automotive electrical wire harness connector 2188394-1
Short Description:
Model number：2188394-1
Brand：TE
Material：PBT
Application:automotive
Body color:white
Number of circuits: 30
Unit price：Contact us for latest quotation
Product Detail
Product Tags
Product Model:2188394-1
Brand:TE Connectivity
Pin Configuration：30-pin female
Connector Shape :Rectangular
Connector & Housing Type :Housing for Male Terminals
Pitch：9.1 mm (0.358 in)
Contact Material：High-quality copper alloy
Housing Material：Thermoplastic resin (UL94 V-0 rated)
Connector Mounting Type :Cable Mount (Free-Hanging)
Temperature Range：-40°C to +120°C
IP Rating：IP67 (water/dust resistant)
Current Rating ：5A per contact
Data Overview
| Nominal Voltage Architecture (V) | 12 |
| Connector & Housing Type | Housing for Male Terminals |
| Number of Positions | 30 |
| Sealable | No |
| Operating Temperature Range | -40 – 130 °C [ -40 – 266 °F ] |
Contact Features
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | Yes |
| Primary Locking Feature | Locking Lance |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

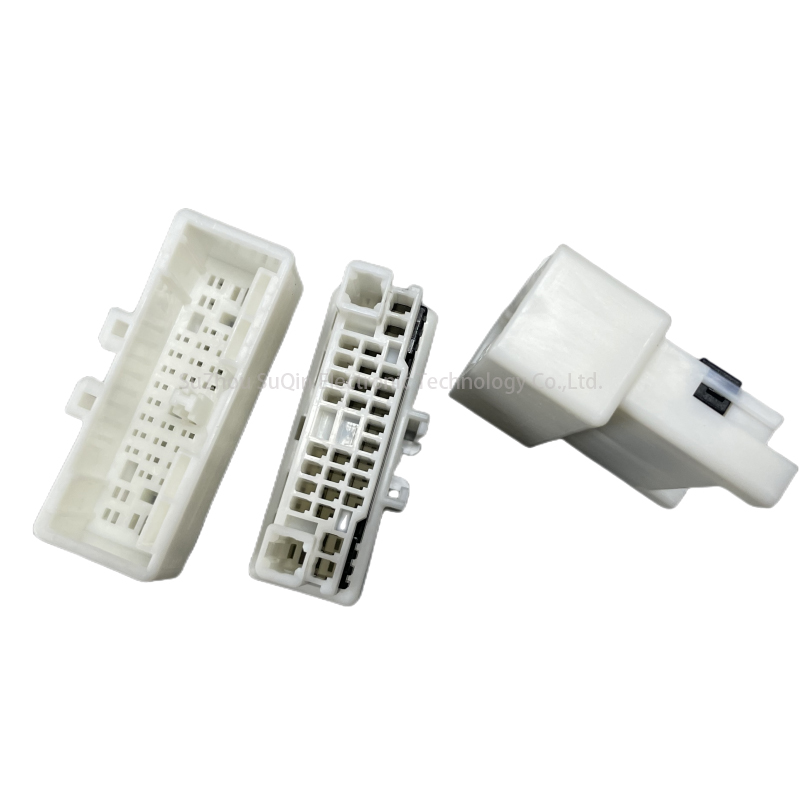

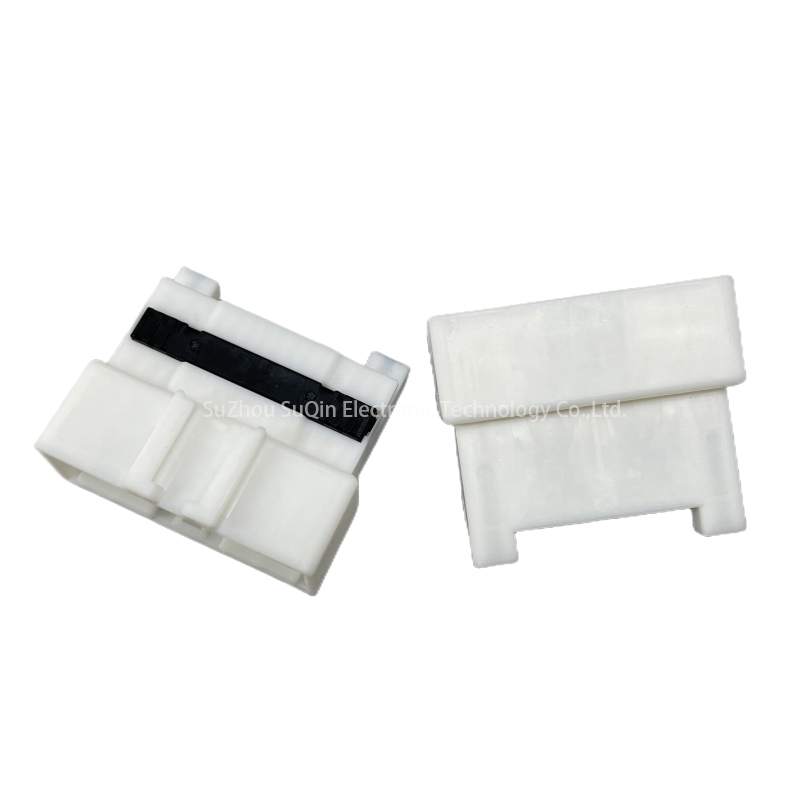

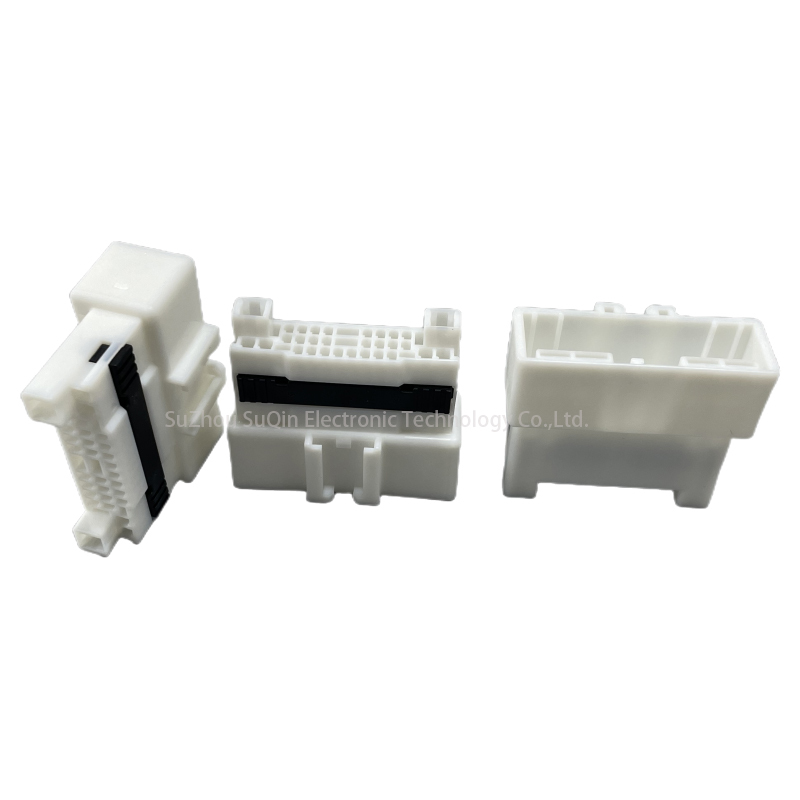

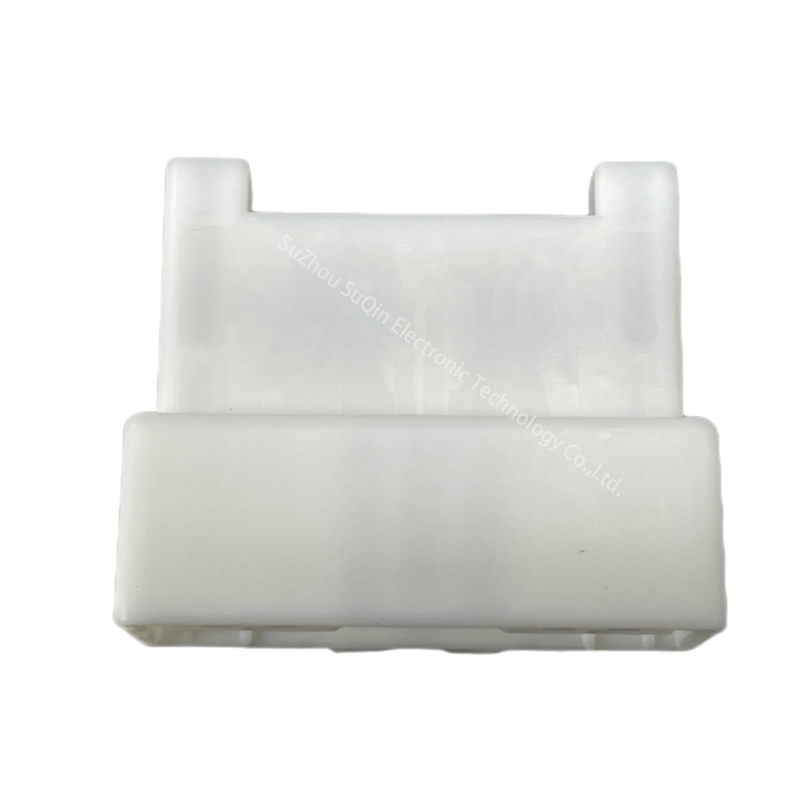

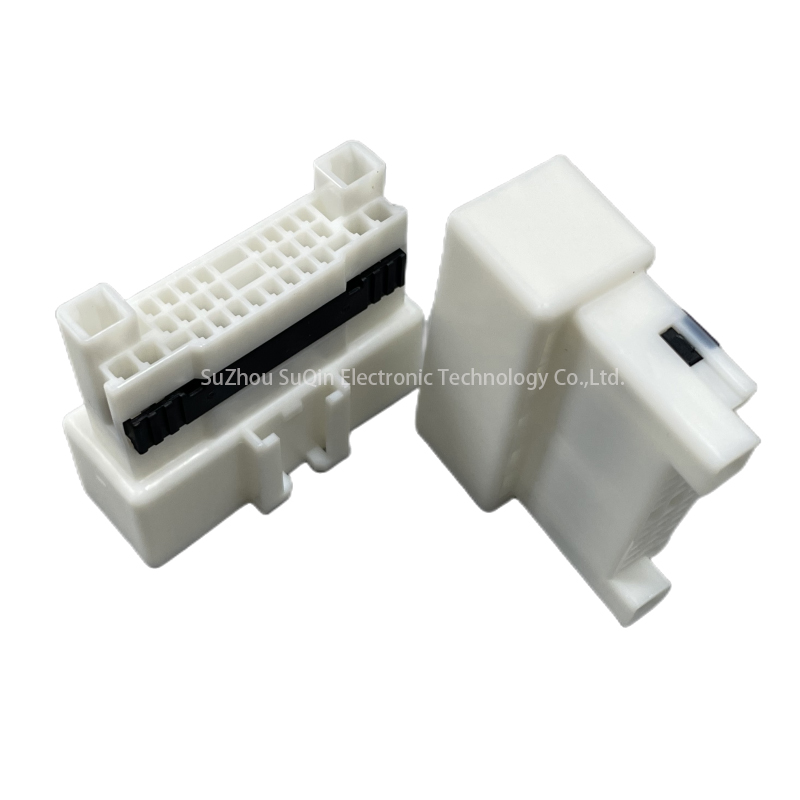

Product Display
