350415-1Connector Contacts/Tin (Sn), Socket Contact, 20 – 14 AWG TE
Short Description:
Manufacturer:TE Connectivity
Product Model：350415-1
Product Category:Pin & Socket Connectors
Product:Contacts
Contact Gender:Socket (Female)
Termination Style:Crimp
Contact Material:Brass
Contact Plating:Tin
Voltage Rating:250 V
Current Rating:13 A
Product Detail
Product Tags
Manufacturer:TE Connectivity
Product Model：350415-1
Product Category:Pin & Socket Connectors
Contact Type：Socket (Female）
Material：Brass (Tin Plated)
Wire Size Range：20-14 AWG
Termination Method：Crimp
Series：.093 Commercial
Contact Resistance ：≤4mΩ (typical)
Operating Temperature：-55°C to +105°C
Voltage Rating ：600V
Current Rating ：19A
Plating Thickness：2.36μm (typical tin plating)
Data Overview
| Contact Type | Socket |
| Contact Mating Area Plating Material | Tin (Sn) |
| Wire Contact Termination Area Plating Material | Pre-Tin |
| Operating Voltage (VAC) | 250 | 600 |
| Contact Retention Within Housing | With |
Contact Features
| Termination Method to Wire & Cable | Crimp |
| Product Terminates To | Wire & Cable |
| Contact Base Material | Brass |
| Contact Current Rating (Max) (A) | 13 |
| Contact Orientation | Straight |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

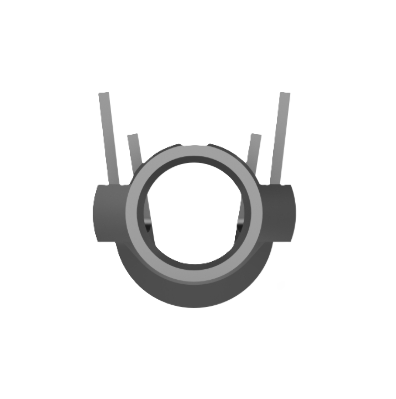

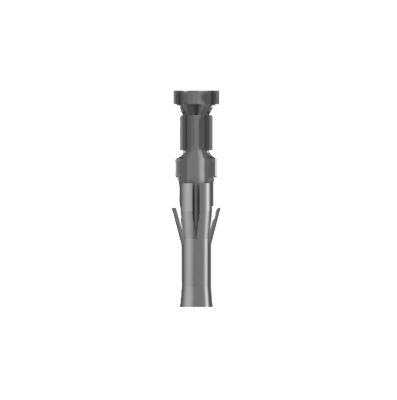

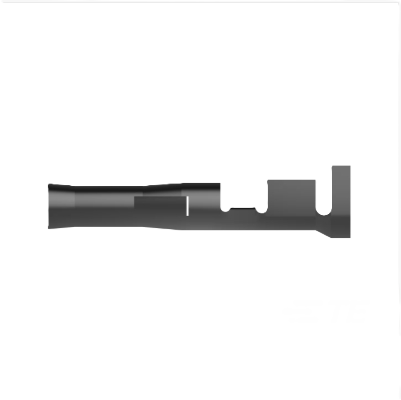

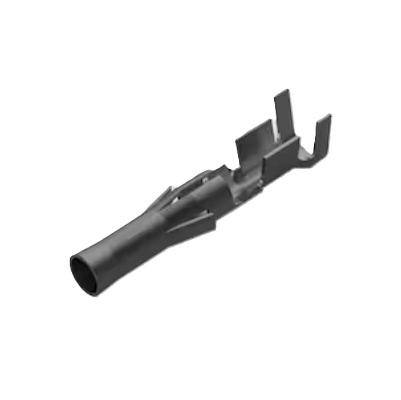

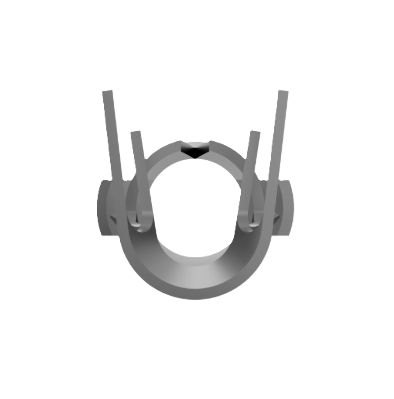

Product Display
