39-01-2105 Connector Housings/Mini-Fit Jr. Receptacle Housing Dual Row, 10 Circuits MOLEX
Short Description:
Part Number: 39-01-2105
Product Family: Mini-Fit Connectors
Gender:Receptacle
Circuits (maximum):10
Color – Resin:Natural
Flammability:94V-0
Material – Resin:Nylon
Number of Rows:2
Product Detail
Product Tags
Molex 39-01-2105 Mini-Fit Jr. Receptacle Housing
Configuration：Dual-row10 circuits (10p), 4.2mm pitch
Gender：Female (Receptacle)
Material：UL 94V-0 flame-retardant nylon housing
Current Rating ：12A per circuit (8A for certain configurations)
Voltage Rating ：600V
TerminationCrimp-style：supports 20-16 AWG wire gauges
Mounting Type：Cable-mounted
Dimensions：Length 27.6mm, Width12mm
Body Orientation：Straight
Compliance：RoHS compliant
Data Overview
| Circuits (maximum) | 10 |
| Flammability | 94V-0 |
| Pitch - Mating Interface | 4.20mm |
| Pitch - Termination Interface | 4.20mm |
| Number of Rows | 2 |
Contact Features
| Gender | Receptacle |
| Color - Resin | Natural |
| Material - Resin | Nylon |
| Glow-Wire Capable | No |
| Temperature Range - Operating | -40° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

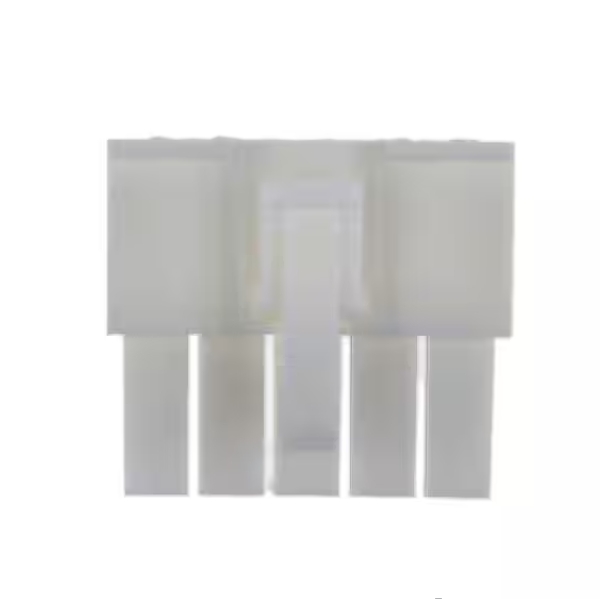

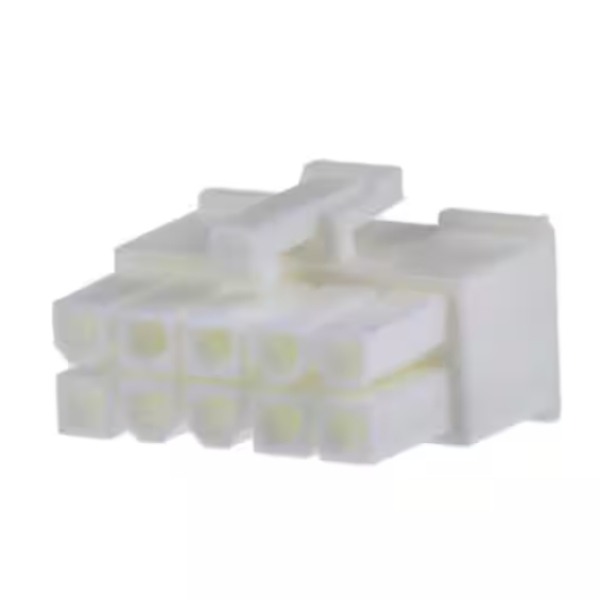

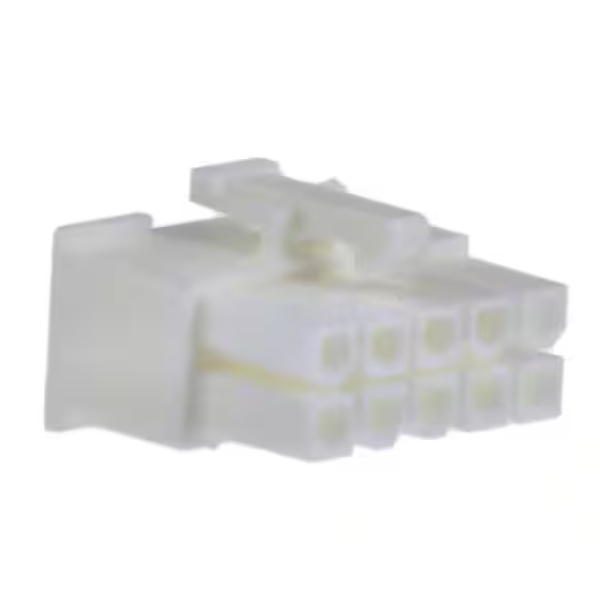

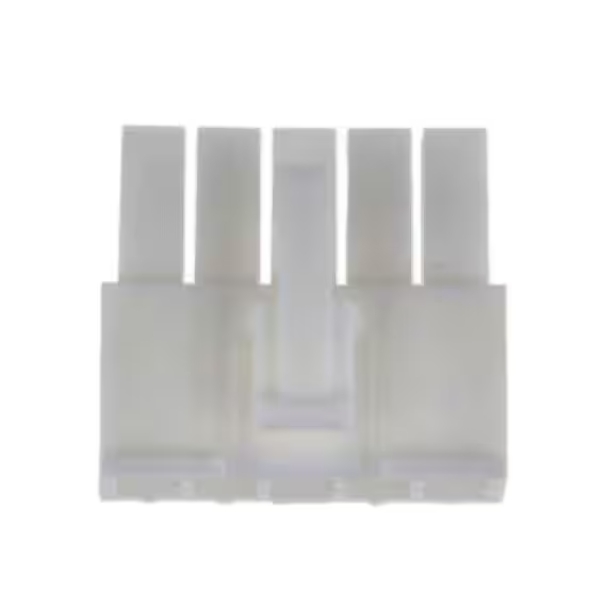

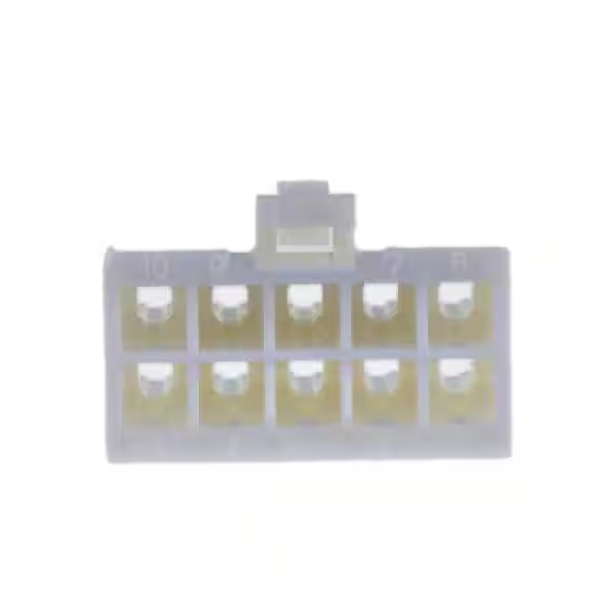

Product Display
