440054-2 PCB Connectors 2 Position PCB Mount Header,Vertical,Wire-to-Board TE
Short Description:
Manufacturer:TE Connectivity / AMP
Model Number:440054-2
PCB Connector Type : PCB Mount Header
Primary Product Color :Natural
PCB Contact Termination Area Plating Material :Tin
Contact Base Material :Brass
UL Flammability Rating :UL 94V-0
Product Detail
Product Tags
Manufacturer:TE Connectivity
Model Number:440054-2
Product Type:2-Position Vertical PCB Mount Header (Wire-to-Board)
Color:Natural (Nylon Housing)
Key Features:2.0mm pitch, THT installation, solder termination, high-current capability.
Pitch:2.0mm
Contact Number:2
Orientation:Vertical
Mounting Type:Through-Hole (THT)
Termination Method:Solder
Contact Material:Copper Alloy (Tin-Plated)
Housing Material:Nylon
Current Rating :3.0A
Voltage Rating:250V
Operating Temperature:-25°C to +105°C
Insulation Resistance:≥1000MΩ
Durability:30 Mating Cycles
RoHS Compliance:Yes
Data Overview
| PCB Connector Type | PCB Mount Header |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Positions | 2 |
| Centerline (Pitch) | 2 mm [ .079 in ] |
Contact Features
| PCB Contact Termination Area Plating Material | Tin |
| Contact Base Material | Brass |
| Primary Product Color | Natural |
| Header Type | Fully Shrouded |
| Sealable | No |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

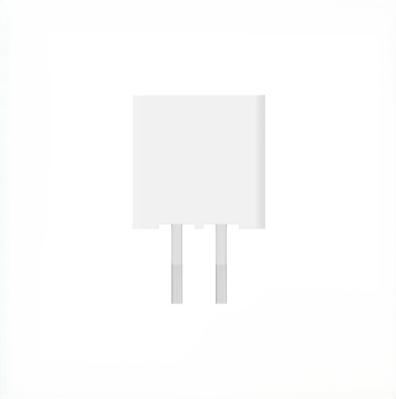

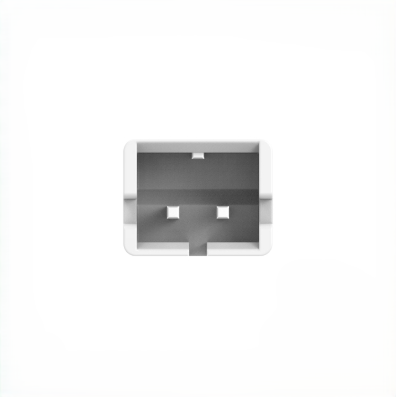

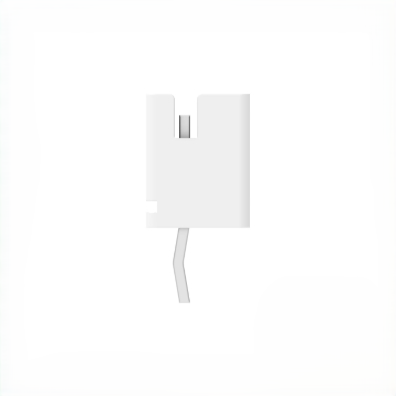

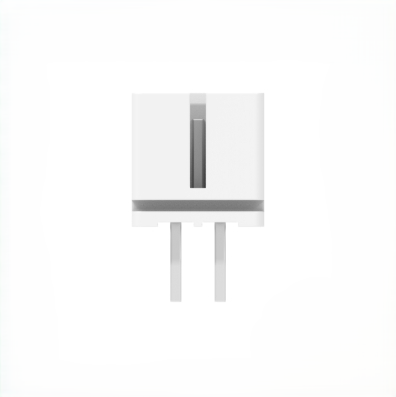

Product Display
