440129-4 Standard Rectangular Connectors 4 Position, Receptacle, Housing TE
Short Description:
4 Position, Receptacle, Housing
Crimp
Wire-to-Board
UL 94V-0
2 mm [.079 in] Centerline
1 Row
250 VAC
Wire & Cable
Power & Signal
HPI
Product Detail
Product Tags
TE Connectivity 440129-4 is a industry-standard rectangular receptacle housing designed for dependable electrical connections in industrial and commercial applications. With 4 positions and a compact footprint, it balances simplicity with robustness for power/signal transmission.
Key Specifications & Performance Data：
Current Rating 5A per contact (UL 1977 compliant)
Voltage Rating 250V AC/DC
Contact Pitch Standard 3.96mm (0.156")
Termination Crimp-style (accepts 16-22 AWG)
Material Science • Housing: Nylon, UL 94V-0 rated
• Contacts: Tin-plated brass (15μ" min)
Environmental • Temp Range: -20°C to +105°C
• IP20 finger-safe protection
Durability 500+ mating cycles
Data Overview
| Connector Product Type | Housing |
| Mating Retention Type | Detent |
| Connector & Housing Type | Receptacle |
| Connector System | Wire-to-Board |
| UL Flammability Rating | UL 94V-0 |
Contact Features
| Primary Product Color | Natural |
| Sealable | No |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Base Material | Copper Alloy |
| Termination Method to Wire & Cable | Crimp |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

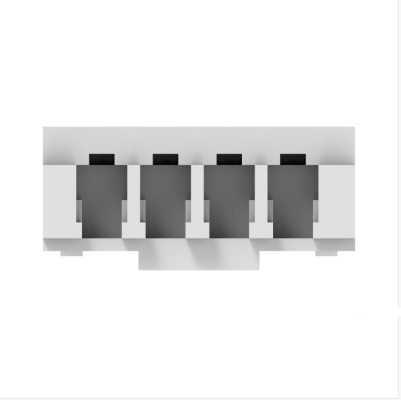

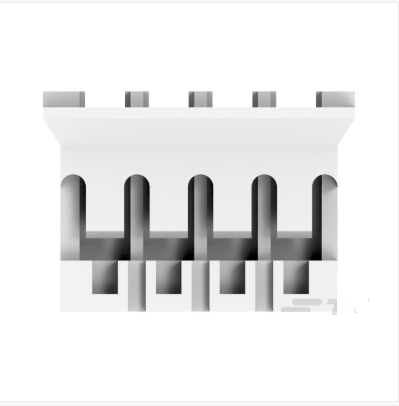

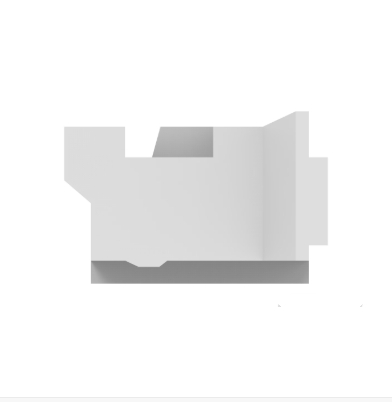

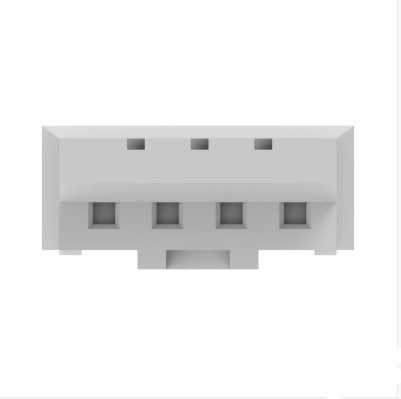

Product Display
