440133-2Connectors/AMP HPI 2.5 mm Receptacle Housings/2 PositionReceptacleHousing TE
Short Description:
Product Number: 440133-2
Description: 2.5MM,HSG,2POS,All AMP HPI 2.5 mm Receptacle Housings (28)
Connector Product Type :Housing
Connector & Housing Type :Receptacle
Connector System :Wire-to-Wire
Sealable :No
Connector & Contact Terminates To :Wire & Cable
Number of Positions :2
Product Detail
Product Tags
TE Connectivity 440133-2 ：2-Position AMP HPI 2.5mm Receptacle Housing (Wire-to-Board)
Manufacturer P/N：440133-2 (TE Connectivity OEM Part)
Series：AMP High Performance Interconnect (HPI)
Pitch：2.5mm ±0.05mm centerline spacing
Contact Gender：Female (Socket)
Mounting Type：Free-hanging cable mount
Material：Nylon 6/6 (UL94 V-0 rated, Natural color)
Operating Temp：-25°C to +85°C (Commercial grade)
Voltage Rating: 1000V AC dielectric strength
Current Capacity: 3A per contact (signal applications)
Insulation Resistance: ≥500MΩ @ 500V
Data Overview
| Connector Product Type | Housing |
| Connector & Housing Type | Receptacle |
| Mating Retention | Without |
| Termination Method to Wire & Cable | Crimp |
| Connector System | Wire-to-Wire |
Contact Features
| Primary Product Color | Natural |
| Sealable | No |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| UL Flammability Rating | UL 94V-0 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

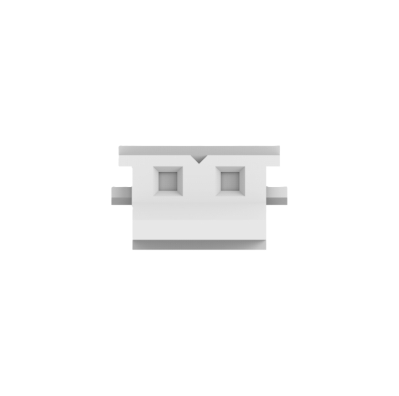

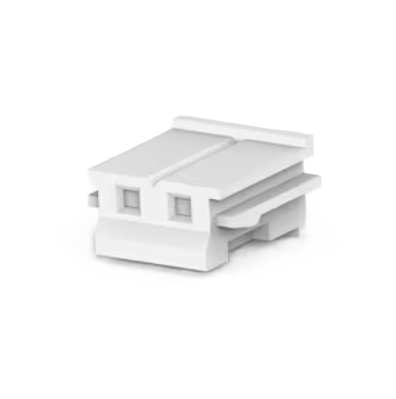

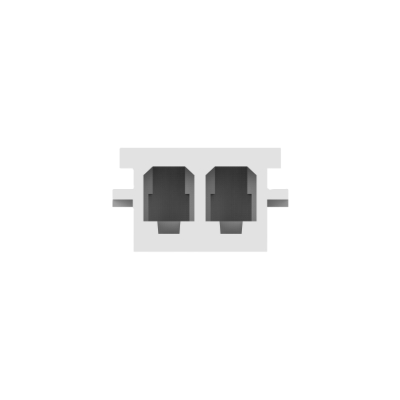

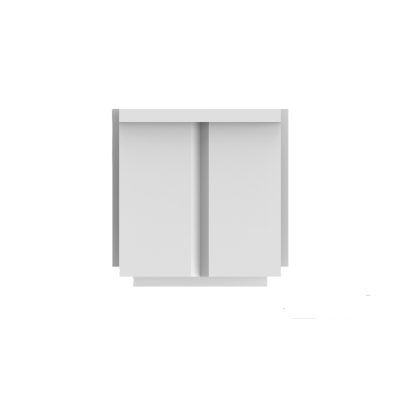

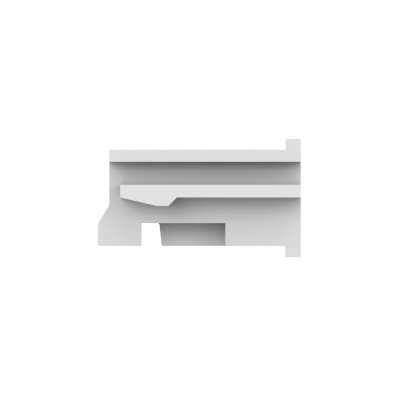

Product Display
