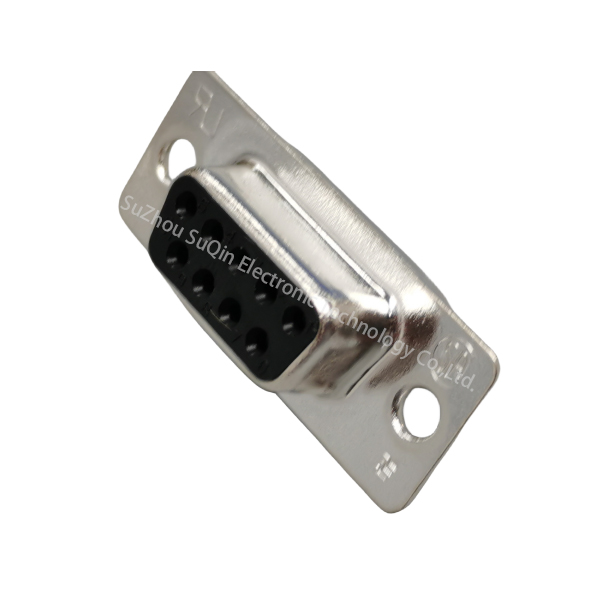

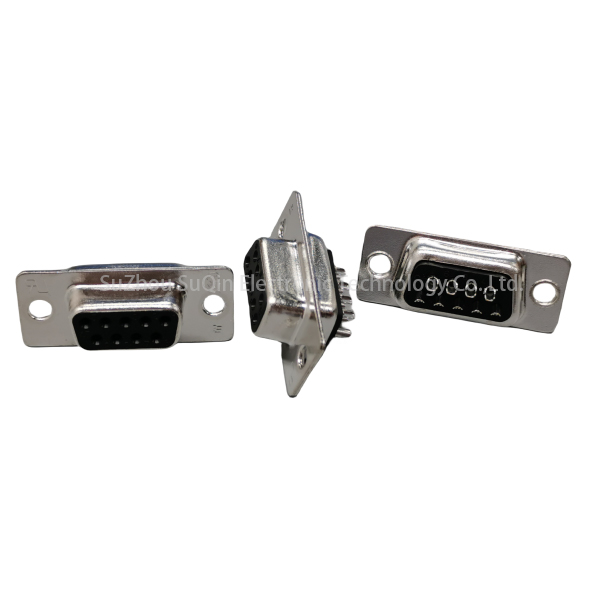

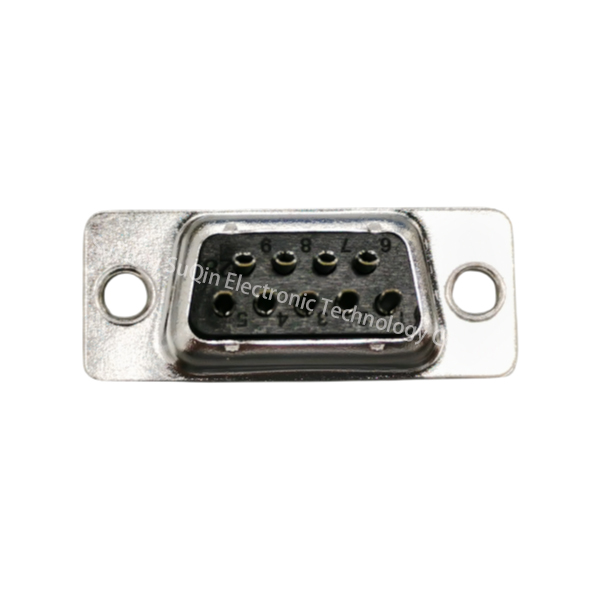

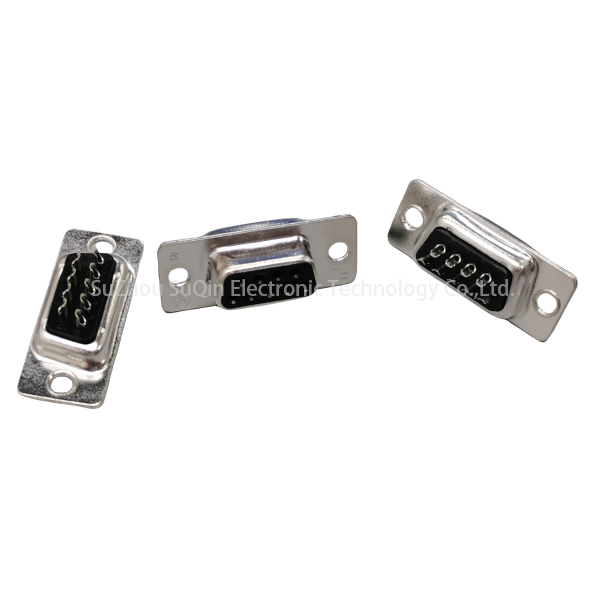

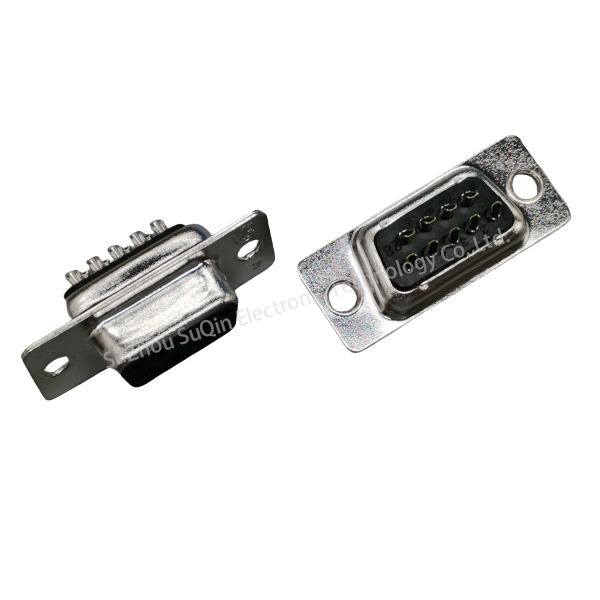

5-747905-2: Solder D-Sub Connectors, Receptacle, Cable-to-Board, 9 Position, Contact Size Size 20, 1 Connector Shell Size, Mating Retention
Short Description:
Category: Automotive Connectors
Manufacturer:TE
Termination: Crimp
Availability:27000in Stock
Min. Order Qty:45000
Standard Lead Time When No Stock:3-5Working Days
Product Detail
VIDEO
Product Tags
Manufacturer：TE Connectivity
Model Number：5-747905-2
Connector Type：Receptacle (Female)
Position Count ：9
Shell Size：1 (DE/E)
Pitch：2.77 mm
Termination：Solder Cup
Rated Current：3A
Rated Voltage：250V
Operating Temperature：-55°C to +105°C
Housing Material：Steel (Tin-plated)
Contact Plating：Gold (8µin/0.20µm)
Contact Type :Socket
PCB Contact Termination Area Plating Material :Tin-Copper
Contact Base Material :Phosphor Bronze
Contact Underplating Material :Nickel
Data Overview
| Number of Positions | 9 |
| Connector & Housing Type | Receptacle |
| Connector System | Cable-to-Board |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Shell Size | 1 |
Contact Features
| Shell Material Configuration | Full Metal Shell |
| Insert Material | Thermoplastic |
| Primary Product Color | Black |
| Connector System | Cable-to-Board |
| Connector & Contact Terminates To | Wire & Cable |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
