500762-0481PCB Headers and Receptacles2.50mm, 3.50mm, 3.70mm CMC Header MOLEX
Short Description:
2.50mm, 3.50mm, 3.70mm CMC Header
Right-Angle
48 Circuits
Black
Product Detail
Product Tags

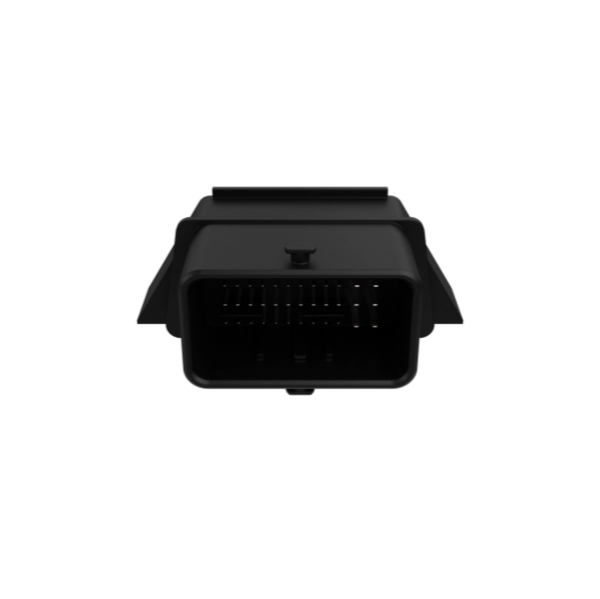

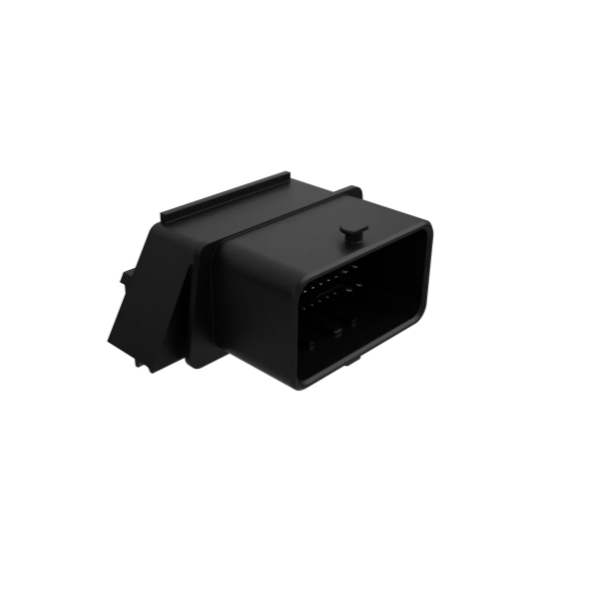

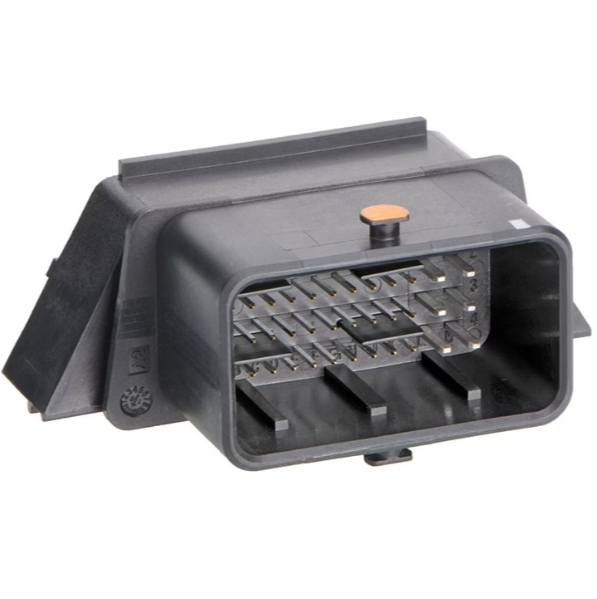

The Molex 500762-0481 is a high-density PCB header designed for reliable power and signal transmission in compact electronic assemblies, featuring a hybrid CMC (Combined Modular Connector) sealed configuration for enhanced durability.
Key Specifications:
48-position circuit configuration with a dual-row arrangement for efficient connectivity in dense layouts.
Pitch dimensions: 2.50mm (.098"), 3.50mm (.138"), and 3.70mm (.146") spacing to accommodate various PCB designs.
Mounting style: Through-hole for robust solder termination, ensuring stable PCB integration.
Electrical ratings: Handles up to 6A current and 250V voltage, suitable for power-intensive applications.
Operating temperature range: -40°C to +100°C, ideal for harsh environments.
Material construction: Black polybutylene terephthalate (PBT) housing with UL94V-0 flame-retardant properties, enhancing safety and longevity.
Data Overview
| Circuits (Loaded) | 48 |
| Color - Resin | Black |
| Durability (mating cycles max) | 20 |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Tin |
Contact Features
| Orientation | Right Angle |
| Packaging Type | Tray |
| Circuits (maximum) | 48 |
| tch - Termination Interface | 2.50mm, 3.50mm, 3.70mm |
| Temperature Range - Operating | -40° to +125°C |
