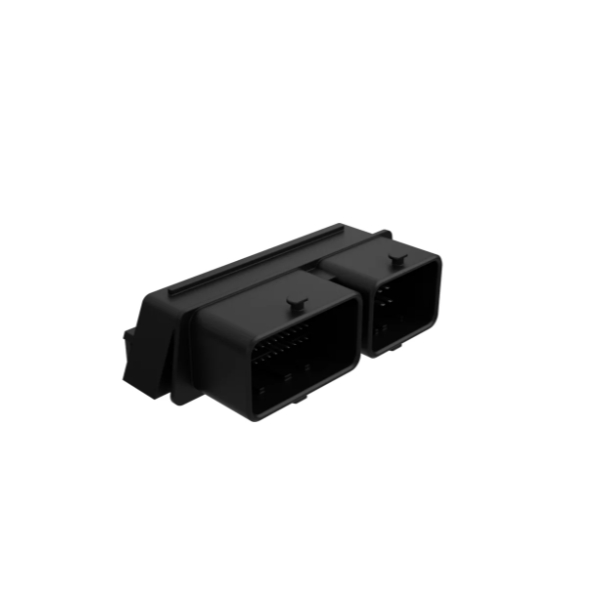

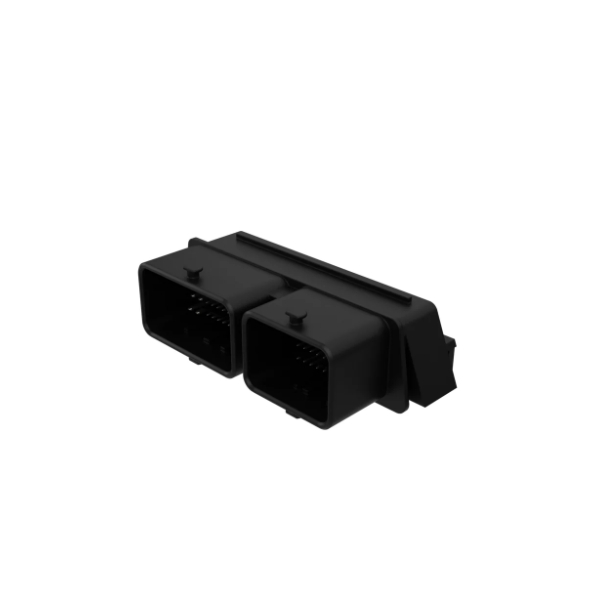

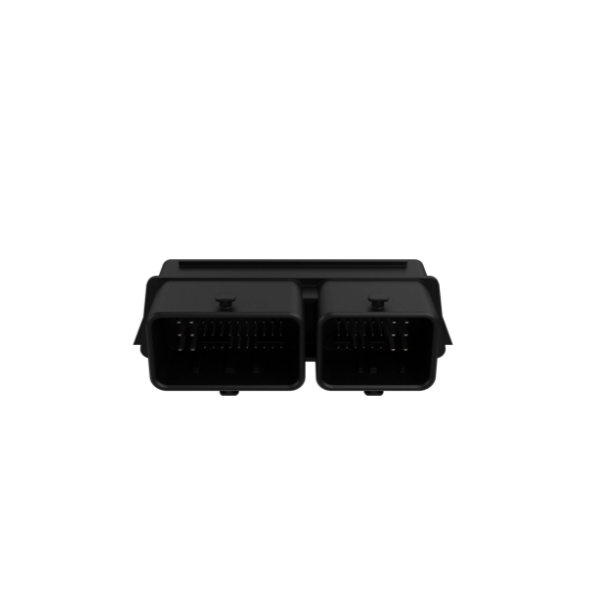

502225-0801 PCB Headers and Receptacles 2.50mm, 3.50mm, 3.70mm CMC Header, Right-Angle, 80 Circuits MOLEX
Short Description:
502225-0801 MOLEX CMC Header | Right-Angle 80-Position | 2.50/3.50/3.70mm Pitch | T2 Copper Alloy Contact
Product Detail
Product Tags
MOLEX 502225-0801 right-angle CMC header with 80 circuits, mixed pitch design (2.50/3.50/3.70mm), and T2 copper alloy contacts for reliable high-density board connections.
Feature:80-position right-angle header with mixed 2.50/3.50/3.70mm pitch configuration, featuring T2 copper alloy contacts and high-temperature housing
Advantage:Mixed pitch design optimizes board space utilization while T2 copper contacts ensure superior conductivity and mechanical durability in compact layouts
Benefit:Enables higher density PCB designs, reduces interconnection failures, and provides long-term reliability in demanding electronic equipment
Data Overview
| Manufacturer | MOLEX |
| Part Number | 502225-0801 |
| Type | CMC Right-Angle Header |
| Circuits | 80 Position |
| Pitch | 2.50/3.50/3.70mm Mixed |
| Contact Material | T2 Copper Alloy |
| Current Rating | 1.0A per circuit |
| Voltage Rating | 250V AC/DC |
| Temperature Range | -40°C to 105°C |
| Housing Material | High-Temperature Plastic |
