51103-0300 Connectors 2.50mm Pitch, Mini-Lock Receptacle Crimp Housing MOLEX
Short Description:
Part Number: 511030300
Product Family: Mini-Lock Connectors
Category ：Connector Housings
Circuits (maximum)：3
Color – Resin：Natural
Flammability：94V-0
Gender：Receptacle
Material – Resin：Polyester
Application：Signal, Wire-to-Wire
Product Detail
Product Tags
Molex 51103-0300 Mini-Lock Receptacle Housing
Configuration:Single-row, 3 circuits (3p) with 2.50mm pitch
Gender:Female (Receptacle) housing
Material:UL 94V-0 flame-retardant nylon
Current Rating :12A per circuit (8A for specific configurations)
Application：Signal, Wire-to-Wire
Voltage Rating :600V AC/DC
Termination:Crimp-style; supports 20-16 AWG wires
Temperature Range - Operating:-40° to +105°C
Locking Mechanism:Mini-Lock positive retention system
Dimensions:L9.95mm × W6.35mm × H8.38mm
Compliance:RoHS compliant
Data Overview
| Circuits (maximum) | 3 |
| Flammability | 94V-0 |
| Pitch - Mating Interface | 2.50mm |
| Number of Rows | 1 |
| Color - Resin | Natural |
Contact Features
| Gender | Receptacle |
| Glow-Wire Capable | No |
| Keying to Mating Part | None |
| Material - Resin | Polyester |
| Temperature Range - Operating | -40° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

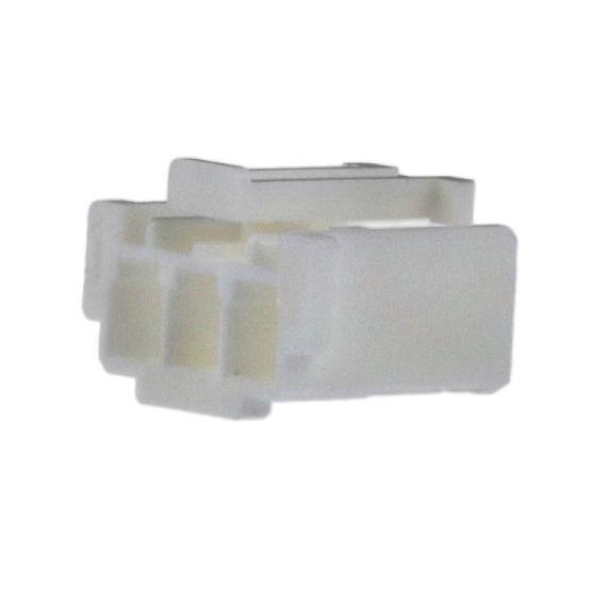

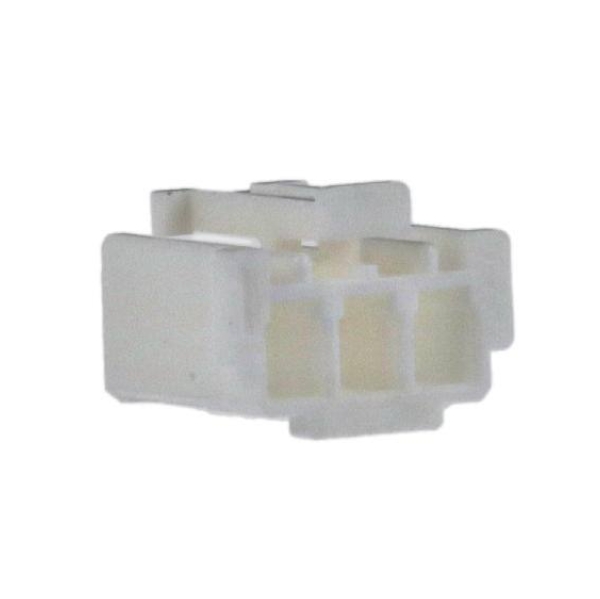

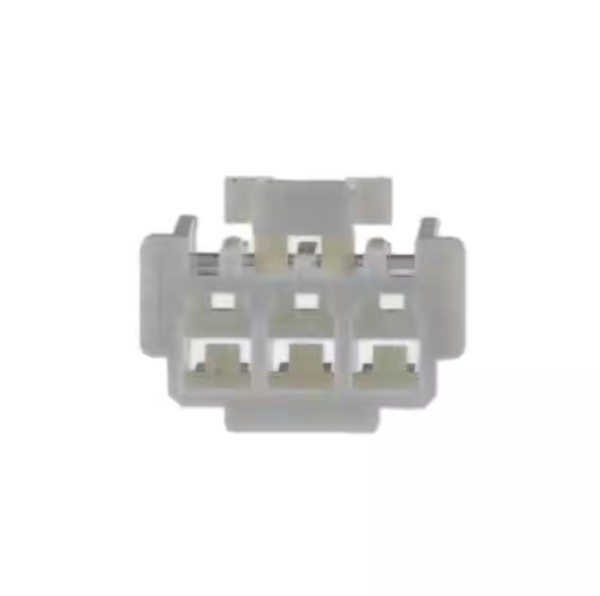

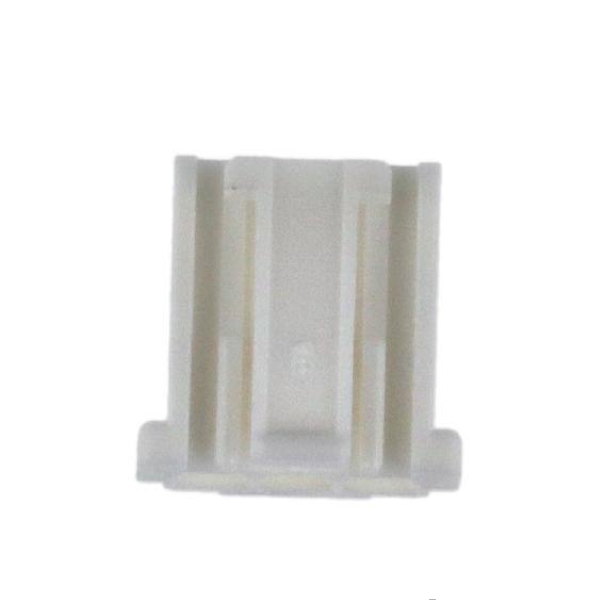

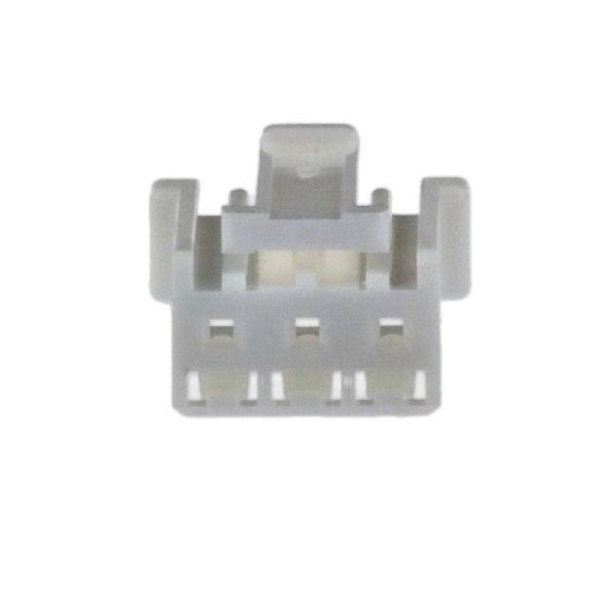

Product Display
