53426-0510 PCB Headers and Receptacles/2.50mm Pitch,Mini-Lock PCB Header MOLEX
Short Description:
2.50mm Pitch
Mini-Lock PCB Header
Single Row
Right-Angle
Through Hole with Kinked Pins
Tin Plating
Positive Lock
5 Circuits
Tray
3.40mm PC Tail Length
Natural
Product Detail
Product Tags

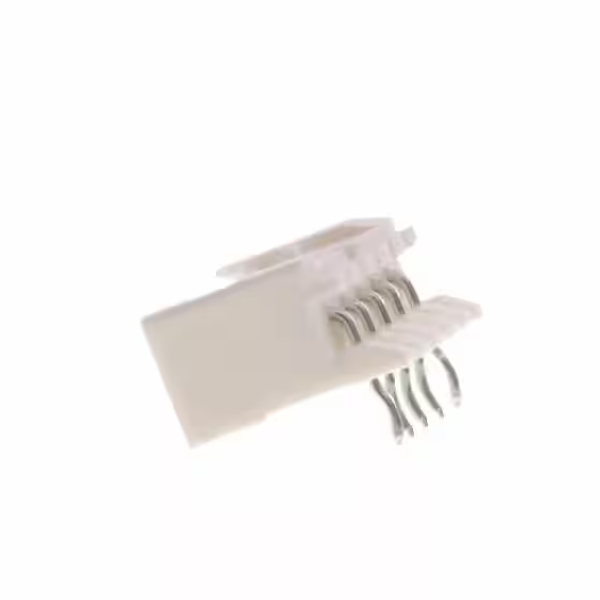

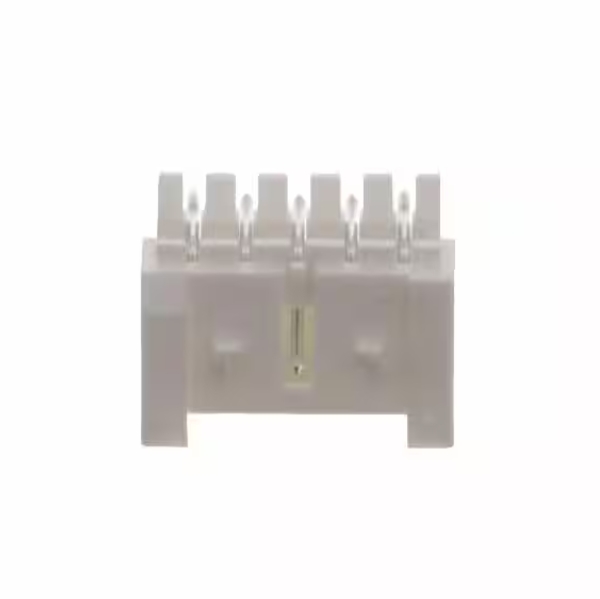

Molex 53426-0510 is a 5-circuit PCB header from the Mini-Lock series
ParameterSpecification
Manufacturer:Molex
Series:Mini-Lock
Part Number:53426-0510 (also listed as 534260510)
Connector Type:PCB Header (Male Pins)
Pitch:2.50mm
Positions:5 circuits
Orientation:Right-Angle
Mounting Style:Through-Hole (with kinked pins)
Termination:Solder
Contact Plating:Tin
Locking Mechanism:Positive Lock
Housing Material:Thermoplastic (Natural)
Contact Material:Phosphor Bronze
Current Rating :3A per contact
PC Tail Length :3.40mm
Temperature Range - Operating :-55° to +105°C
Termination Interface Style:Through Hole - Kinked Pin
Flammability Rating:UL94 V-0
Compliance:RoHS Compliant
Data Overview
| Circuits (Loaded) | 5 |
| Circuits (maximum) | 5 |
| Durability (mating cycles max) | 30 |
| Flammability | 94V-0 |
| Number of Rows | 1 |
Contact Features
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Tin |
| Material - Resin | Polyester |
| Orientation | Right Angle |
| Temperature Range - Operating | -55° to +105°C |
