61117-1 Socket Contact Commercial MATE-N-LOK TE
Short Description:
Socket Contact, Tin (Sn), 250 VAC, Locking Lance Contact Retention, 20 – 14 AWG, .52 – 2.08 mm² Wire, Crimp, Brass, Power, Commercial MATE-N-LOK
Product Detail
Product Tags
TE Connectivity 61117-1 Socket Contact | High-Current MATE-N-LOK Connector for Industrial/Medical Devices (16-14 AWG, 15A/300V, -40°C to 105°C)
Durable tin-plated copper socket contact for TE’s MATE-N-LOK systems, engineered for high-current reliability in compact spaces. Features a self-cleaning crimp design for 16–14 AWG wires, compatible with standard MATE-N-LOK housings. UL 1977/CSA/IEC-certified for safety in industrial automation, medical equipment, and HVAC controls, with corrosion-resistant plating for stable performance in humid or high-vibration environments.
Data Overview
| Contact Type |
Socket |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Wire Contact Termination Area Plating Material |
TIN |
| Operating Voltage (VAC) |
250 |
| Contact Retention Within Housing |
With |
Contact Features
| Barrel Type |
Open |
| Wire Contact Termination Area Plating Thickness |
.508 – .812 µm [ 20 – 32 µin ] |
| Mating Pin Diameter |
2.13 mm [ .084 in ] |
| Contact Orientation |
Straight |
| Contact Type |
Socket |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) (A) |
15 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

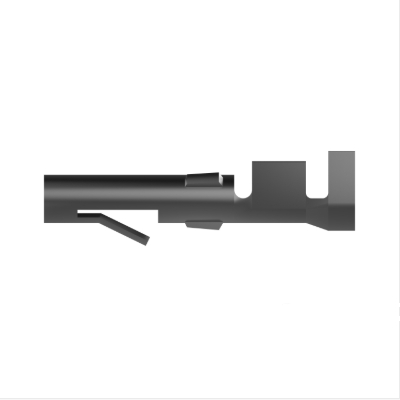

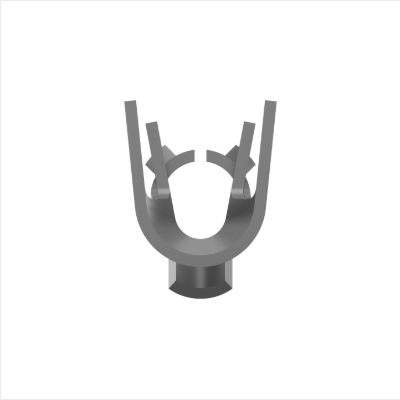

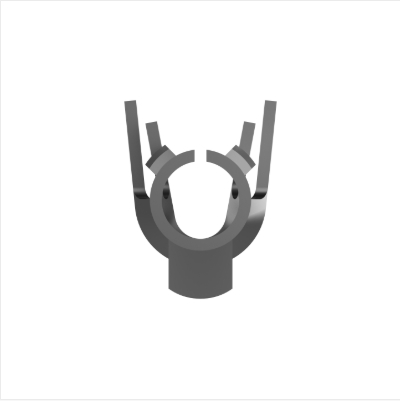

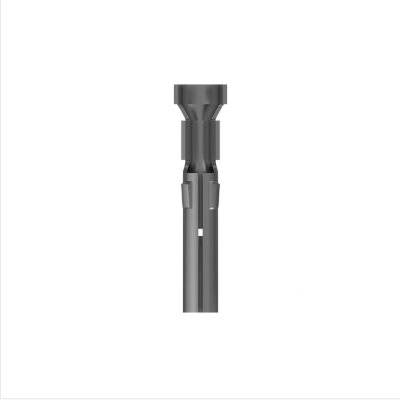

Product Display
