7-1452656-1Automotive Terminals /Receptacle Terminal TE
Short Description:
Receptacle Terminal
20 – 18 AWG
.5 – .75 mm² Wire
1.2 mm [.047 in] Tab Width
Tin (Sn)
.6 mm [.024 in] Tab Thickness
Unsealed
MCON 1.2mm
Product Detail
Product Tags
TE Connectivity 7-1452656-1 is a precision-engineered receptacle terminal for sealed automotive power connectors.
ParameterSpecification：
Current Rating 13A @ 150°C (20% derating curve)
Voltage 600V AC/DC (UL 1977 certified)
Wire Range 16-14 AWG (optimized for 2.5mm²)
Contact Resistance ≤0.5 mΩ initially; ≤1.0 mΩ after 10 thermal cycles
Material Science • Body: Copper alloy (C15100) • Plating: 150μ" tin over 50μ" nickel underplate
Durability 50+ mating cycles at 15G vibration
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 20 – 18 |
| Wire Size (mm²) | .5 – .75 |
| Mating Tab Width | 1.2 mm [ .047 in ] |
| Interface Plating | Tin (Sn) |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.2mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 16 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

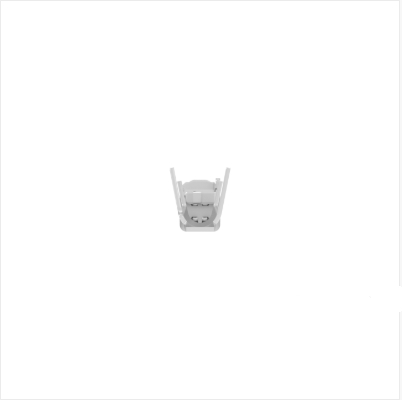

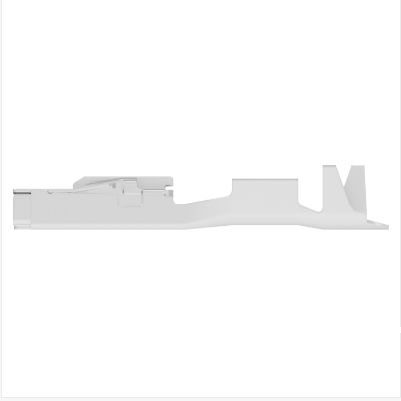

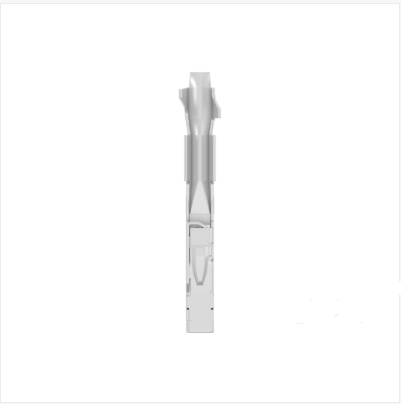

Product Display
