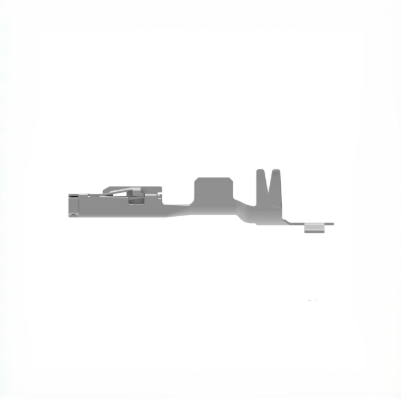

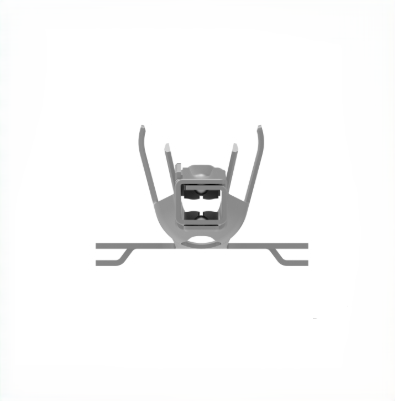

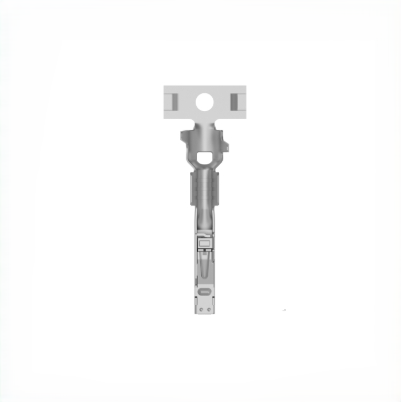

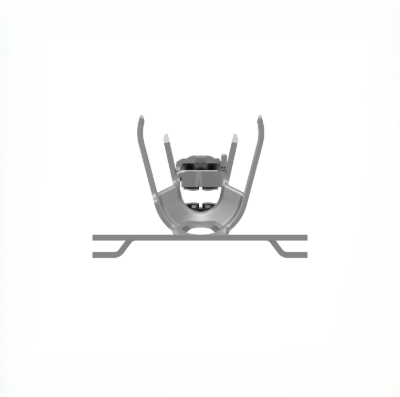

7-1452671-1 Automotive MCON 1.2mmReceptacle Terminal TE
Short Description:
Receptacle Terminal
17 – 15 AWG
1 – 1.5 mm² Wire
1.2 mm [.047 in] Tab Width
Tin (Sn)
Sealable
MCON 1.2mm
Product Detail
Product Tags
TE Connectivity 7-1452671-1 MCON 1.2mm Automotive Receptacle Terminal
Series：MCON 1.2 Automotive Connector System
Terminal Type：Socket (Female) Receptacle
Contact Termination：Crimp-style (for 17-15 AWG wires)
Current Rating：25A (max continuous load)
Contact Resistance：≤5mΩ (tin-plated copper alloy)
Voltage Rating：600V (supports hybrid/EV applications)
Retention Mechanism“：Barbed design with positive lock
Insertion Force：<15N (per TE industry standards)
Extraction Force：>20N (vibration-resistant)
Mating Cycles：≥10,000 (USCAR-2 compliant)
Temperature Range：-40°C to +130°C
Sealing Option：Compatible with single-wire seals (sold separately)
IP Rating：IP68 when properly sealed
Contact Material：Copper alloy with tin plating
Insulator Material：PA (polyamide) housing
Wire Gauge：17-15 AWG
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 17 – 15 |
| Wire Size (mm²) | 1 – 1.5 |
| Mating Tab Width | 1.2 mm [ .047 in ] |
| Interface Plating | Tin (Sn) |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.2mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 25 |
