7-1452671-2 Automotive Terminals/Receptacle Terminal TE
Short Description:
Manufacturer: TE Connectivity
Product Category:Automotive Connectors
Product:Terminals
Mounting Style:Cable Mount / Free Hanging
Termination Style:Crimp
Contact Plating:Gold
Wire Gauge Min:17 AWG
Wire Gauge Max:15 AWG
Series:MCON 1.2mm
Contact Gender:Socket (Female)
Contact Type:Socket
Current Rating:25 A
Product Detail
Product Tags
Part Number:7-1452671-2
Manufacturer::TE Connectivity/AMP
Terminal Type:Receptacle (Female)
Wire Size :20 AWG (.5 - .75 mm²)
Tab Width:1.2mm [.047"]
Tab Thickness:0.6mm [.024"]
Contact Plating:Tin (Sn)
Termination Method:Crimp (Type F)
Current Rating :Up to 16A
Voltage Rating :250V
Operating Temperature Range :-40 – 150 °C [ -40 – 302 °F ]
Sealable:Yes
Locking Feature:Locking gun compatible
RoHS Compliance:Yes
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 17 – 15 |
| Wire Size (mm²) | 1 – 1.5 |
| Mating Tab Width | 1.2 mm [ .047 in ] |
| Interface Plating | Gold (Au) |
Contact Features
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.2mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 25 |
| Mating Tab Thickness | .6 mm [ .024 in ] |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

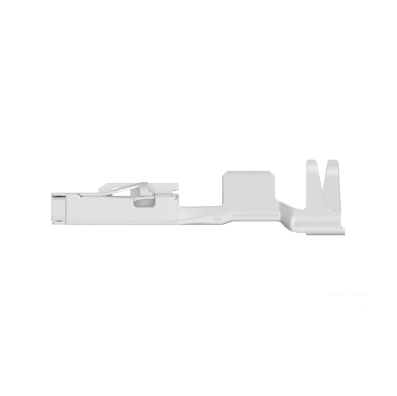

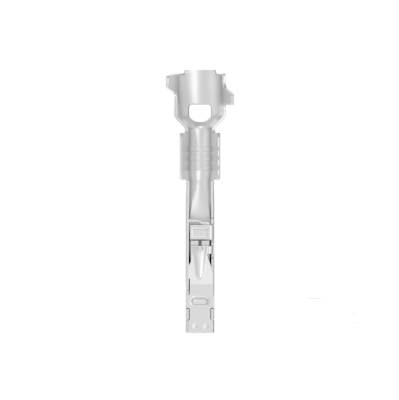

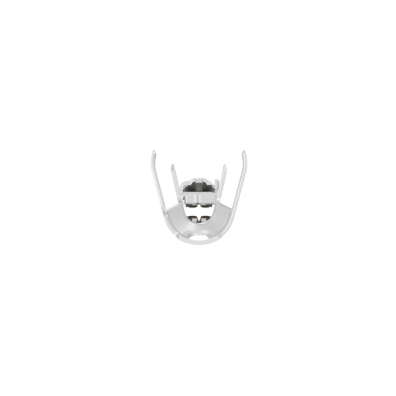

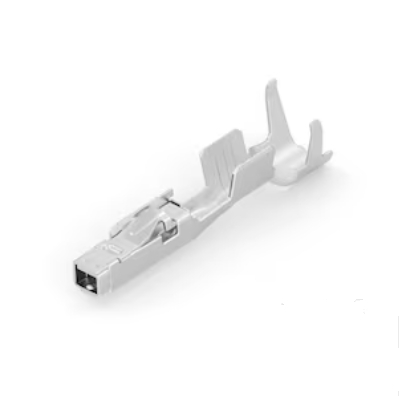

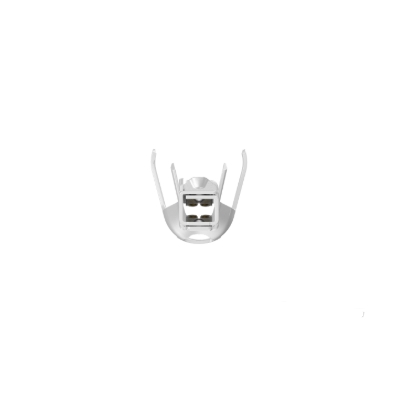

Product Display
