7123-4220-40AUTOMOTIVE CONNECTORS(58 Connector Y Type Housing 2P Female)Yazaki
Short Description:
Yazaki Part Number:7123-4220-40
Manufacturer:Yazaki
Product Category: Automotive Connectors
Product: Housings
Family:58 Connector Y Type
Number of Positions:2 Position
Gender:Receptacle (Female)
Mounting Style:Cable Mount / Free Hanging
Termination Style:Crimp
Application:Wire-to-Wire, Wire-to-Board, Wire-to-Device
Product Detail
Product Tags
Manufacturer:Yazaki
Yazaki Part Number:7123-4220-40
Product Category: Automotive Connectors
Product: Housings
Connector Type:Y-Type Housing, 2P Female (58-series)
Pitch:Standard automotive spacing (exact dimensions vary by application)
Current Rating:Up to 30A (compatible with 16-14 AWG crimp terminals)
Voltage Rating :600V (UL/IEC compliant)
Housing Material:High-temperature thermoplastic (UL 94 V-0 flame retardant)
Sealing Option:IP67/IP68 (optional for waterproofing)
Mounting Style:PCB or cable harness integration
Operating Temp.:-40°C to +120°C
Compliance:RoHS compliant, halogen-free
Insulation resistance:250Megohm Min.(at 500VDC)
Withstand voltage:1000V AC (1min.)
Data Overview
| Male/Female | Female |
| Number of Poles | 2 |
| Tab size (mm) | 9.50 |
| Materials | PBT |
| Color | GRAY |
Contact Features
| Classified Parts | Housing |
| Family | 58 Connector Y Type |
| Connection Type | Wire Harness Connector |
| Unsealed/Seald | Sealed |
| Allowable Current(Ref.) | 40A(Ref) |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

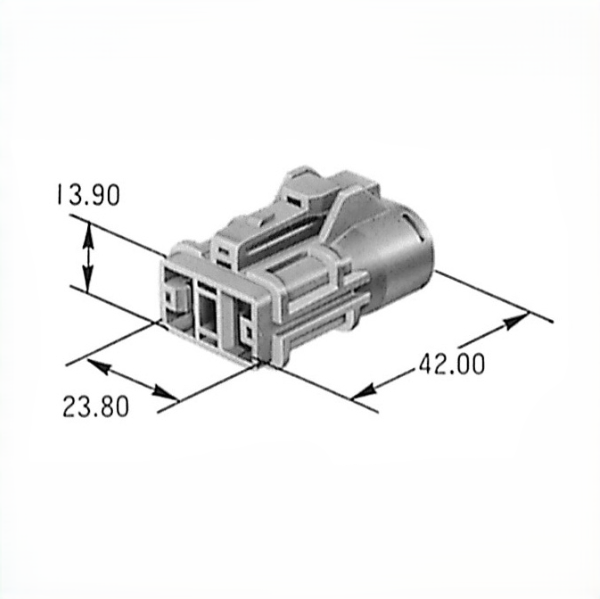

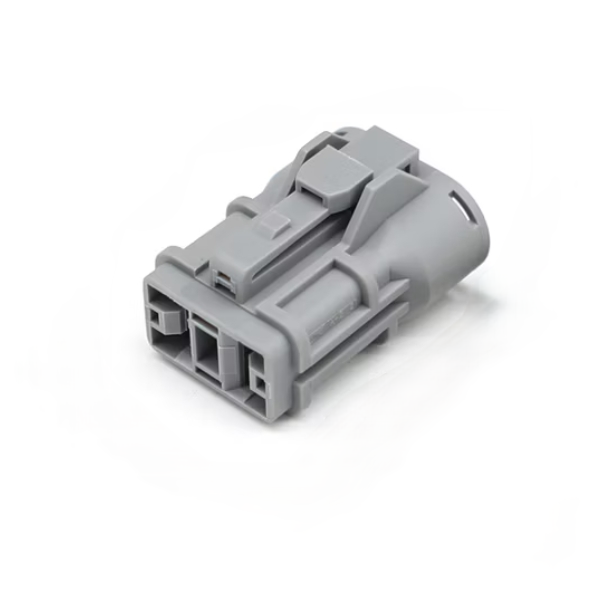

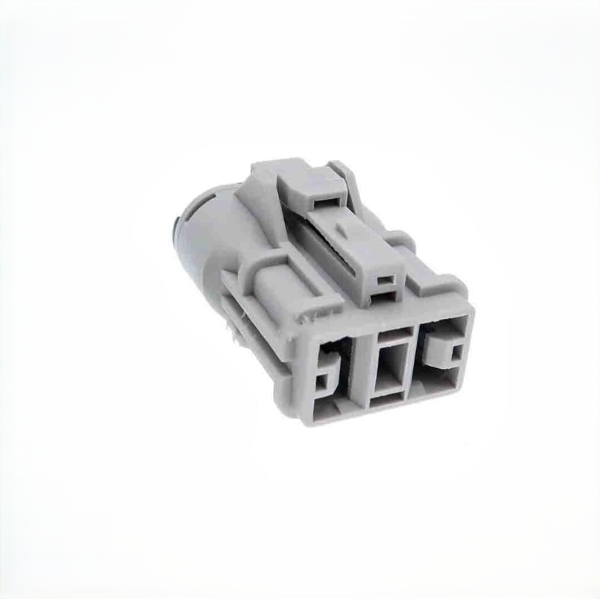

Product Display
