7283-5575-10 Wire Harness Connector (YES/YESC Kaizen Connector 2.8X0.8 2P Female) YAZAKI
Short Description:
Product Category: Automotive Connectors
Brand: Yazaki
Product: Housings
Number of Positions:2 Position
Gender: Plug (Male)
Mounting Style:Cable Mount / Free Hanging
Termination Style: Crimp
Color:Gray (Dark Gray)
Series:Sealed 2808
Application:Wire-to-Wire
Product Detail
Product Tags
Model Number:7283-5575-10
Series:YES/YESC Kaizen Connector 2.8X0.8
Connector Type:Wire-to-Wire, Female (2P)
Waterproof Rating:Yes
Terminal Size:2.80mm
Material:HPA (High-Performance Alloy)

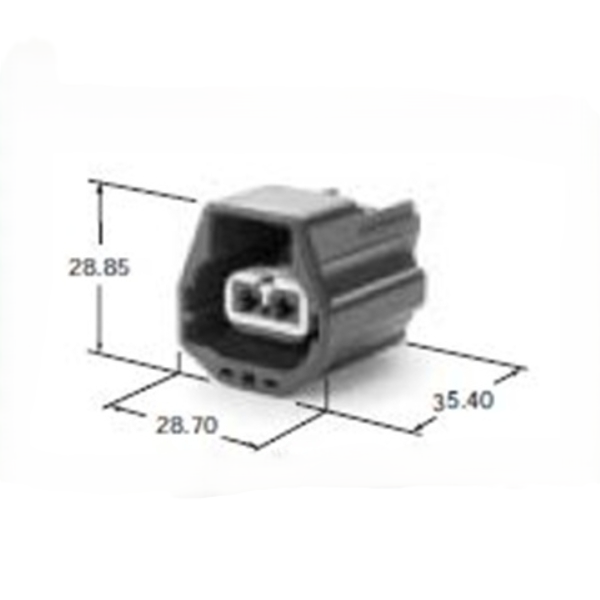

Dimensions (L×W×H):35.40mm × 28.70mm × 28.85mm
Color:Dark Gray
Current Rating :20A (Reference)
Insulation Resistance:≥20MΩ (DC500V)
Withstand Voltage:AC1000V (1 minute)
Operating Temperature:-40°C to +100°C
Data Overview
| Classified Parts | Housing |
| Number of Poles | 2 |
| Tab size (mm) | 2.80 |
| Allowable Current(Ref.) | 20A(Ref) |
| Insulation resistance | 20Megohm Min.(at 500VDC) |
Contact Features
| Family | YES/YESC Kaizen Connector 2.8X0.8 |
| Connection Type | Wire Harness Connector |
| Unsealed/Seald | Sealed |
| Male/Female | Female |
| Materials | HPA |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

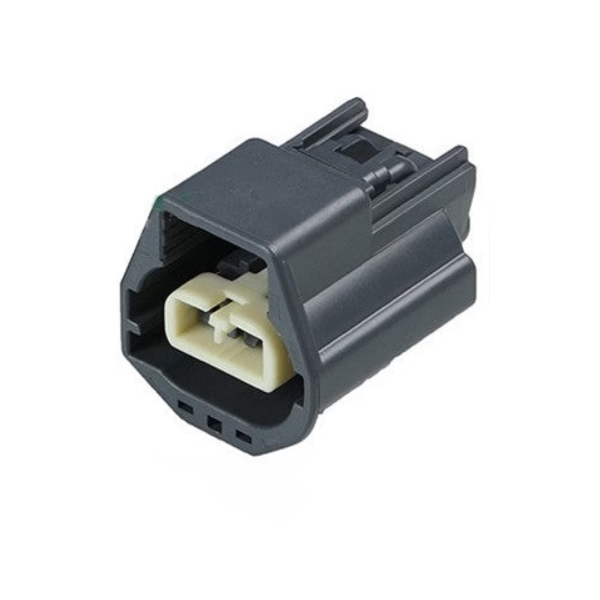

Product Display
