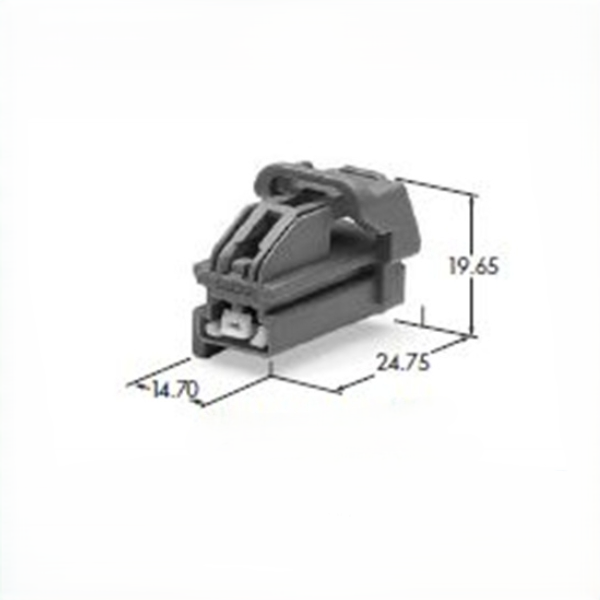

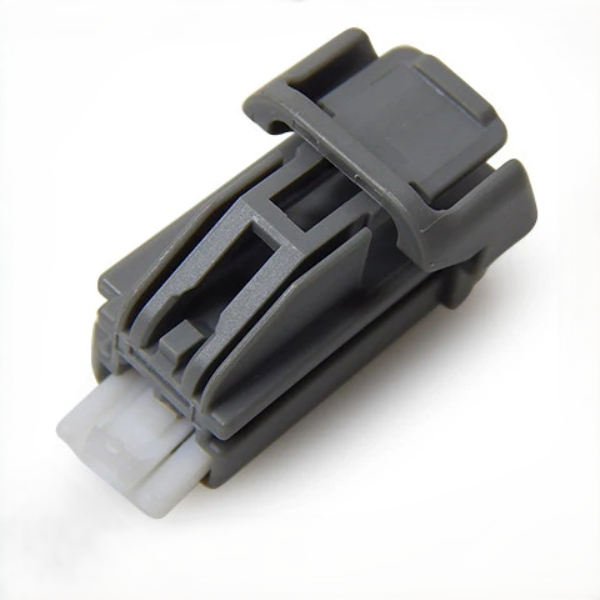

7283-6443-40Wire Harness Connector 1.5X0.8 Female Housing Yazaki
Short Description:
Manufacturer: YAZAKI Corporation
Part Number: 7283-6443-40
Series: YESC Kaizen Connectors
Type: 1.5X0.8 Female Housing
RoHS Compliance: Yes
Environmental Standards: ELV compliant
Product Detail
Product Tags
Manufacturer: YAZAKI Corporation
Part Number: 7283-6443-40
Series: YESC Kaizen Connectors
Type: 1.5X0.8 Female Housing
RoHS Compliance: Yes
Environmental Standards: ELV compliant
Current Rating :15A (Reference)
Contact Resistance:≤10mΩ (Initial)
Insulation Resistance:≥20MΩ @500V DC
Dielectric Withstanding Voltage:1000V AC (1 minute)
Voltage Rating :1.5V-9.5V
Housing Material:PBT (Polybutylene Terephthalate)
Contact Material:Copper alloy
Sealing Type:Unsealed
Connector Gender:Female
Number of Poles:2
Tab Width:1.5mm (0.060 inches)
Color:Light Gray
Operating Temperature:-40°C to +100°C
Flammability Rating:UL 94 V-0
Data Overview
| Classified Parts | Housing |
| Connection Type | Wire Harness Connector |
| Male/Female | Female |
| Tab size (mm) | 1.50 |
| Number of Poles | 2 |
Contact Features
| Unsealed/Seald | Unsealed/Seald |
| Materials | PBT |
| Color | LIGHT GRAY |
| Allowable Current(Ref.) | 15A(Ref) |
| Withstand voltage | 1000V AC (1min.) |
