7283-6445-40AUTOMOTIVE CONNECTORS(YES/YESC Kaizen Connector 2.8X0.8 2P Female) Yazaki
Short Description:
Manufacturer:Yazaki
Part Number：7283-6445-40
Connector Type：Female Housing
Pole Count：2P
Tab Width：2.8×0.8mm (0.11×0.03 inches)
Material：Heat-resistant nylon
Color：Light gray
Compliance：RoHS, ELV
Product Detail
Product Tags
Manufacturer:Yazaki
Part Number：7283-6445-40
Connector Type：Female Housing
Pole Count：2P
Family：YES/YESC Kaizen Connector 2.8X0.8
Connection Type：Wire Harness Connector
Material：Heat-resistant nylon
Color：Light gray
Current Rating (Ref.)：30A At 40°C ambient temp.
Contact Resistance：≤10mΩ (initial)
Insulation Resistance：≥20MΩ (500VDC)
Voltage Withstand：1000V AC (1min.)
Temperature Range：-40°C to 100°C
Compliance：RoHS, ELV
Data Overview
| Number of Poles | 2 |
| Tab size (mm) | 2.80 |
| Materials | PBT |
| Color | LIGHT GRAY |
| Allowable Current(Ref.) | 20A(Ref) |
Contact Features
| Classified Parts | Housing |
| Family | YES/YESC Kaizen Connector 2.8X0.8 |
| Connection Type | Wire Harness Connector |
| Unsealed/Seald | Unsealed |
| Male/Female | Female |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

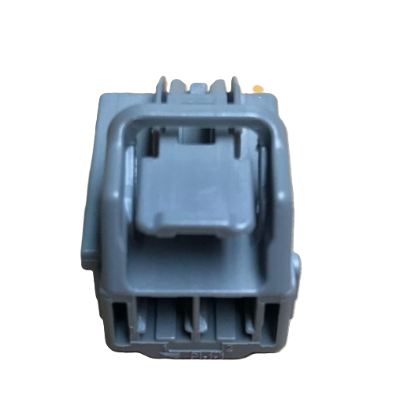

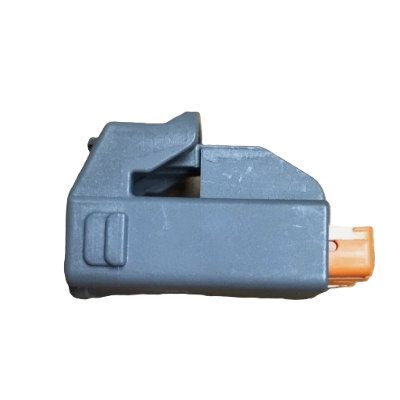

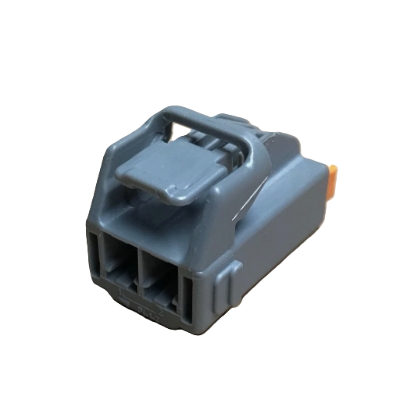

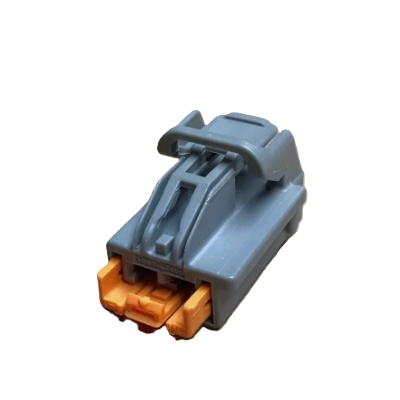

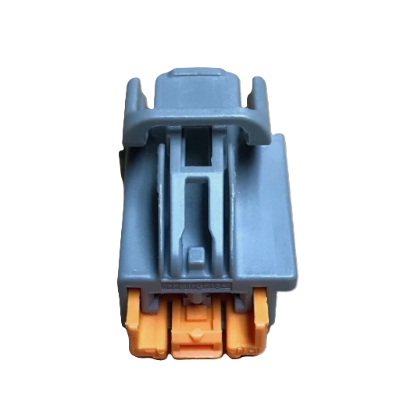

Product Display
