90142-0020Connector Housings,2.54mm Pitch C-Grid III Crimp Housing MOLEX
Short Description:
2.54mm Pitch C-Grid III Crimp Housing
Dual Row
20 Circuits
Black
Product Detail
Product Tags
The Molex 90142-0020 is a premium 20-position crimp housing from the C-Grid III™ series, engineered to deliver robust electrical connections in compact, Compact 2.54mm pitch maximizes space efficiency on PCBs and wiring harnesses without sacrificing current capacity or durability.Integrated latch securely mates with C-Grid III headers (e.g., 22-03-3031 series).Optional CPA (Connector Position Assurance) clip slot adds mating security in high-shock/vibration applications.Constructed from heat-resistant, halogen-free nylon (UL94 V-0 rated) for flame retardancy, chemical resistance, and stable performance from -40°C to +105°C.Polarization ribs and color-coded housings (typically black) prevent incorrect mating. Rear cavity design simplifies crimp terminal insertion (Molex 03091/0338 series contacts).Compatible with automated crimping and connector assembly processes, reducing manufacturing costs.
Data Overview
| Circuits (maximum) | 20 |
| Breakaway | No |
| Color - Resin | Black |
| Gender | Receptacle |
| Keying to Mating Part | None |
Contact Features
| umber of Rows | 2 |
| Net Weight | 1.280/g |
| Packaging Type | Bag |
| Pitch - Mating Interface | 2.54mm |
| Temperature Range - Operating | -55° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

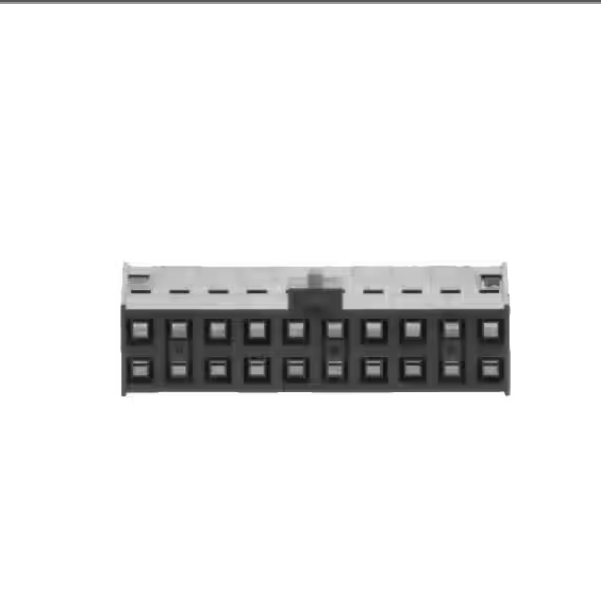

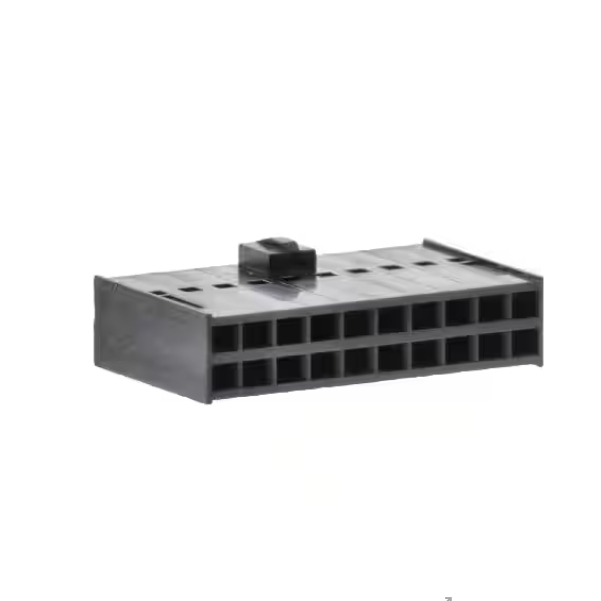

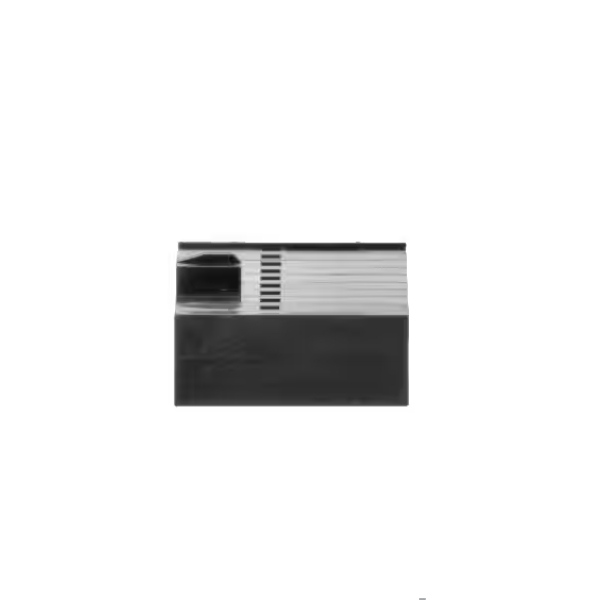

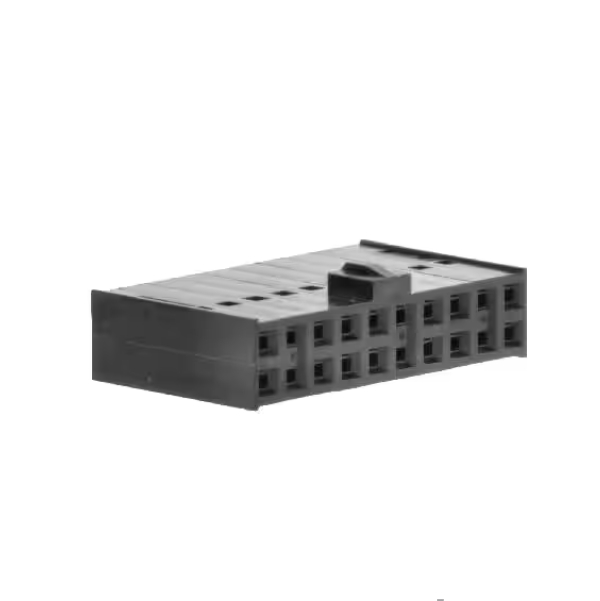

Product Display
