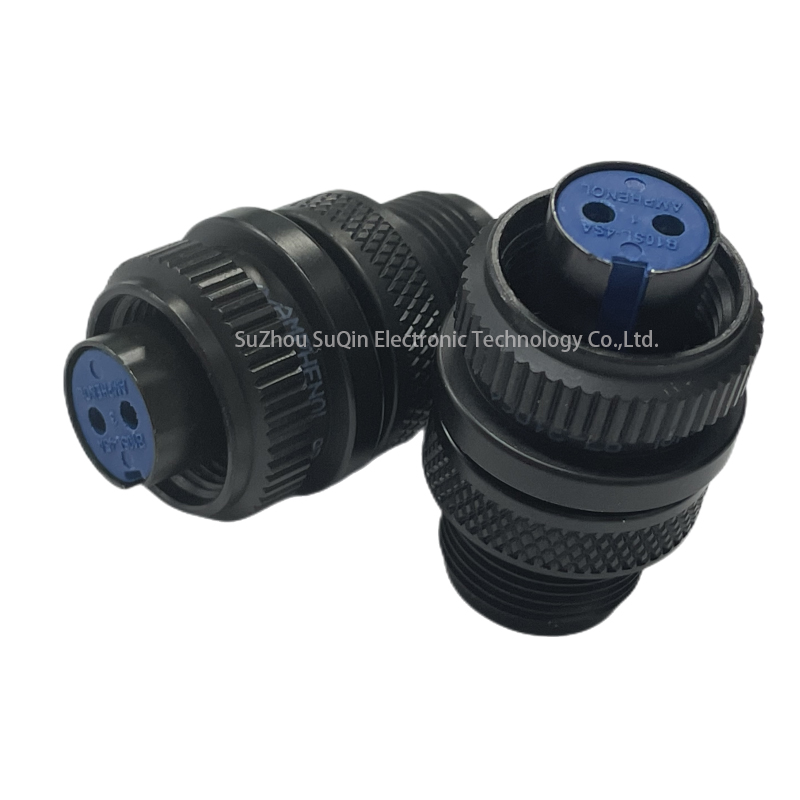

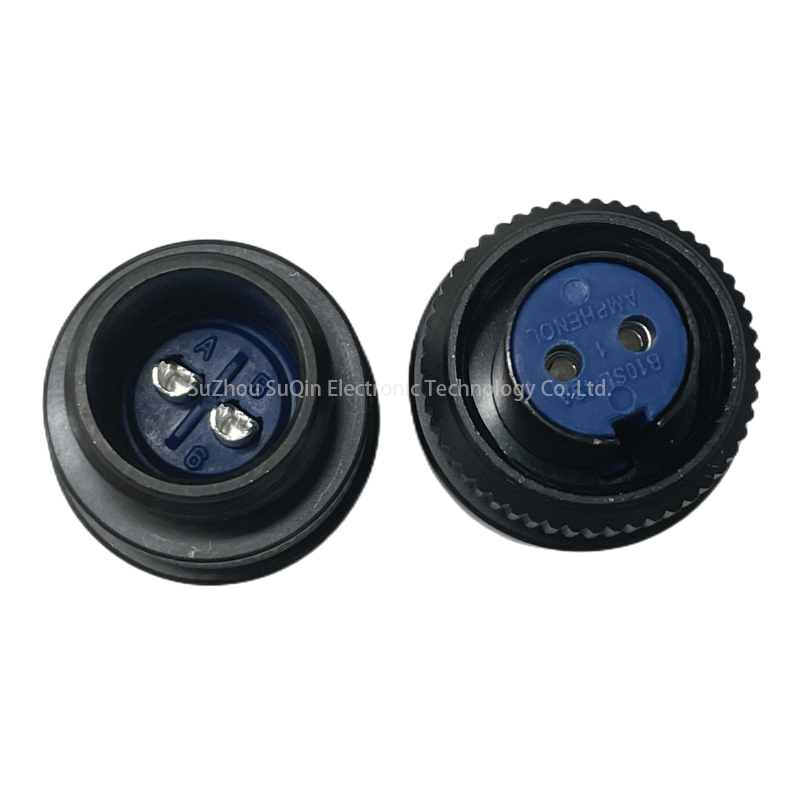

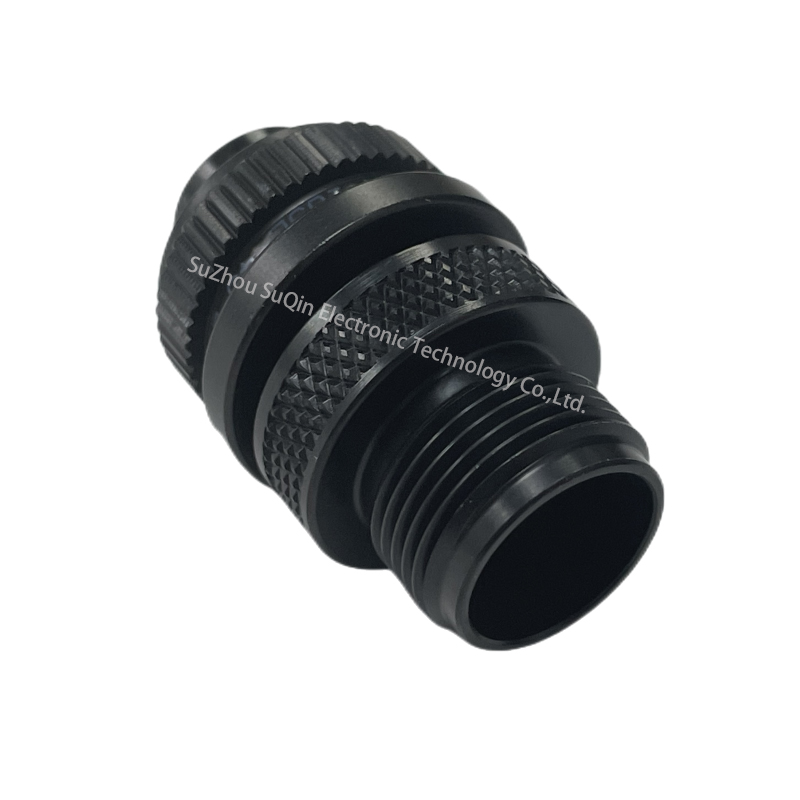

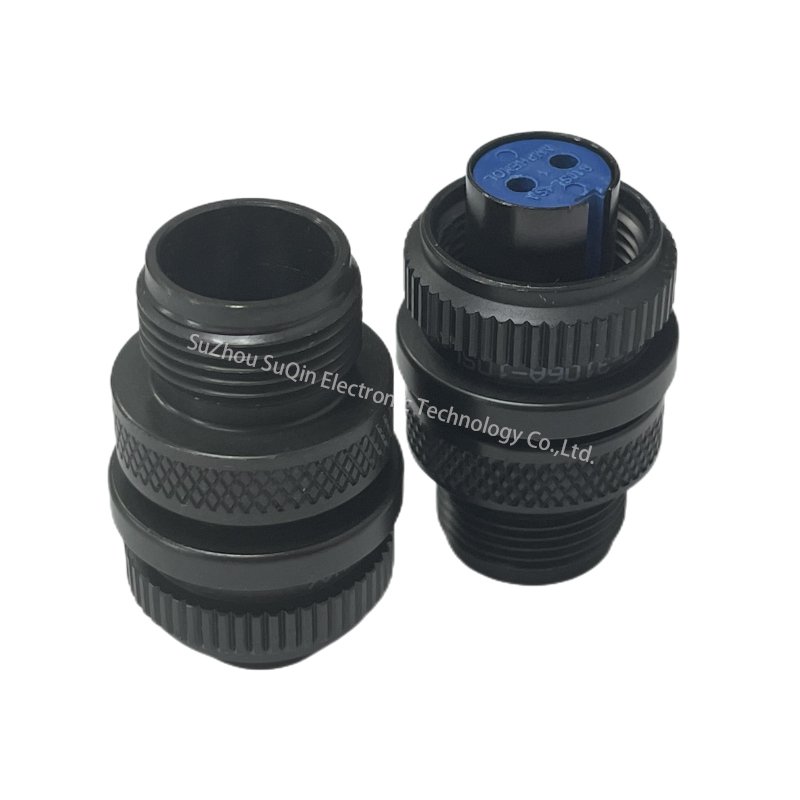

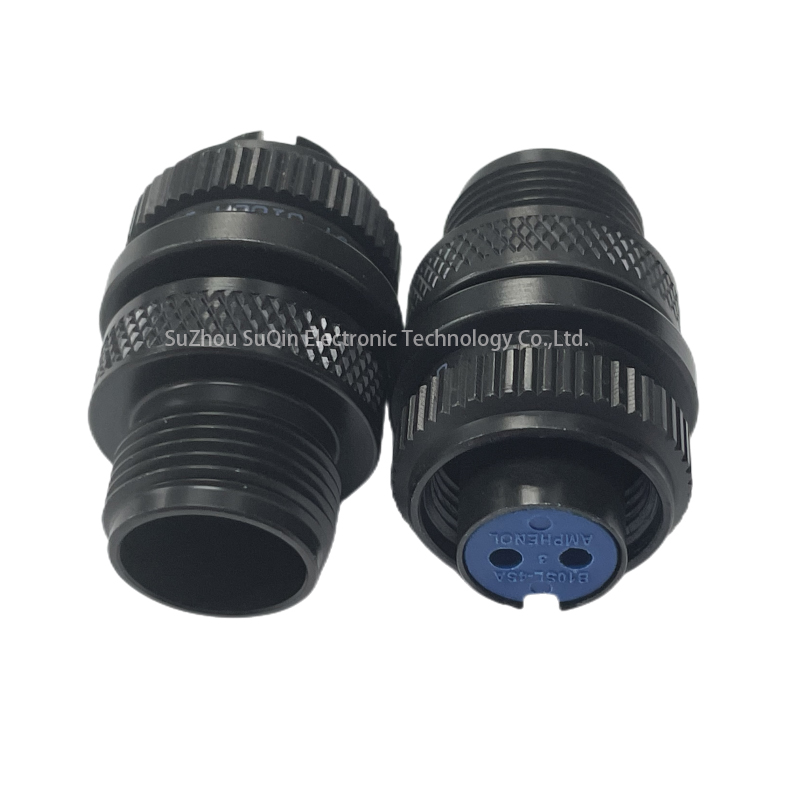

97-3106A-10SL-4S(946)|2 Position Female Plug Circular Connector
Short Description:
Description：Amphenol Industrial, 97 2 Way MIL Spec Circular Connector Plug,Shell Size 10SL
Current Rating:13A
Voltage Rating:700 V
Shell Size: 10SL
Availability: 400 in Stock
Min. Order Qty: 1
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Model Number：97-3106A-10SL-4S(946)
Connector Type：2-Pin Female Circular Socket (Receptacle)
Sealing Rating ：IP67 (dustproof and waterproof)
Wire Gauge：20–22 AWG (0.5–0.85 mm²)
Contact Material：Tin-plated brass (corrosion-resistant)
Temperature Range：-40°C to +125°C
Voltage Rating ：50V DC / 30V AC
Current Rating ：13A per contact (high-current capability)
Insertion Force：≤15 N (low insertion effort)
Withdrawal Force：≥5 N (secure retention)
Mating Cycles ：≥50 cycles (durable performance)
Insulation Resistance：≥100 MΩ @ 500V DC
Dielectric Strength：1,500V AC for 1 minute (high voltage tolerance)
Housing Material：PBT (flame retardant, UV resistant)
Seal Material：Silicone rubber (flexible & temperature-resistant)
Termination Method：Crimp (compatible with standard crimping tools)
Color Options：Black (standard)
Compliance：MIL-DTL-5015, AEC-Q200, RoHS compliant
Data Overview
| Connector Type | 2-Pin Female Circular Socket (Receptacle) |
| Contact Material | Tin-plated brass |
| Sealing Rating | IP67 |
| Wire Gauge | 20–22 AWG (0.5–0.85 mm²) |
| Current Rating | 13A |
Contact Features
| Termination | Solder cup |
| Shell material | Aluminum alloy |
| Features | Rear hull, coupling nut |
| Category | MIL Spec Circular Connector |
| Contact material | Copper alloy |
