AAUS01AS0-036K01
Short Description:
Model：AAUS01AS0-036K01
Brand：LOTES
Housing Material:PPE+PS
Color:Black
Product Applications :Automotive Battery Management System, ECU, Automotive Sensor
Product Detail
VIDEO
Product Tags
Product Name：AAUS01AS0-036K01 Automotive Connector (Female)
Brand：Lotes
Type：36-pin WTW Connector (Female)
Pitch：2.20mm
Key Color：Black (A)
Material：PBT (Polybutylene Terephthalate)
Rated Voltage：12V
Rated Current：3A
Dielectric Strength：1000V AC, 60s
Insulation Resistance：100MΩ @500V DC
Operating Temperature：-40℃ ~ 125℃
Durability Cycles：50 cycles
IP Rating (Mated)：IP2XB
Cable Cross-Section：0.22 ~ 0.75mm²
Compliance Standard：USCAR-2
Data Overview
| Type | 36-pin WTW Connector (Female) |
| Pitch | 2.20mm |
| Rated Voltage | 12V |
| Rated Current | 3A |
| Dielectric Strength | 1000V AC, 60s |
Contact Features
| Material | PBT (Polybutylene Terephthalate) |
| Key Color | Black (A) |
| Insulation Resistance | 100MΩ @500V DC |
| Operating Temperature | -40℃ ~ 125℃ |
| Durability Cycles | 50 cycles |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

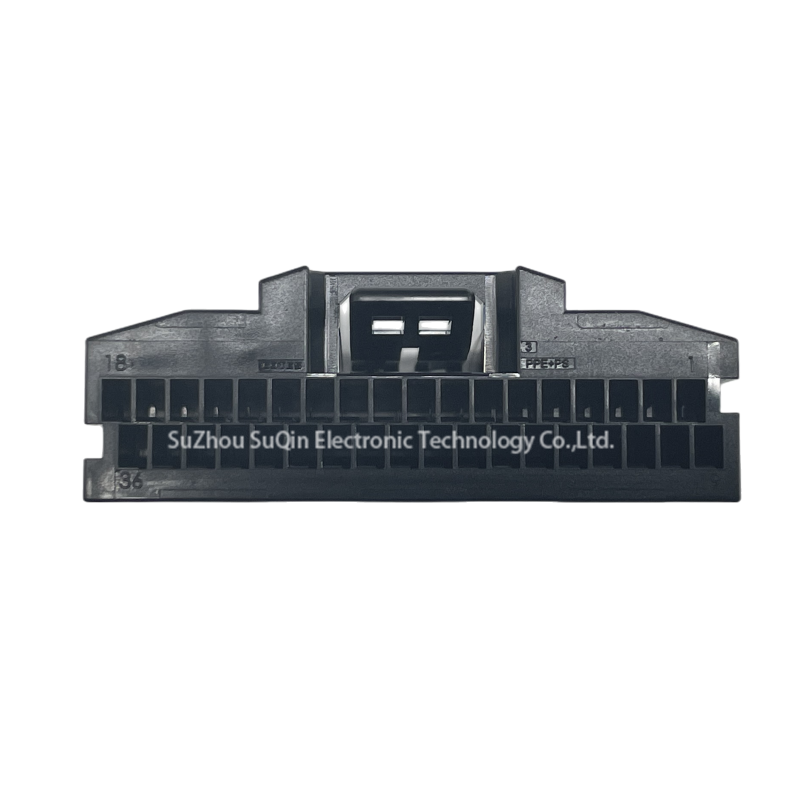

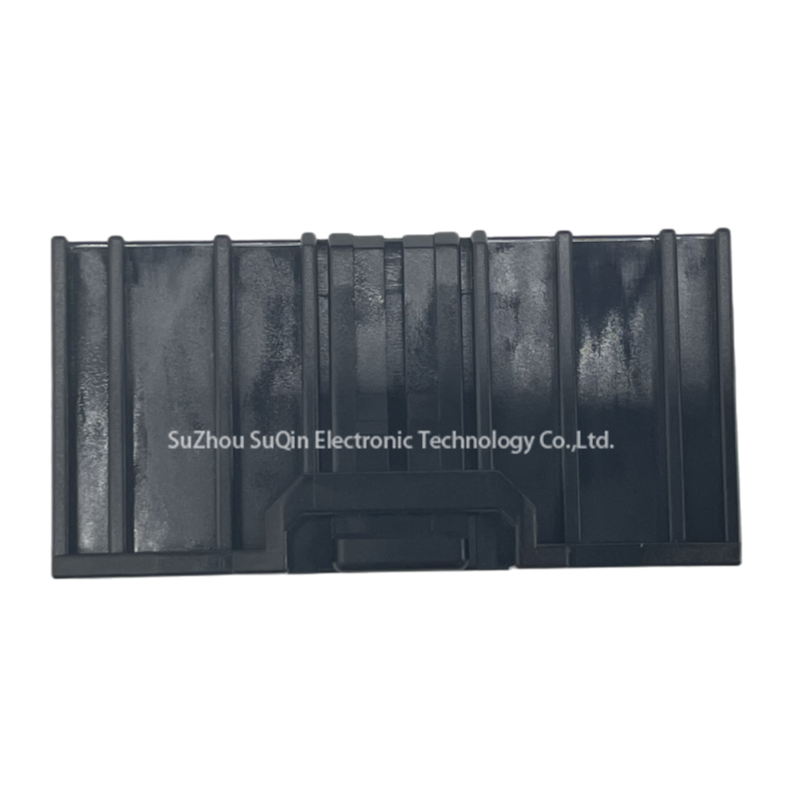

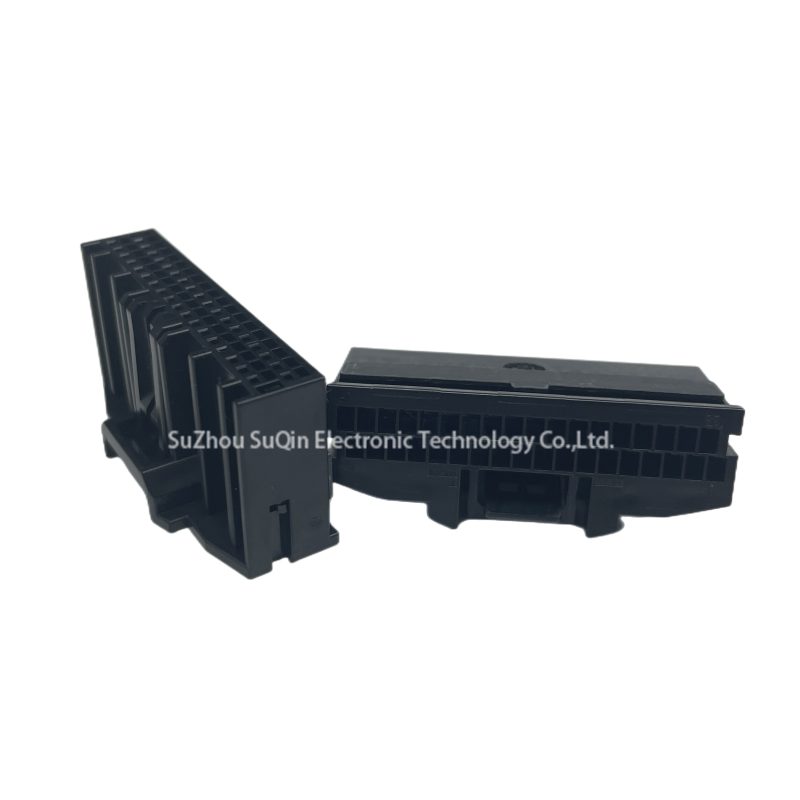

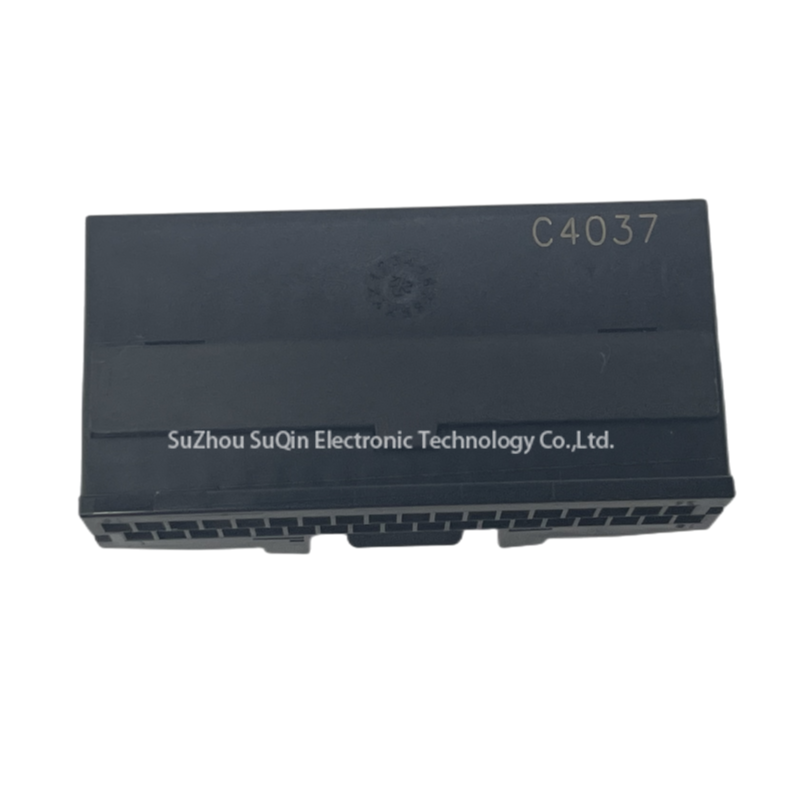

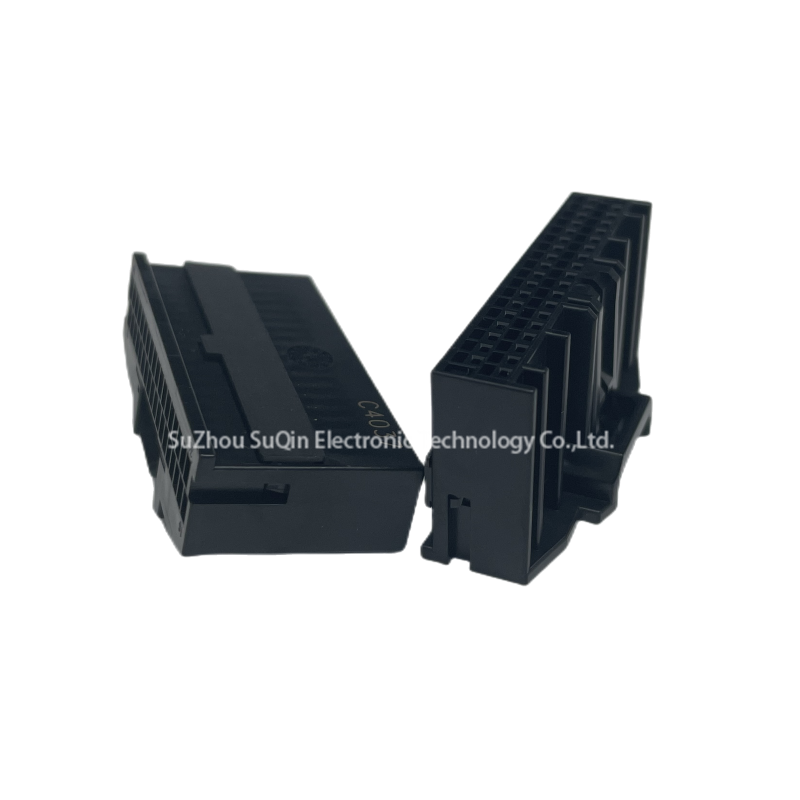

Product Display
