Amphenol AT04-08PA-EC01:Male Cable Connector 8pol A-Key, End Cap
Short Description:
part category:Male Cable Connector 8pol A-Key, End Cap
number of positions (w/o PE):8
gender:male
rated current (40 °C):13 A
IP-class mated:IP67
Product Detail
Product Tags

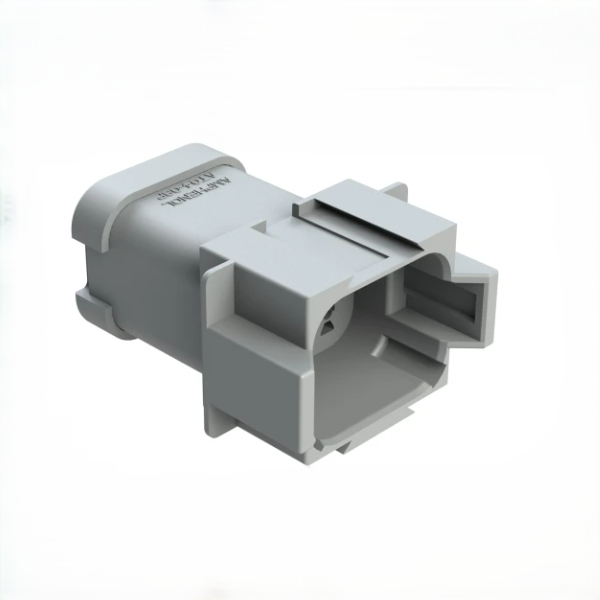

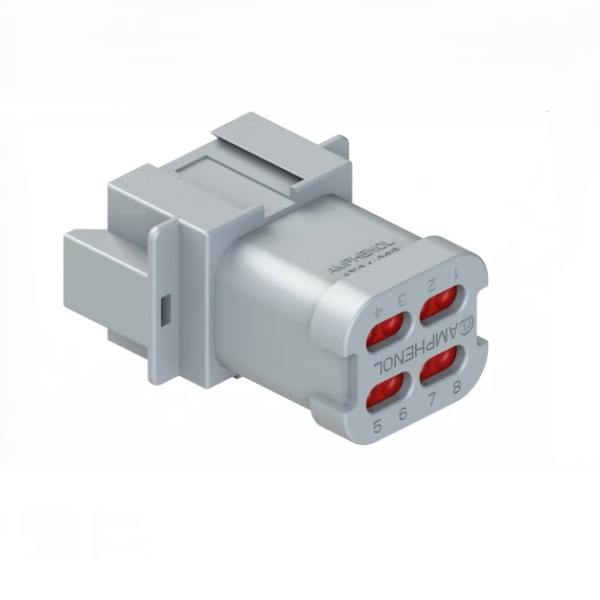

Amphenol AT04-08PA-EC01: 8-Pin Male A-Key End Cap Connector
Series：AT Series
Connector Type：Male, 8-way, A-key
End Cap Function：Protects connector assemblies
Compliance：RoHS certified, REACH compliant
Dimensions：23.7mm(W) × 47.5mm(D) × 36.4mm(L)
Mating Connector：AT06-08SA (requires AW8P wedge)
Current Rating ：7.5A per contact
Temperature Range：-55°C to +125°C
Environmental：IP67/IP68 (mated condition)
Data Overview
| rated voltage | 250 V |
| number of positions (w/o PE) | 8 |
| rated current (40 °C) | 13 A |
| wedge | AW8P |
| IP-class mated | IP67 |
Contact Features
| part category | male cable connector |
| gender | male |
| contact diameter | #16 |
| upper temperature | 125 GC |
| lower temperature | -55 GC |
