Amphenol AT04-08PA-PM11：8 Position Receptacle, Pin, Panel Mount, Self-Threading, Keyed A
Short Description:
PART NUMBER: AT04-08PA-PM11
No. of Positions: 8, A Key
Contact Size: 16
Contact Type (Pin/Socket): Pin
Gender: Male
Housing Material: Thermoplastic
Shape: Rectangular
Color: Grey
IP Rating: IP67 (in mated condition)
Product Detail
Product Tags
Amphenol AT04-08PA-PM11 8-Position Panel Mount Connector
Number of Positions:8
Gender:Female (Receptacle)
Contact Type:Pin (Male)
Wire Gauge Range：14-20 AWG
Current Rating ：13A
Voltage Rating ：N/A (typically 250V AC)
Insulation Resistance：1000 MΩ
Contact Material：Copper alloy
Housing Material：Thermoplastic (TP)
Color：Gray
Operating Temperature: -55°C to +125°C
Data Overview
| No. of Positions | 8, A Key |
| Contact Size | 16 |
| Amperage | 13A |
| Voltage Rating | 250V |
| IP Rating | IP67 (in mated condition) |
Contact Features
| Shape | Rectangular |
| Housing Material | Thermoplastic |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| Seal Material | Silicone Rubber |
| Operating Temperature | -55°C to +125°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

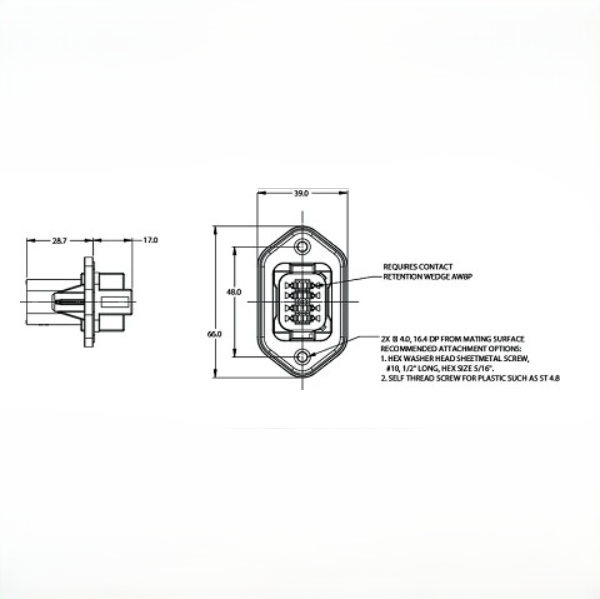

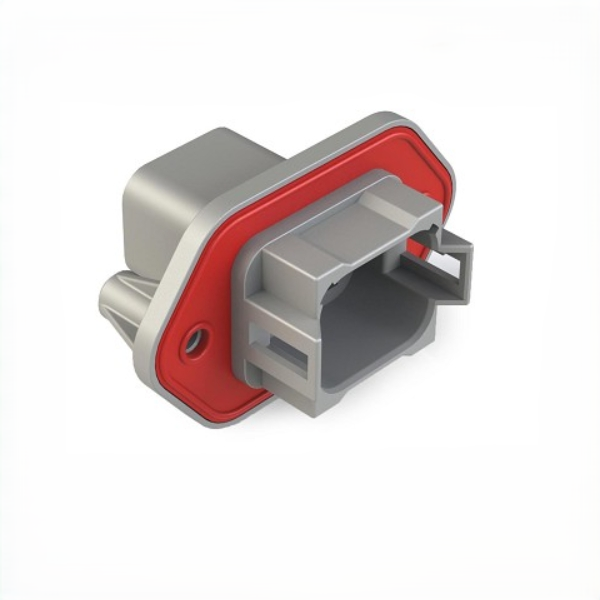

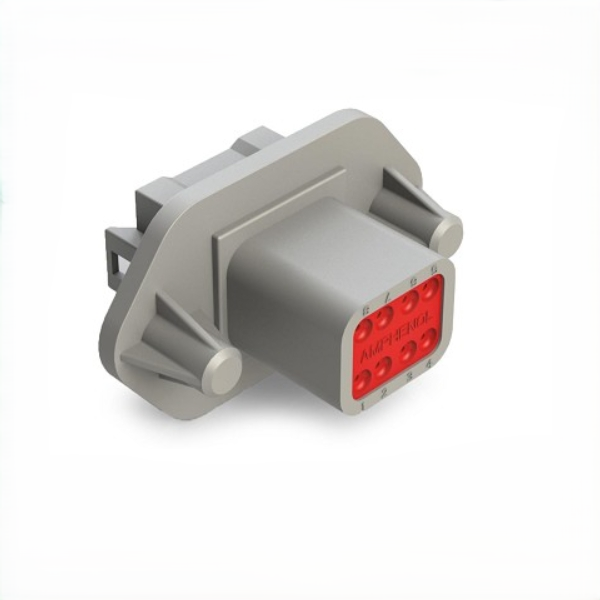

Product Display
