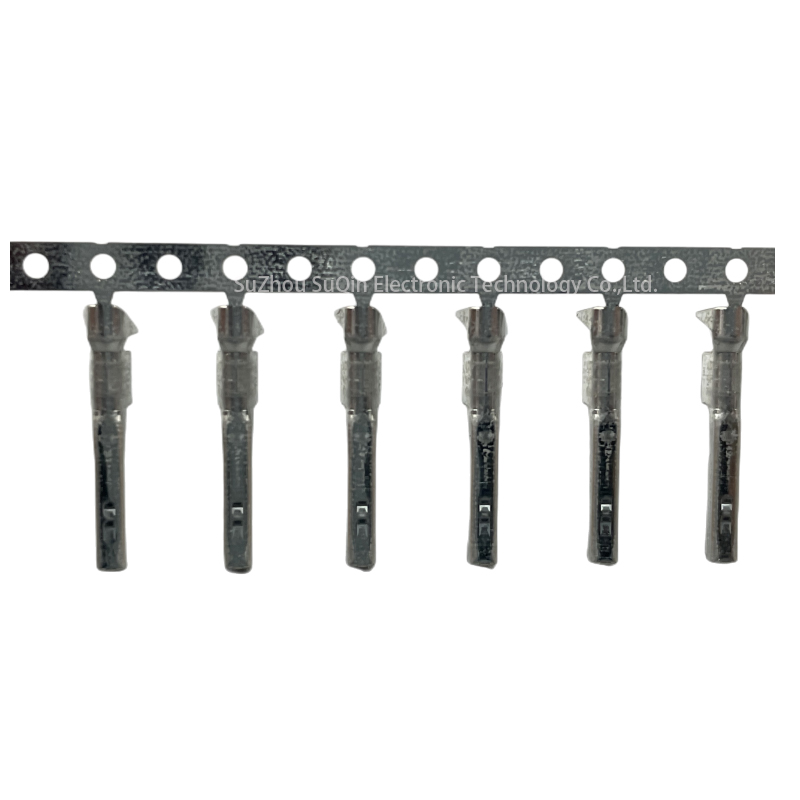

Amphenol N022524124C CONT M STAMPED SZ 12 10-12 AWG NI PLATING
Short Description:
Model：N022524124C
Brand：AMPHENOL
Material：Copper Alloy
Termination：Crimp
Characteristic：Cable Mount / Free Hanging
Application:Automotive
Gender:Female
Product Detail
VEDIO
Product Tags
Amphenol N022524124C Crimp Terminal
Brand：AMPHENOL
Model：N022524124C
Part Type ：Stamped Female Contact
Current Rating ：15A @ 85°C (20A pulse)
Voltage Rating ：48V DC (600V transient)
Contact Material：C15100 Copper Alloy
Plating：Nickel underplate + Matte Tin finish
Wire Range：10-12 AWG (2.5-4.0 mm²)
Crimp Height：3.2±0.1mm (Optimal compression)
Insertion Force：≤35N (Mating with MX34A housing)
Extraction Force：≥15N (Vibration-resistant)
Operating Temp：-40°C to +150°C
Data Overview
| Material | Copper Alloy |
| Wire Range | 10-12 AWG |
| Crimp Height | 3.2±0.1mm |
| Current Rating | 15A @ 85°C (20A pulse) |
| Voltage Rating | 48V DC (600V transient) |
Contact Features
| Termination | Crimp |
| Characteristic | Cable Mount / Free Hanging |
| Gender | Female |
| Plating | Nickel underplate + Matte Tin finish |
| Operating Temp | -40°C to +150°C |
