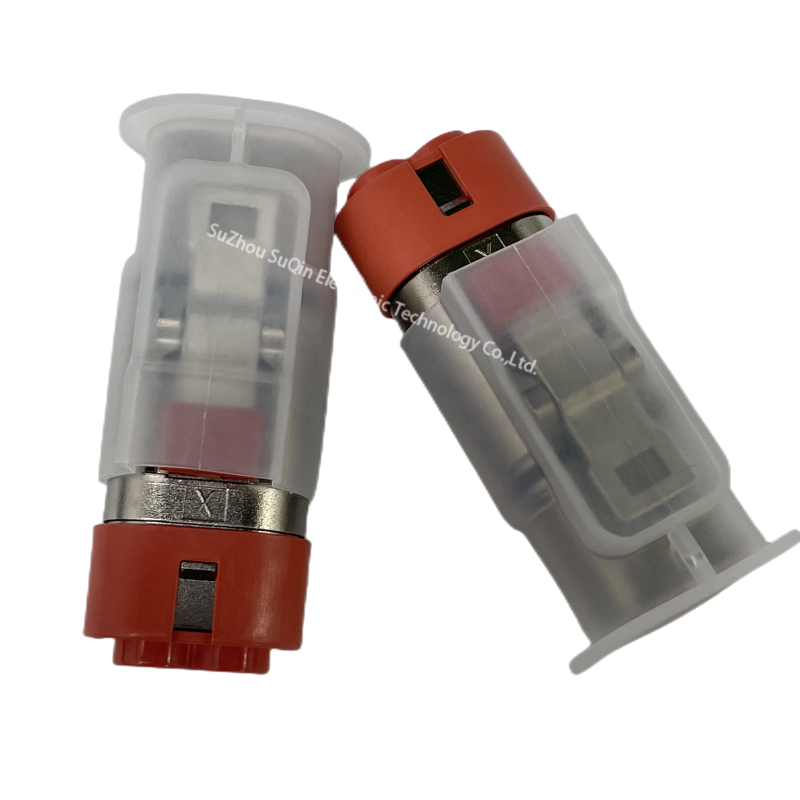

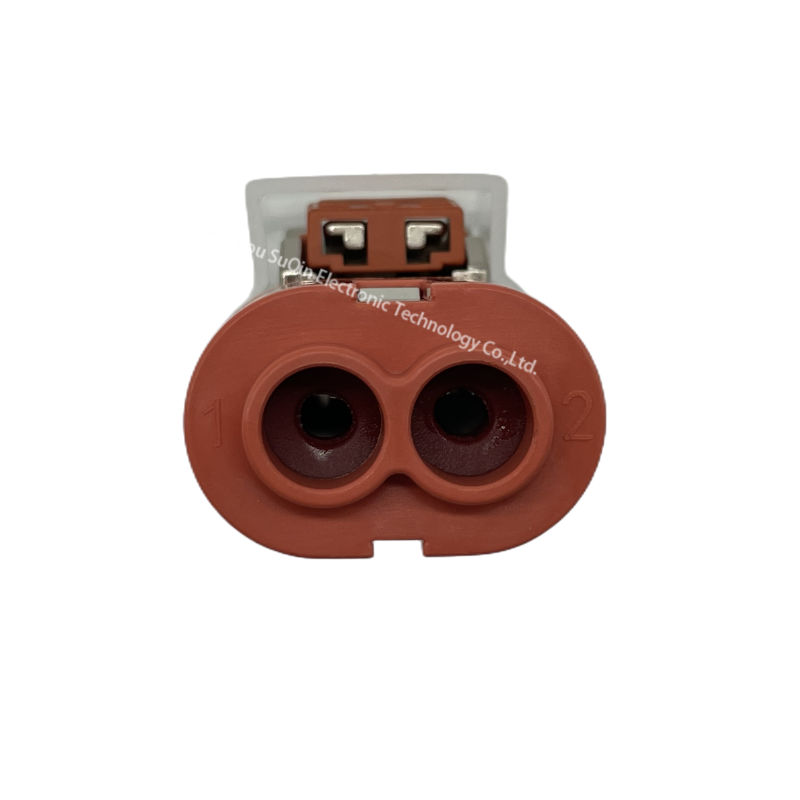

L182X-61-2.5：2 Position Rectangular Plug Connector
Short Description:
Product Name： Automotive Connectors
Model： PL182X-61-2.5
Brand： Amphenol
Material： Brass
Termination： Crimp
Type： Automotive Connectors, Socket (Female)
Gender： Female
Application：Automotive
Product Detail
VEDIO
Product Tags
L182X-61-2.5 is a high-reliability 2-position rectangular plug connector designed for industrial and aerospace applications.
Contact Arrangement：2-position vertical layout
Current Rating：5A per contact (max)
Voltage Rating：300V AC/DC
Contact Material：Beryllium copper with gold plating
Insulation Resistance：>1000MΩ at 500VDC
Operating Temperature：-55°C to +125°C
Mating Cycles：500+ (verified per MIL-STD-202G)
Housing Dimensions: 12.5mm(W) × 8.2mm(H) × 15.6mm(D)
Mounting Options: Panel mount with M2.5 screw fixation
Ingress Protection: IP67 rated when mated
Wire Gauge Compatibility: 22-16 AWG (0.5-2.5mm²)
Data Overview
| rated voltage | 1,000 V |
| rated current (40 °C) | 60 A |
| number of positions (w/o PE) | 2 |
| IP-class mated | IP67 |
| termination | crimp |
Contact Features
| part category | female cable connector |
| gender | female |
| high voltage interlock | YES |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
