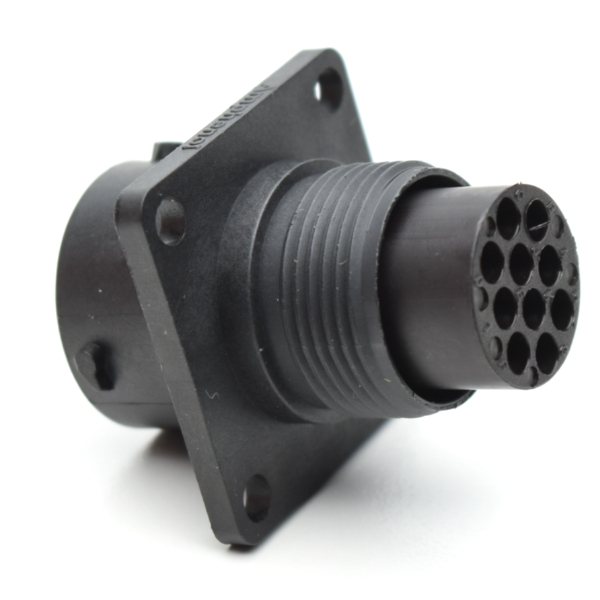

Amphenol RTS012N10P03:Receptacle, square flange
Short Description:
Tipo de accesorio: Square Flange Receptacle
Size: 12
No. of Contacts: 10
Contact Pin or Socket: Pin
Contact size: 20
Amperage: 5A(stamped) or 7.5A (machined)
Volt: 250
Product Detail
Product Tags
Amphenol RTS012N10PHEC03 Circular Connector
Product Type: Standard Circular Connector Receptacle with Square Flange Mount.
Position Count: 10-position female (socket) contacts.
Shell Size: 12
Voltage: 600V AC/DC.
Current: 13A per contact.
Wire Gauge Compatibility: 26–14 AWG.
Housing Material: Thermoplastic (UL 94 V-0 flammability rating).
Sealing: IP67/IP69K-rated for dust/water resistance (suitable for harsh environments).
Termination Type: Crimp contacts (supplied separately).
Mount Style: Square flange receptacle (panel-mounted).
Coupling Mechanism: Bayonet locking.
Backshell Accessory: Includes integrated pin sealing and reduced-diameter end cap.
Diameter: 19 mm.
Weight: 13.675 g (approximate).
Data Overview
| Shell Size | 12 |
| Contact size | 20 |
| Volt | 250 |
| Amperage | 5A(stamped) or 7.5A (machined) |
| IP Rating | IP67 / IP69k (in mated condition) |
Contact Features
| Contact Pin or Socket | Pin |
| Housing Material | Thermoplastic UL94 V-0 |
| Rohs Compliant | Yes |
| Gender | Male |
| Temperature Range | -40 to 125°C |
