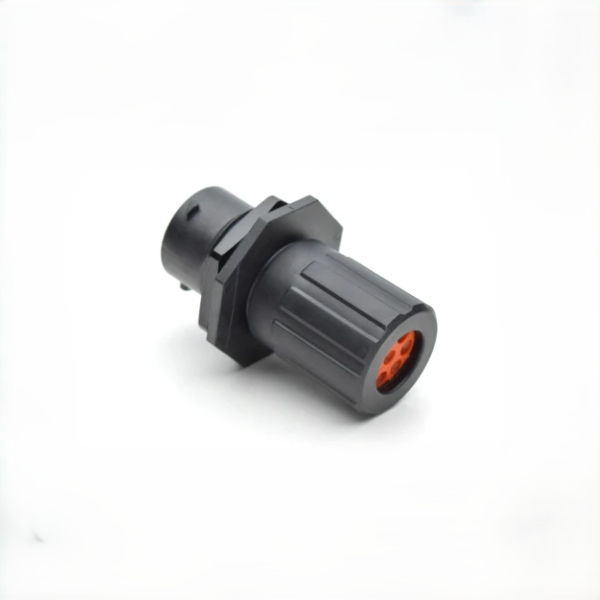

Amphenol RTS712N8PHEC03 Circular Connector Receptacle
Short Description:
RTS712N8PHEC03 Receptacle
Jam Nut
8 Positions
Size 12
Pin Contact
Silicone Rubber Seal
Endcap
Product Detail
Product Tags
Amphenol RTS712N8PHEC03 Circular Connector ReceptacleKey Features:
Design and Configuration:
8-position housing designed for male pins, with contacts sold separately for flexible customization.
Size 12 shell insert ensures compact, high-density integration in industrial setups.
Jam nut panel mount system allows for tool-free, front-side installation and enhances vibration resistance.
Includes a backshell and endcap for superior cable strain relief and environmental protection.
Durability and Materials:
Thermoplastic housing provides lightweight yet robust performance, suitable for harsh conditions.
Operating temperature range of -40°C to +90°C ensures reliability in extreme environments.
Electrical Specifications:
Voltage rating of 7.5V, optimized for low-power and signal applications.
Compact dimensions of 5.8mm (L) × 4.9mm (W) × 2.9mm (H) enable space-efficient designs.
Packaging and Compliance:
Ships in bulk packaging without included contacts, simplifying procurement and assembly.
RoHS-compliant, ensuring environmental safety and adherence to global standards.
Data Overview
| Shell Size | 12 |

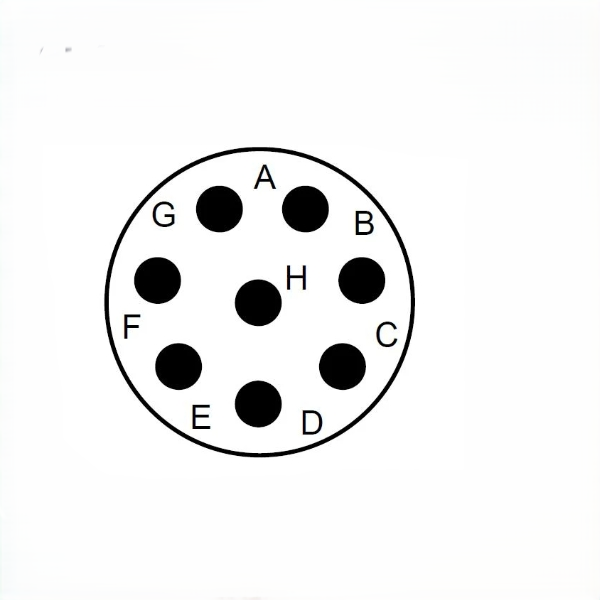

| No. of Contacts | 8 |
| Contact Size(s) | 16 |
| Contact Pin or Socket | Pin |
| AWG | 14-26 |
Contact Features
| Amperage | 13A |
| Volts | 500 |
| IP Rating | IP67 / IP69k (in mated condition) |
| Temperature Range | -40°C to +125°C |
| Salt Spray | >500h |
