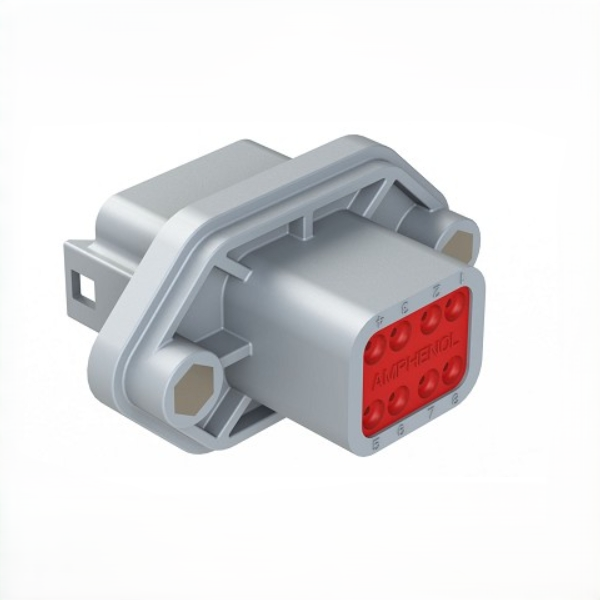

AT04-08PA-PM05 Automotive Connectors 8-Way Flange Mount Receptacle with Gasket, Pin, Threaded Amphenol
Short Description:
No. of Positions: 8-way
Contact Size: 16
Contact Type: Pin
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part(s): AT06-08SA* Plug
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Product Detail
Product Tags
Amphenol AT04-08PA-PM05 Automotive Connector
Connector Type:8-Way Flange Mount Receptacle with Gasket
Contact Gender:Male Pin (RP-Male)
Current Rating :13A per contact (continuous @125°C)
Voltage Rating :600V AC/DC
Wire Compatibility :20-14 AWG (0.5-2.0mm²)
IP Rating :IP67/IP69K (1m submersion proof)
Operating Temp:-55°C to +125°C
Housing Material:UL 94 V-0 flame-retardant thermoplastic (Gray)
Mounting Style:Panel mount with flange and threaded locking

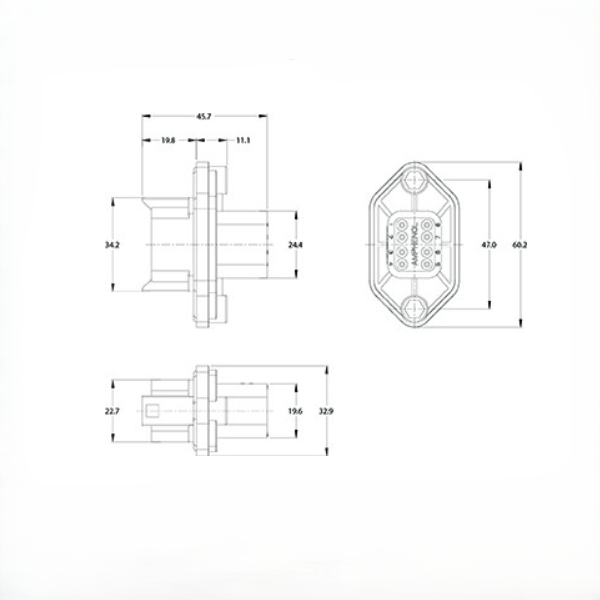

Dimensions (W×H×D):20.7mm × 26.1mm × 43.8mm
Data Overview
| Contact Size | 16 |
| Amperag | 13A |
| No. of Positions | 8-way |
| Seal Wire Range (mm) | 2.24mm - 3.68mm |
| IP Rating | IP67 (in mated condition) |
Contact Features
| Housing Material | Thermoplastic |
| Seal Material | Silicone Rubber |
| Color | Grey |
| Wedgelock Part Number | AW8P |
| Operating Temperature | -55°C to +125°C |
