AT04-12PA-EC01Automotive Connectors12-Way Receptacle, Male Connector with A Position Key and Extended Shroud and End Cap Amphenol
Short Description:
PART NUMBER: AT04-12PA-EC01
No. of Positions: 12, A Key
Contact Type (Pin/Socket): Pin
Gender: Male
Housing Material: Thermoplastic
Color: Grey
IP Rating: IP67 (in mated condition)
Seal Diameter: 2.24mm (.088″) – 3.68mm (.145″)
Wedge Part#: AT06-12SA* Plug
Product Detail
Product Tags
Amphenol AT04-12PA-EC01 Automotive Connector: 12-Way Receptacle with Keyed A Configuration
Number of Positions：12
Gender：Female (Receptacle)
Contact Type：Pin (Male)
Wire Gauge Range ：14-20 AWG
Current Rating ：13A
Voltage Rating ：250V AC (typical)
Insulation Resistance：1000 MΩ
Contact Material：Copper alloy
Housing Material：Thermoplastic (TP)
Color：Gray
Protection Rating：IP67
Operating Temperature：-55°C to +125°C
Data Overview
| Amperage | 13A |
| No. of Positions | 12, A Key |
| Contact Size | 16 |
| Voltage Rating | 250V |
| IP Rating | IP67 (in mated condition) |
Contact Features
| Contact Type (Pin/Socket) | Pin |
| Gender | Male |
| Housing Material | Thermoplastic |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| Operating Temperature | -55°C to +125°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

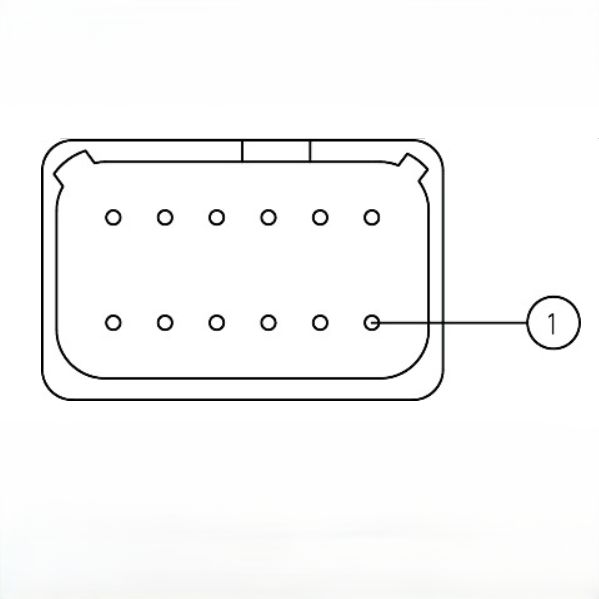

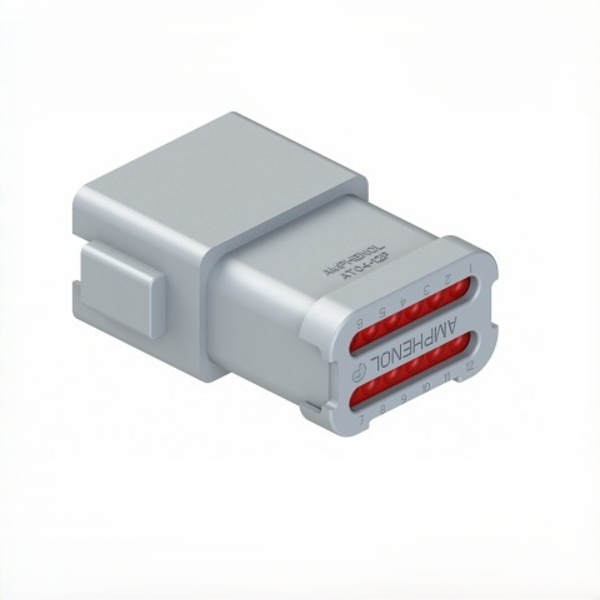

Product Display
