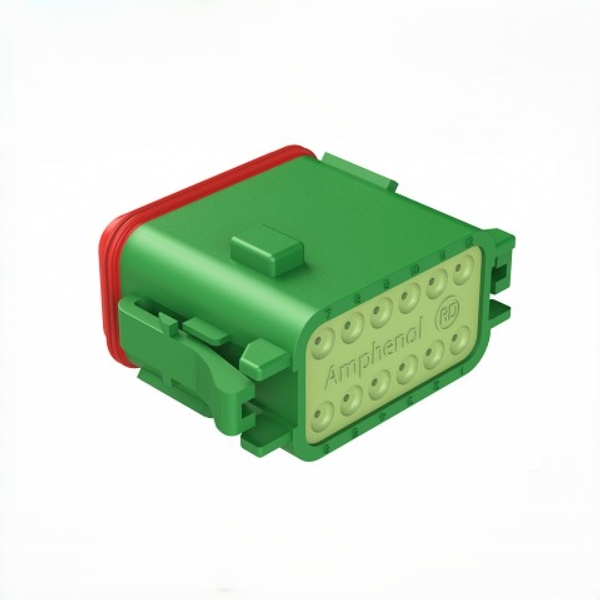

AT06-12SC-RD01 Amphenol SINE Systems 12-Way Plug, Female
Short Description:
AT06-12SC-RD01 12-Way Plug
Female
C Position Key
Reduced Diameter Seal (E-Seal)
Comparable to PN# DT06-12SC-C015
Product Detail
Product Tags
Amphenol AT06-12SC-RD01 Automotive Connector12-position IP67-sealed receptacle for harsh-environment wiring systems。
ParameterDetails
Configuration：12-position female receptacle (cable-mounted) with locking latch
Contact Type：Socket contacts (sold separately)
Wire Compatibility：20-14 AWG wires
Electrical Rating： 13A / 60V DC
Sealing：IP67-rated – Dustproof/waterproof (1m immersion, 1h)
Housing Material：Red UL94 V-0 thermoplastic (fuel/chemical/UV resistant)
Temp Range：-55°C to +125°C (operational)
Data Overview
| Product Type | Plug |

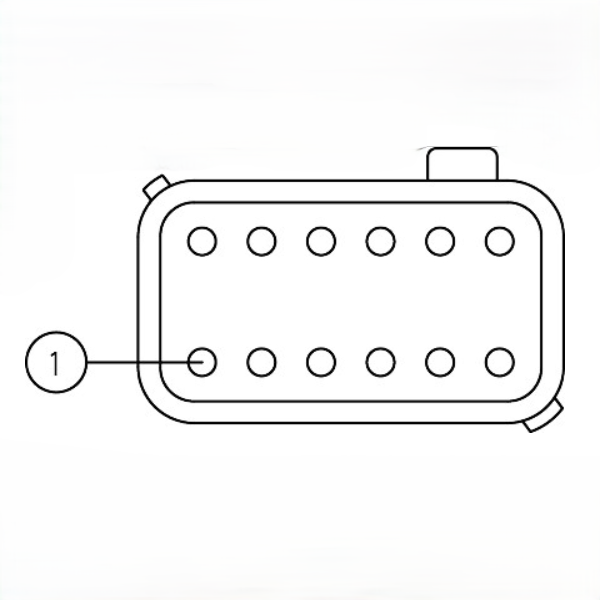

| Number of Positions | 12-Way C Position Key |
| Contact Size | 16 |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| Amperage | 13A |
Contact Features
| Contact Type | Socket |
| Color | Green |
| End Cap/Rear Seal Dimensions | .053" - .120" |
| Wedgelock Part Number | AW12S |
| Mating Part(s)* | AT04-12PC* Receptacle |
