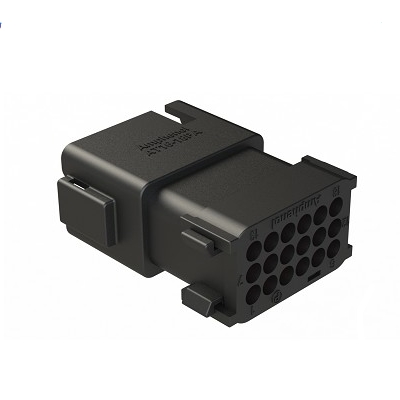

AT16-18PA-K004 18-Way Receptacle End Cap Amphenol
Short Description:
No. of Positions: 18
Contact Size: 16
Contact Type (Pin/Socket): Pin
Wire Range: 14-20 AWG
Amperage: 13A
Gender: Male
Operating Temperature: -55°C to +125°C
Product Detail
Product Tags
18-Way Receptacle End Cap, Pin, Keyed A,Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Introduce
Amphenol SINE Systems AT16-18PA-K004 18-Way Receptacle End Cap: Sealed protective cover for unused 18-position receptacles, IP67/IP69K-rated (-40°C to +125°C), featuring rugged thermoplastic construction for dust/moisture protection in automotive/industrial environments. Tool-free snap-fit design ensures secure sealing and compatibility with AT16 series connectors, compliant with USCAR-2, UL 1977, and RoHS standards.
Contact Features
| IP Rating |
IP67 (in mated condition) |
| Seal Diameter | 2.24mm (.088") - 3.68mm (.145") |
| Housing Material | Thermoplastic |
| Seal Material | Silicone Elastomer |
| Mating Part | AT16-18SA* Receptacle |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
