ATP06-4S-BLK Connectors 4-Way Plug,Female Amphenol
Short Description:
Product Type: Plug
Number of Positions: 4-Way
Contact Size: 12
AWG: 10-14
Amperage: 25A
Product Detail
Product Tags

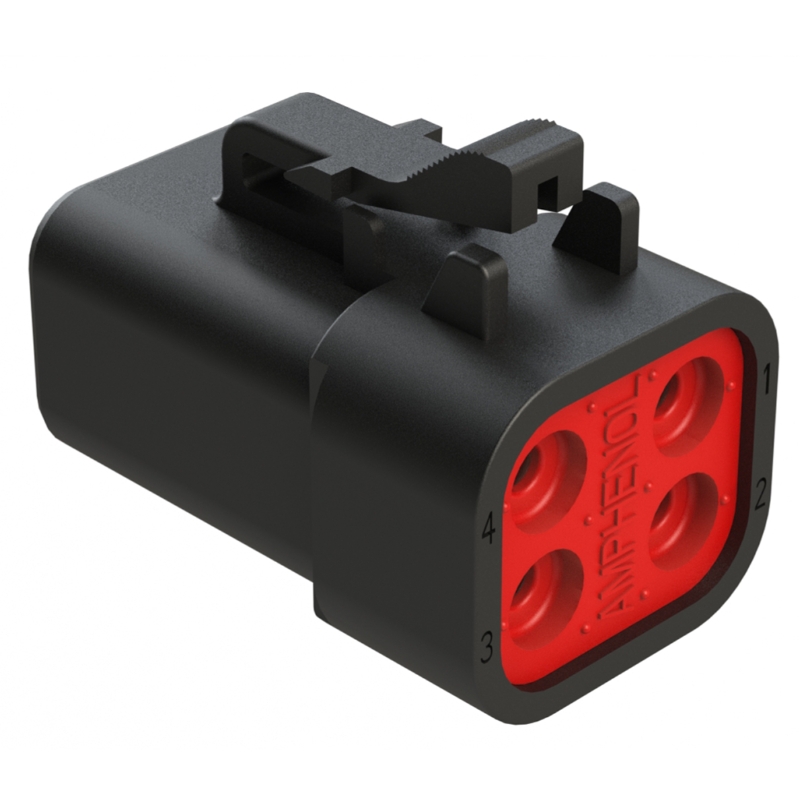

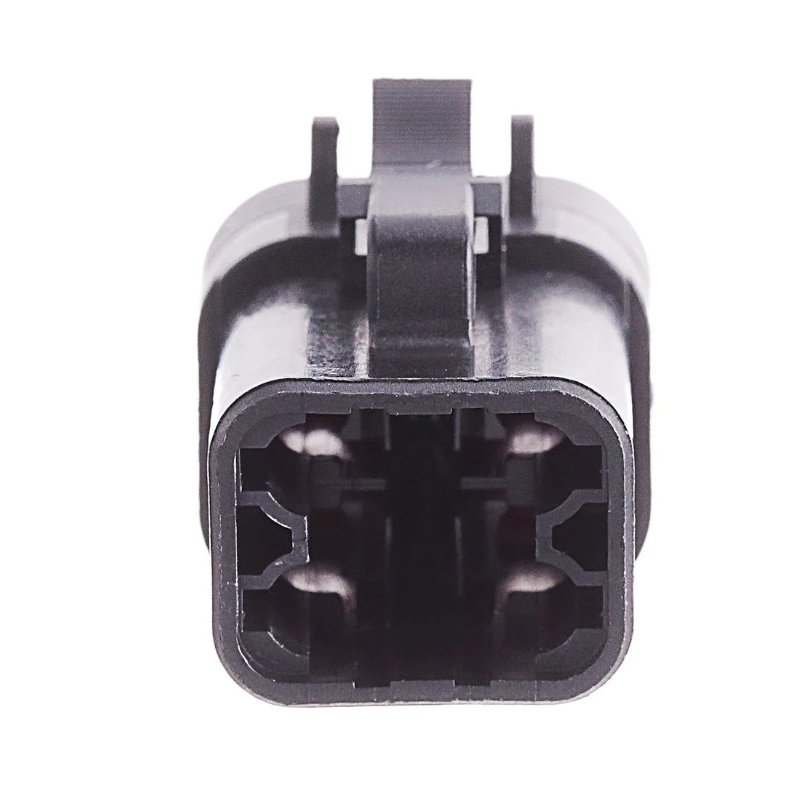

ATP06-4S-BLK Amphenol 4-Position Automotive Plug Connector
Model Number: ATP06-4S-BLK (4-way plug, female contacts).
Manufacturer: Amphenol SINE Systems.
Position Count: 4 positions, arranged in a 2-row configuration.
Current Rating: 25A continuous current handling per contact.
Voltage Rating: 600V AC/DC (standard for automotive connectors).
Wire Gauge Compatibility: 10 AWG to 14 AWG wires.
Temperature Range: -55°C to +125°C for extreme environment resilience.
IP Rating: IP67-certified for dust and water resistance (temporary immersion up to 1m depth).
Housing Material: Thermoplastic (TP) with UL 94 V-0 flammability rating.
Contact Type: Socket (female) with thermoplastic insulation.
Insulation Resistance: 1000 MΩ minimum.
Mounting Style: Free-hanging cable mount with straight plug design.
Color: Black (BLK designation).
Data Overview
| Number of Positions | 4-Way |
| Contact Size | 12 |
| Wire Range | 10-14 AWG (5.0-2.0mm²) |
| Amperage | 25A |
| IP Rating | IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition) |
Contact Features
| Product Type | Plug |
| Contact Type | Socket |
| Color | Black |
| Mating Part(s) | ATP04-4P* Receptacle |
| Wedgelock Part Number | AWP-4S |
