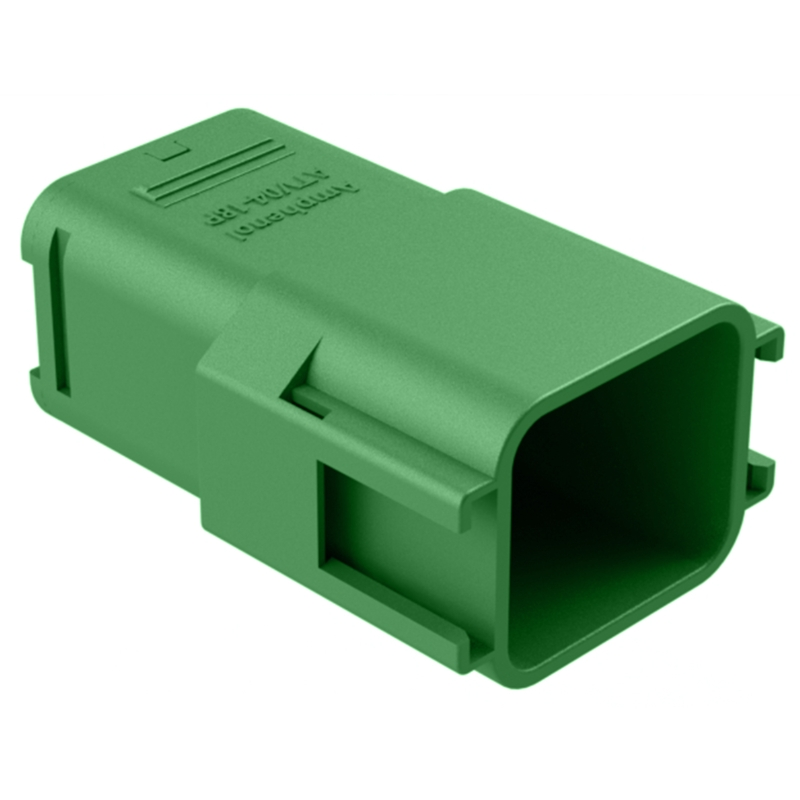

ATV04-18PC Amphenol 18 position in-line receptacle
Short Description:
ATV04-18PC 18 position in-line receptacle
Size 16 contact
key C
Green
IP68 (in mated condition)
14-20 AWG (2.0-0.5mm²)
Product Detail
Product Tags
ATV04-18PC Amphenol 18-Position In-Line Receptacle
Model Number: ATV04-18PC-RR01 (inline key C variant).
Manufacturer: Amphenol.
Position Count: 18 positions, arranged in a 3-row configuration.
Current Rating: 13A continuous current handling capability.
Wire Gauge Compatibility: Supports 22 AWG to 16 AWG wires (14-22 AWG range confirmed).
Temperature Range: Operational from -55°C to +125°C, ensuring performance in extreme conditions.
IP Rating: IP67 certified for protection against dust and temporary immersion in water.
Housing Material: Thermoplastic (TP), with UL 94 V-0 flammability rating for enhanced safety.
Mounting Style: Free-hanging in-line (flangeless) with straight installation.
Contact Type: Female receptacle with snap-fit termination.
Packaging: Supplied in bulk with a factory pack quantity of 25 units.
Data Overview
| No. of Positions | 18 |
| Amperage | 13 A |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| Volts | 250 V |
| IP Rating | IP68 (in mated condition) |
Contact Features
| Contact Type (Pin/Socket) | Pin |
| Gender | Male |
| Color | Green |
| Housing Material | Thermoplastic |
| Operating Temperature | -55°C to +125°C |
