7282-6560-40: Automotive Connector， Product Engineer， Auto connector FOR YAZAKI
Short Description:
Category: Connector
Manufacturer:YAZAKI
Termination: Crimp
Availability:10000in Stock
Min. Order Qty:1000
Standard Lead Time When No Stock:3-5Working Days
Product Detail
VIDEO
Product Tags
7282-6560-40 Automotive Connector – YAZAKI
Key Features & Technical Data
Part Number：7282-6560-40
Brand：YAZAKI (矢崎)
Connector Type：Female Housing with CPA (Connector Position Assurance)
Poles：4-Position
Tab Width：0.64mm (0.025 inches)
Material：PBT (Polybutylene Terephthalate), Light Gray
Current Rating ：5A (Reference)
Voltage Rating ：1000V AC (1 min withstand)
Temperature Range：-40°C to +100°C
Environmental Compliance：RoHS, ELV (End-of-Life Vehicles Directive)
Data Overview
| Classified Parts | Housing |
| Tab size (mm) | 0.64 |
| Number of Poles | 4 |
| Materials | PBT |
| Allowable Current(Ref.) | 5A(Ref) |
Contact Features
| Family | YES/YESC Kaizen Connector 0.64X0.8 |
| Connection Type | Wire Harness Connector |
| Male/Female | Male |
| Unsealed/Seald | Unsealed |
| Temperature Range | -40 to 100deg.C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

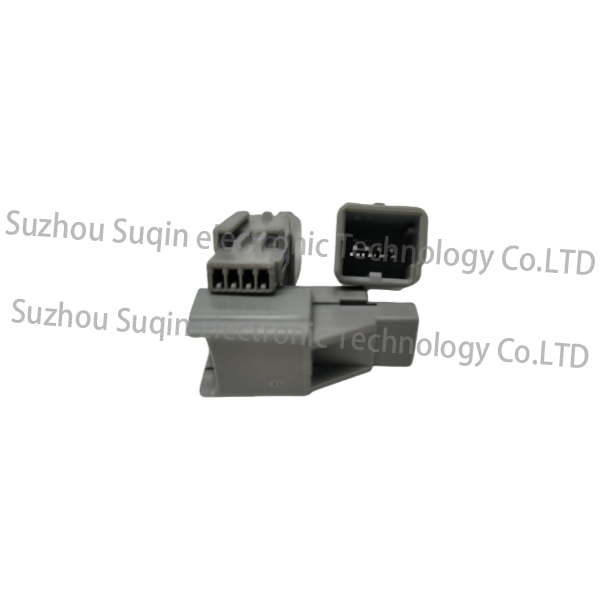

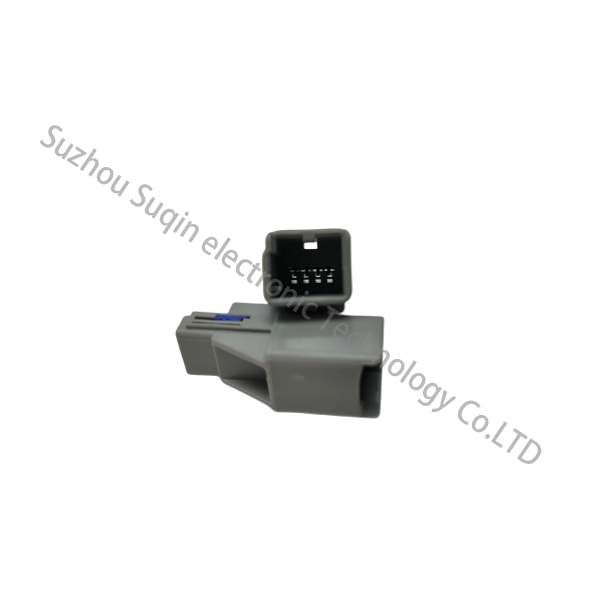

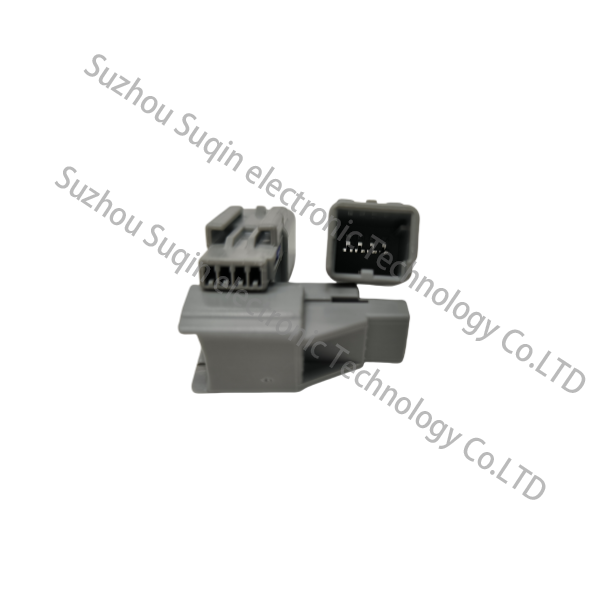

Product Display
