Automotive Plug BMS Series Connector AAUS01DS0-036K01
Short Description:
Model number：AAUS01DS0-036K01
Brand：LOTES
Housing Material PPE+PS
Product Overview：Automotive Plug
Product Applications Automotive Battery Management System, ECU, Automotive Sensor
Product Detail
Product Tags
Manufacturer:LOTES
Product Name :Automotive Plug BMS Series Connector AAUS01DS0-036K01
Model Number:AAUS01DS0-036K01
Type:36-pin female connector for Automotive BMS (Battery Management System)
Color:Brown (DS0 variant)
Material:PBT (Polybutylene Terephthalate)
RoHS Compliance:Yes
Rated Voltage:12V
Rated Current :3A
Dielectric Withstanding Voltage:1000V AC, 60s
Cable Cross-Section Area:0.22–0.75 mm²
Operating Temperature Range:-30°C to +130°C
Dimensions:(L × W × H) 6.7mm × 1.3mm × 2.7mm
Contact Plating:Material Copper Alloy
Data Overview
| Rated Current | 3A |
| Rated Voltage | 12V |
| Dielectric Withstanding Voltage | 1000V AC (60s) |
| Cable Cross-Section Area | 0.22–0.75mm² |
| Termination Method | Crimp |
Contact Features
| Product Type | 36-Pin WTW Connector (Female) |
| Series | Automotive Plug BMS Series |
| Color | Brown |
| RoHS Compliance | Yes |
| Housing Material | PPE+PS |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

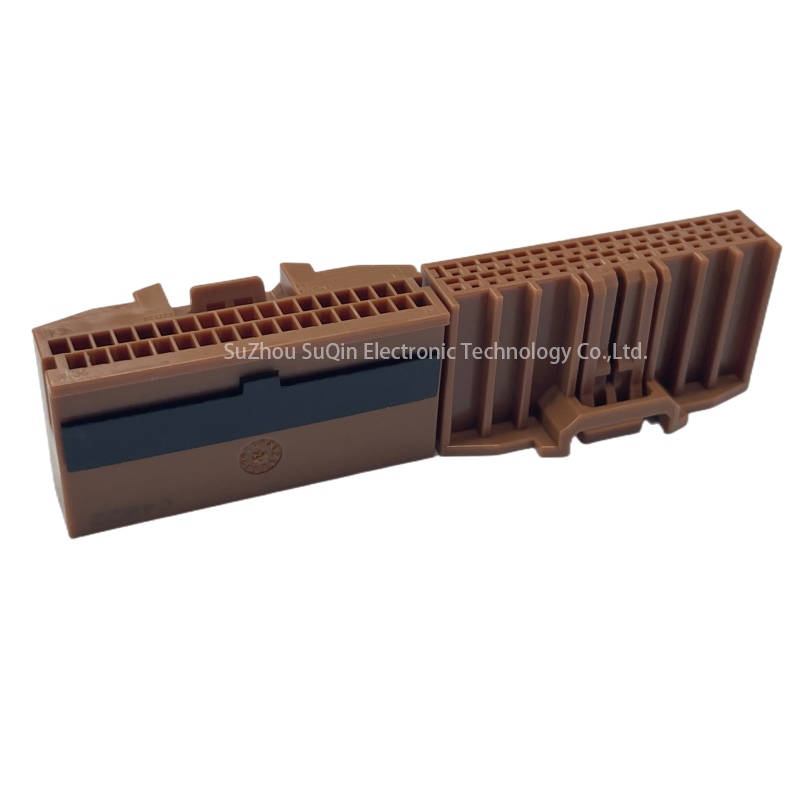

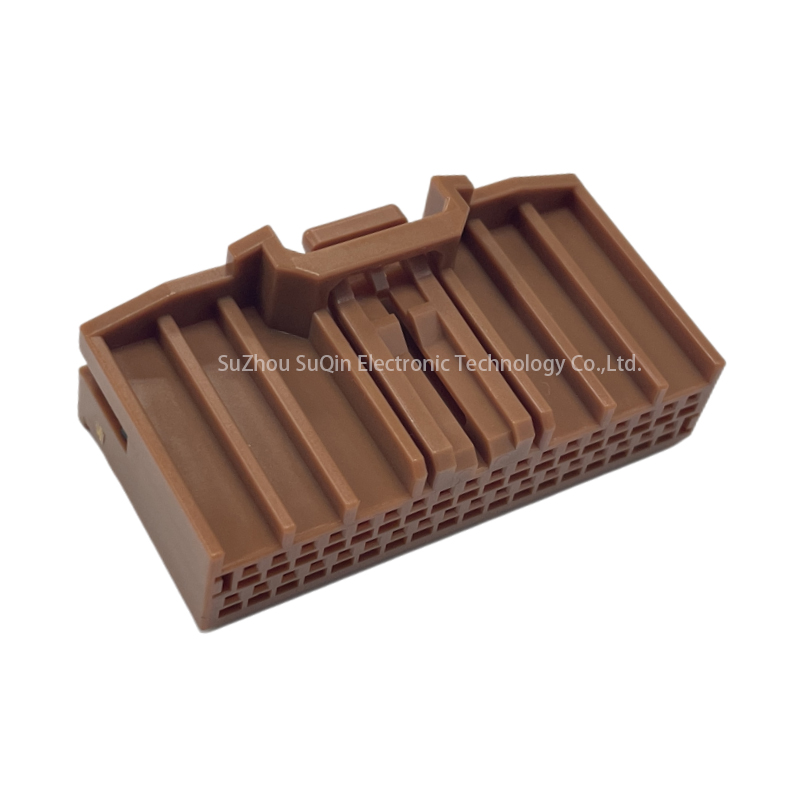

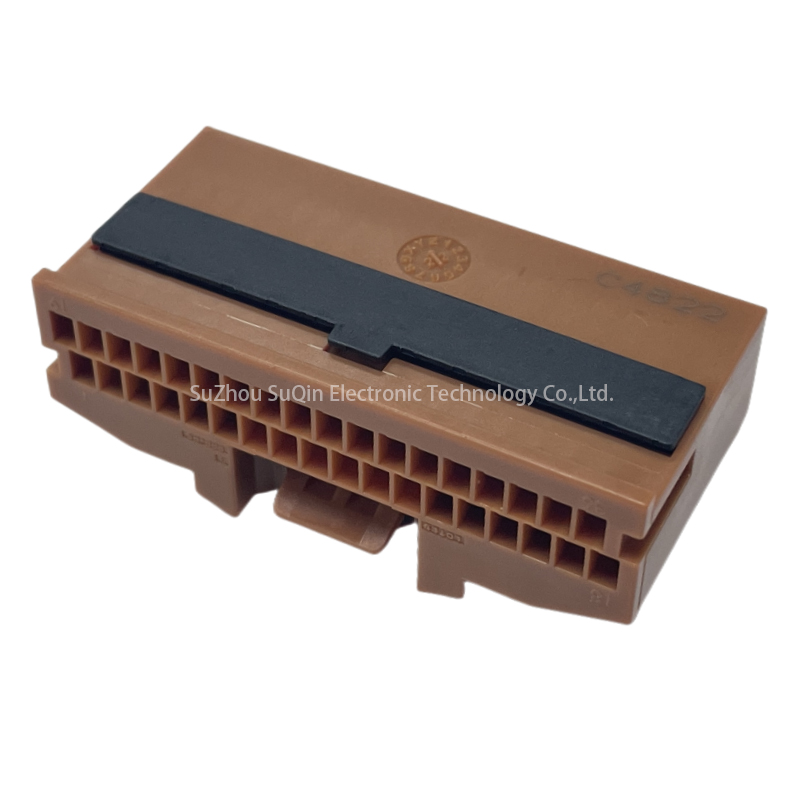

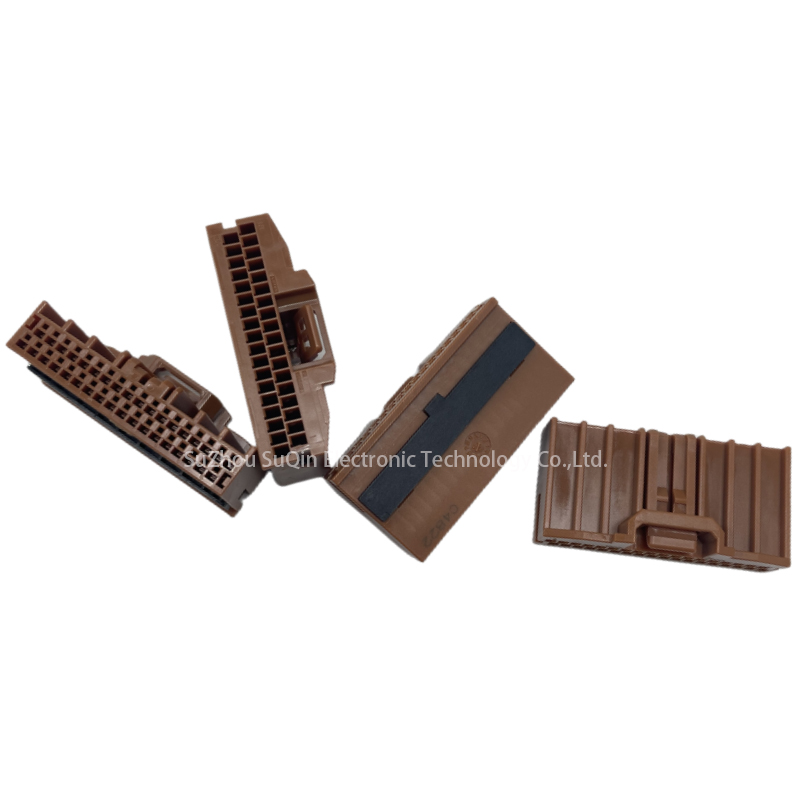

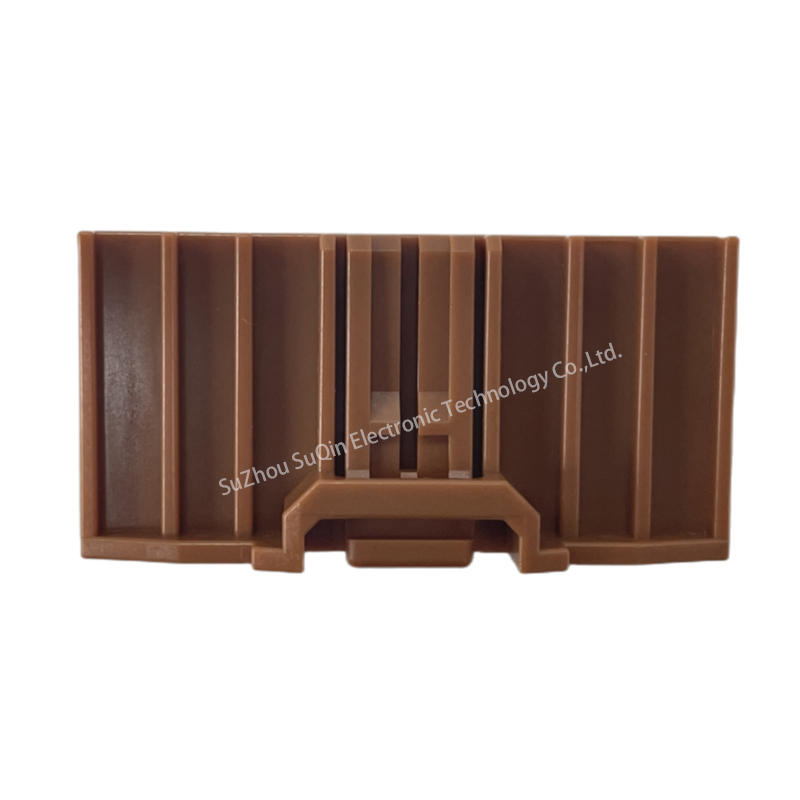

Product Display
