C091 31N004 100 2 Connectors M16 Front mounting female metal receptacle with O-ring seal and ring nut mount Amphenol
Short Description:

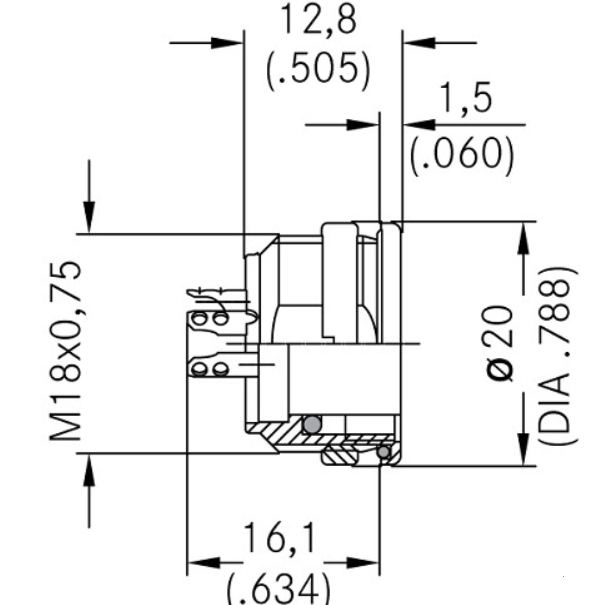

C091 31N004 100 2 – M16 Front mounting female metal receptacle
with O-ring seal and ring nut mount

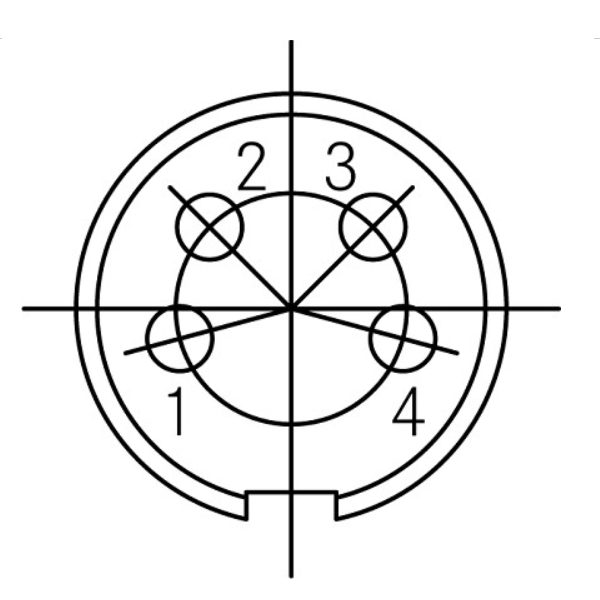

4 contacts
silver plated
Contacts included
Comparable to PN# 09-0112-00-04
Product Detail
Product Tags
Amphenol C091 31N004 100 2 Connector
Manufacturer:Amphenol Tuchel (C091 Series)
Model Number:C091 31N004 100 2
Connector Type:4-pin female receptacle, front panel mount
Mounting Style:Ring nut with O-ring seal (IP67-rated when mated)
Locking Mechanism:Metal ring nut for vibration resistance
Contact Plating:Silver-plated contacts (3A current rating)
Termination:Solder cup terminals
Compliance:IEC 61076-2-106 standard
Operating Voltage:150V AC/DC
Key Feature:EMI shielding in locked position
IP Rating:IP67 (dust/waterproof)
Temperature Range:-40°C to +85°C
Housing Material：Nickel-plated metal
Seal Type：Integrated O-ring
Data Overview
| Contacts | 4 |
| Current Rating | 10A |
| Termination | Solder |
| Wire Gauge | 0.5 mm² (20 AWG) |
| Protection | IP67/ 65 (in mated condition) |
Contact Features
| Locking | Screw |
| Contact Plating | Silver |
| Insert | Thermoplastic |
| Version | Ring Nut, Metal |
| Housing | Zinc Die Cast, Nickel Plated |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

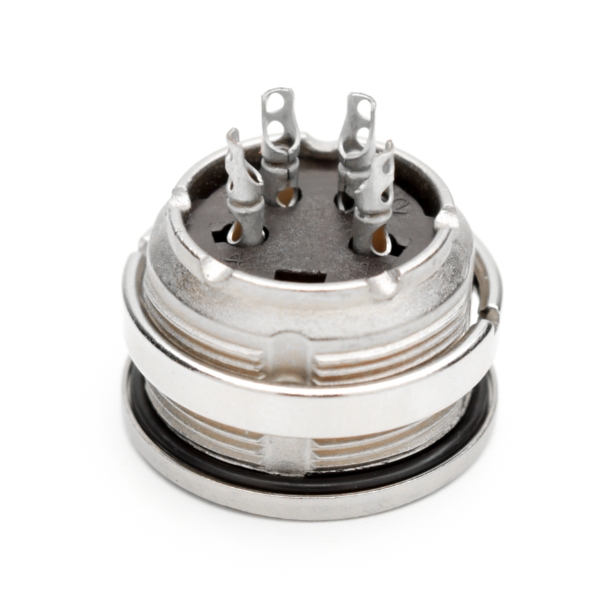

Product Display
