MX80B02PZ1A MX80 Series Compact Waterproof Automotive In-line ConnectorJAE
Short Description:
In-line Connector for Automotive Applications
USCAR-2 and LV214
ISO/JASO/EWCAP/VDA standard 0.64 mm tab size Terminal Position Assurance (TPA) on pin
IPX7 Waterproof
2 pos.
Pin connector
Product Detail
Product Tags
Ideal for waterproof automotive systems, this compact connector secures sensor, ECU, and lighting wiring in exposed zones. Its IP67 sealing, anti-vibration design, and secure lock prevent failures in doors, ADAS modules, or charging ports while withstanding fluids and temperature extremes."
Data Overview
| Manufacturer | JAE Electronics |
| Number of Positions | 2 Position |
| Pitch | 2.54 mm (0.1 in) |
| Gender | Plug (Male) |
| Mounting Style | Cable Mount / Free Hanging |
Contact Features
| Termination Style | Crimp |
| Contact Plating | Tin |
| Wire Gauge Min | 26 AWG |
| Wire Gauge Max | 17 AWG |
| Series | MX80 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

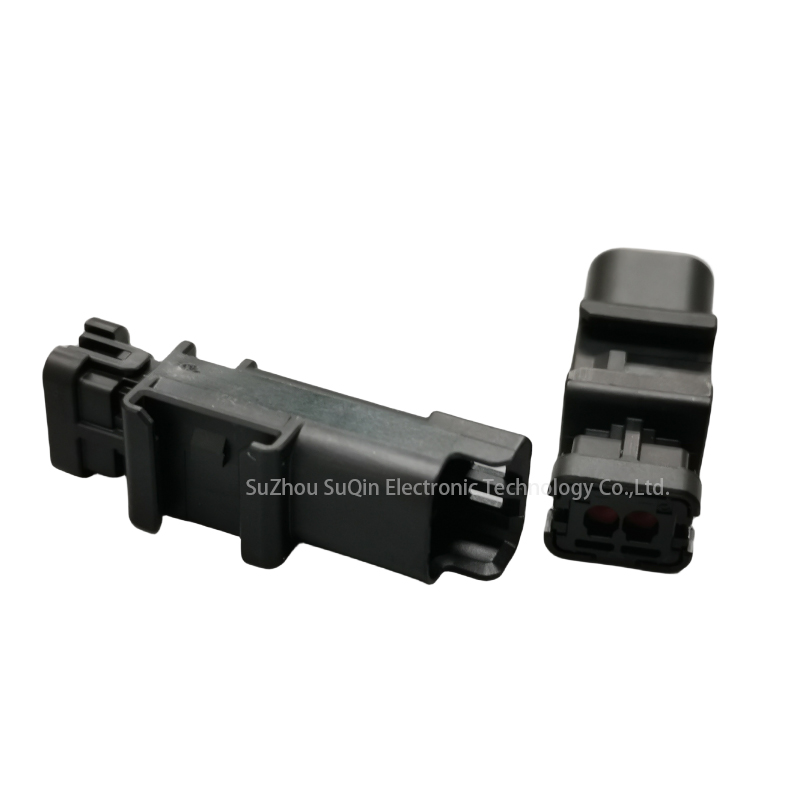

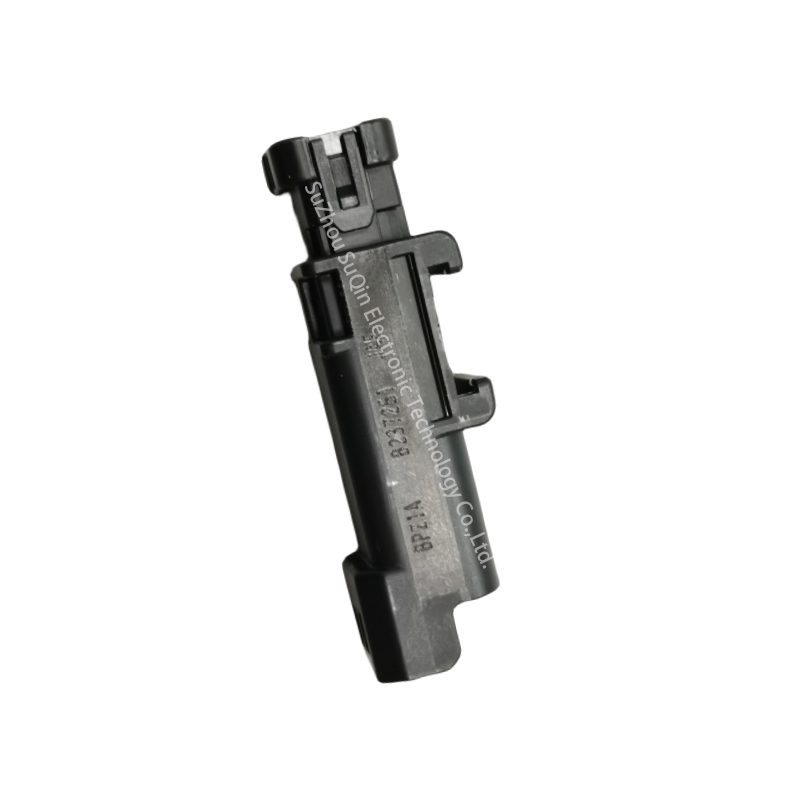

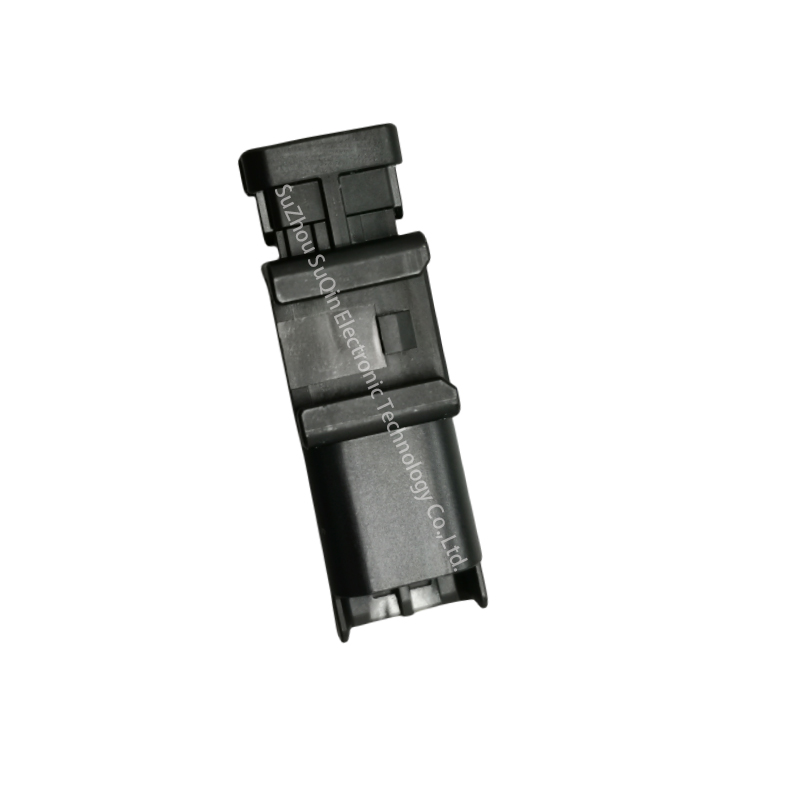

Product Display
